Tamiya The Grasshopper II (2017) RC Kit HC-58643
Brand: Tamiya
Part No: HC-58643
Backorder: Expected 9th October 2026
Request Stock NotificationFinance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Tamiya The Grasshopper II (2017)
Description

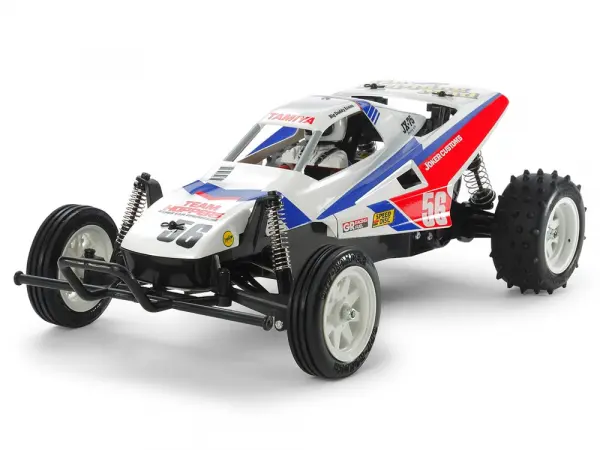

Tamiya The Grasshopper II (2017) HC-58643 is an off-road R/C assembly kit that brings back the distinctive design of the original 1988 model with useful updates. Its streamlined construction is suited to less experienced builders, while the rugged ABS bathtub chassis is designed for durable off-road driving. The kit includes a realistic injection-moulded polystyrene body, marking stickers and a driver figure for a recognisable finished appearance. Power comes from a Type 380 motor, and the rear-wheel-drive layout uses a fully enclosed gearbox with a built-in bevel differential to help deliver smoother cornering.
Off-Road Design
The front swing-axle suspension and rear rolling rigid suspension provide a straightforward, responsive setup. Lightweight plastic suspension arms, gearboxes and other chassis components help keep the model’s weight down, while the tough resin front bumper offers additional protection against impacts. One-piece wheels are fitted with grooved front tyres and spiked rear tyres for suitable traction on off-road surfaces. The chassis is also compatible with suggested separately sold Hop-Up Option parts, including Type 540 motors and CVA oil dampers.
Specifications
- Length: 400 mm
- Width: 223 mm
- Height: 136 mm
- Weight: 760 g excluding R/C equipment
- Wheelbase: 253 mm
- Rear-wheel drive with 14.7:1 gear ratio
Required to Complete
Additional radio-control equipment and power accessories are needed to operate this assembly kit. Select a compatible system and charger according to your preferred setup.
- 2-channel R/C system with ESC
- Four AA/UM3 batteries for the transmitter
- Battery pack and charger
Secured by Stripe
Tamiya The Grasshopper II (2017) Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
Hop II It!
This re-release version of The Grasshopper II R/C off-road car assembly kit features a number of updates while keeping largely to the design of the original released in 1988. It includes a highly realistic injection molded polystyrene resin body, marking stickers and a driver figure. The chassis' streamlined construction and use of a Type 380 motor makes the kit perfect for less experienced users. It is compatible with separately sold race spec Hop-Up Option parts such as Type 540 motors and CVA oil dampers.
A Durable Off-Road Chassis

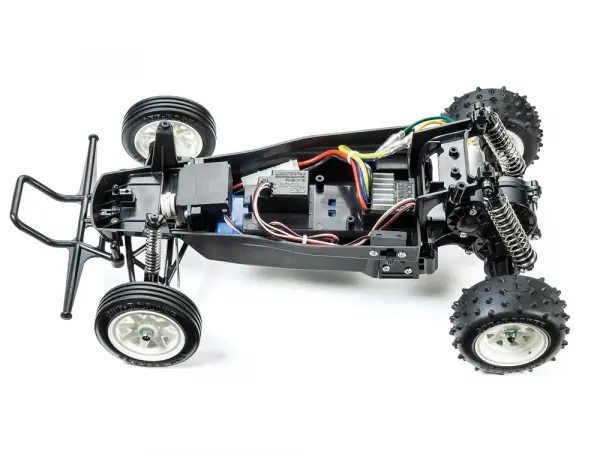

A rugged ABS resin chassis is more than up to the stresses of off-road driving, and features lightweight durable plastic suspension arms, gearboxes and so on - the result is a lightweight and durable unit. Front swing axle and rear rolling rigid suspension combine for a responsive drive, while a fully enclosed gearbox is integrated with the rear axle and has a built-in differential gear to aid smooth cornering. One-piece wheels are paired with front grooved and rear spike tires for solid performance.

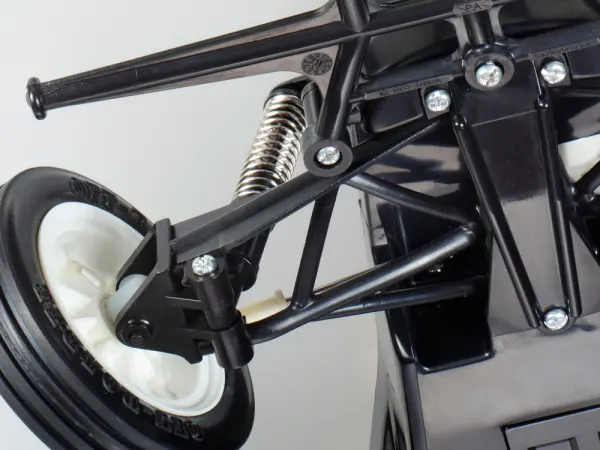

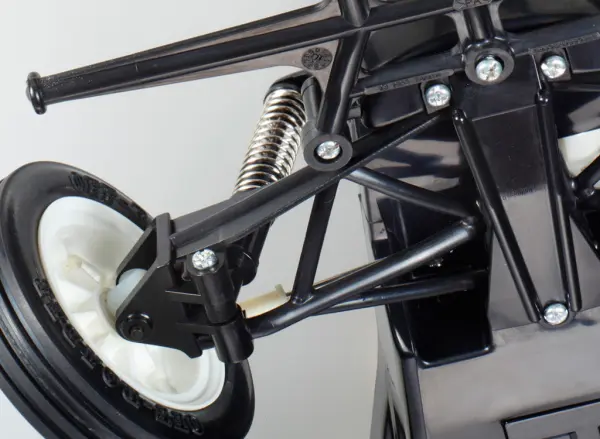

- At the front, the model is equipped with a swing arm setup and tough resin front bumper to help resist impacts.

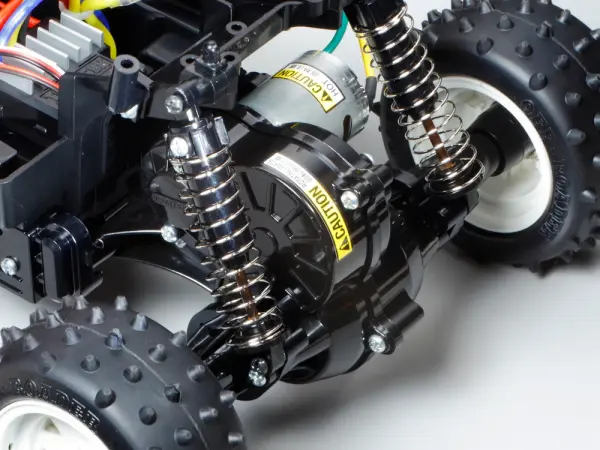

- Integrated with the rear axle, the fully enclosed gearbox has a built-in differential gear for smooth corners.
- A streamlined construction process means that you'll be ready to hit the road with this chassis in no time!
Specifications
笳臭ength: 400mm, Width: 223mm, Height: 136mm. Weight: 760g (excluding R/C equipment) 笳集heelbase: 253mm 笳週read (Front & Rear): 186mm 笳週ire Width/Diameter: 19mm/74mm (Front), 36mm/82mm (Rear) 笳就BS Bathtub Type Frame 笳蹴ear-Wheel Drive 笳-Bevel Differential 笳-Piece Steering Tie-Rod 笳輯uspension: Front Swing Axle, Rear Rolling Rigid 笳秀ear Ratio = 14.7:1 笳週ype 380 Motor
Separately Required Items
笳-Channel R/C System w/ESC 笳蹴6/AA/UM3 batteries for transmitter 笳州attery Pack & Charger
Key Info:
- Brand: Tamiya
- Part No: HC-58643
- Barcode: 4950344586431
- Scale: 1:10
- Vehicle Type: Buggy
- Power Source: Electric - Brushed
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
If you really wanted to...! However we'd recommend sticking with the stock wheels for the right look and to avoid any issues with clearance on the front hubs.
This item is only sold by Tamiya as a full kit.
We could build for you if required. Depending on spec this would likely be around £100 or so.
For more in depth queries, please contact us.
