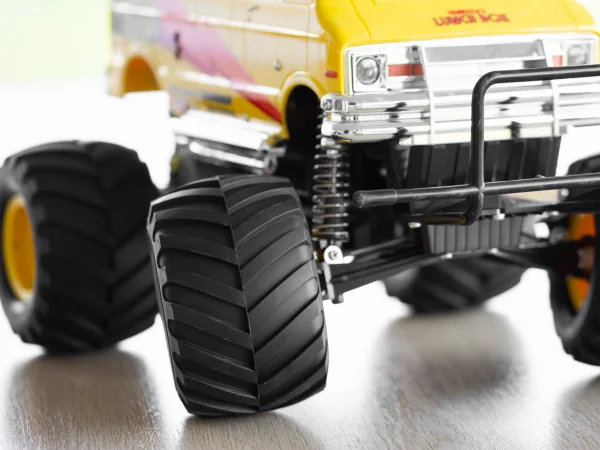

Tamiya Lunch Box Kit (HC-58347)
Brand: Tamiya
Part No: HC-58347
In Stock: Usually ships same day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Tamiya Lunch Box Kit
Description

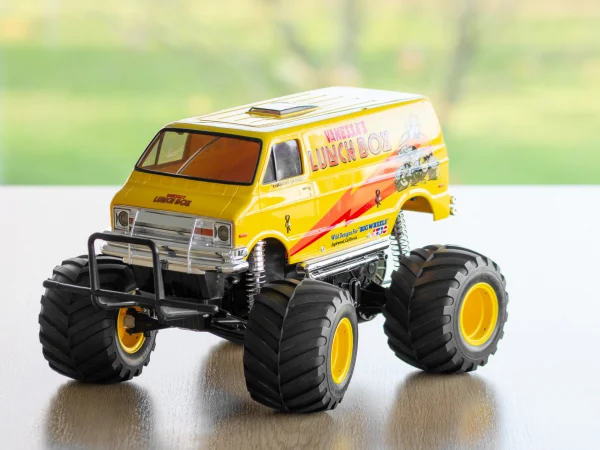

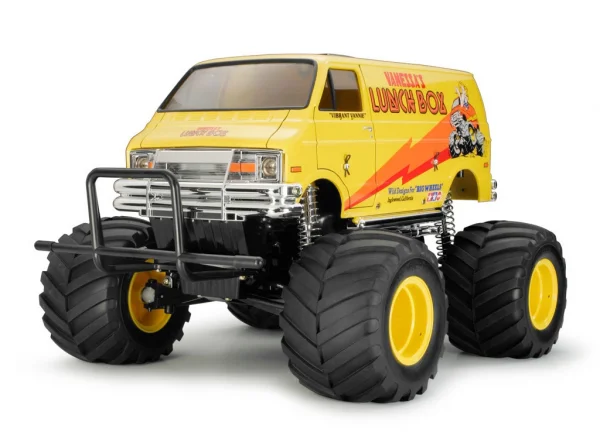

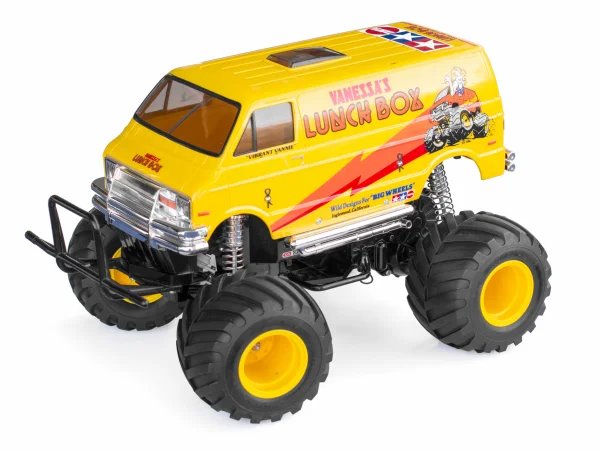

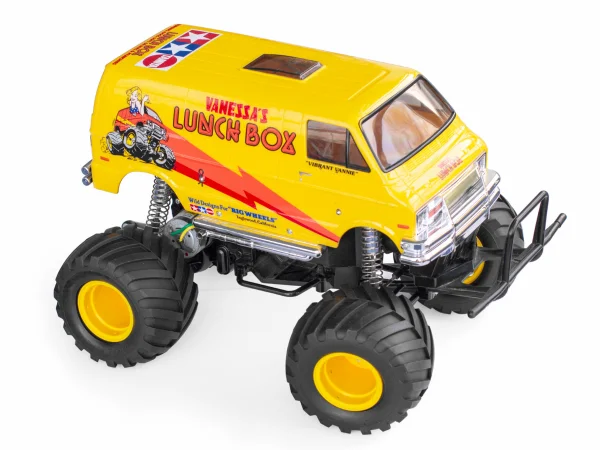

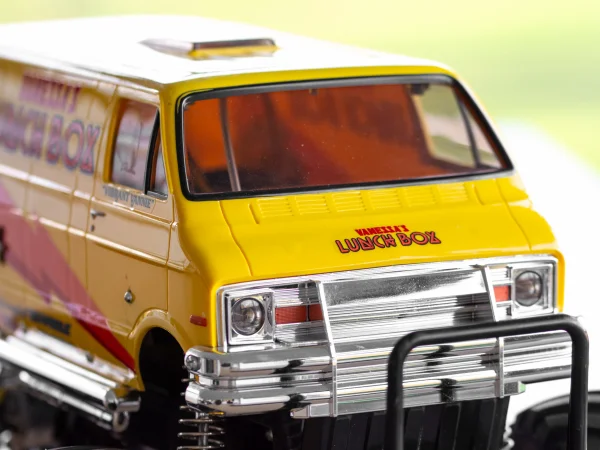

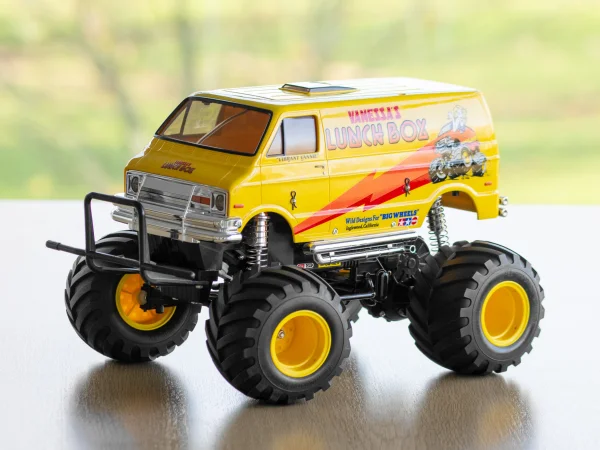

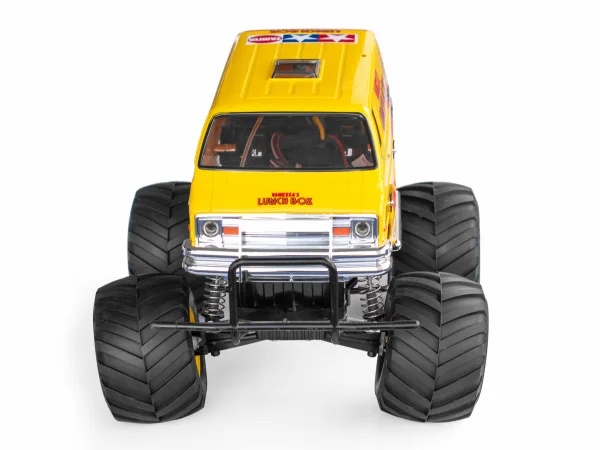

The Tamiya Lunch Box Kit (HC-58347) brings back a true 1980s classic, first released in 1987 and loved for its boxy van style and lively handling. This R/C assembly kit sits a bold minivan body over monster truck wheels for eye-catching looks and playful performance. A durable 2WD chassis, big 115mm tyres and a rear wheelie bar invite stunt-friendly running on a range of surfaces, while the sealed gearbox helps protect the drivetrain from dust and debris.
Built around an ABS box type frame, the Lunch Box features front independent swingarms and a rear rolling rigid suspension for simple, robust fun. A Type 540 motor and an electronic speed controller are included to get the chassis moving once your radio gear and battery are installed.
Key Features
- Rear-wheel 2WD with ABS box type frame

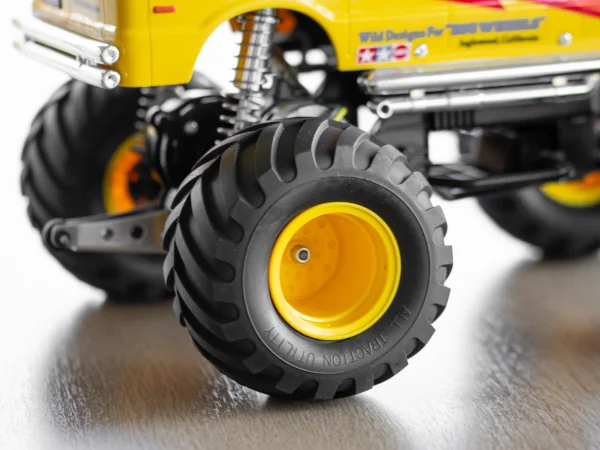

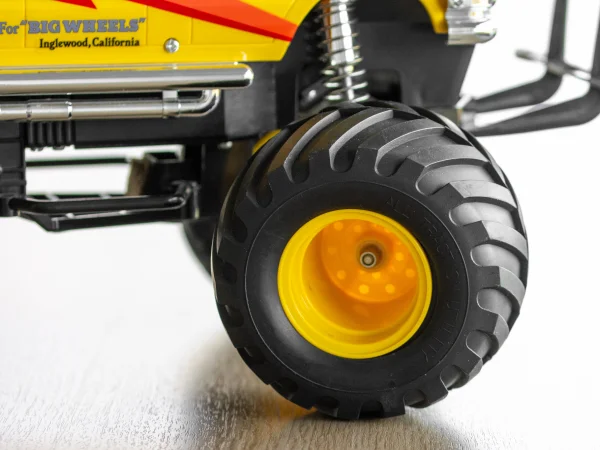

- Big 115mm diameter tyres for dynamic off-road running

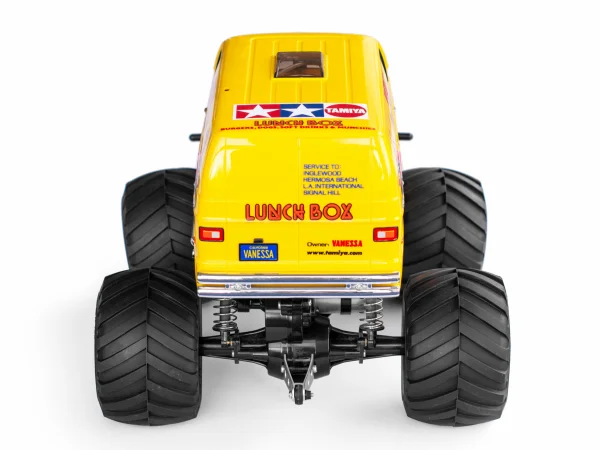

- Rear mounted wheelie bar for stunt driving
- Sealed gearbox protects the differential during off-road use
- Suspension: Independent swingarm (front), rolling rigid (rear)
- F/R friction dampers
- 3-bevel differentials
- Gear ratio: 14.7:1
- Type 540 motor
- Electronic speed controller (included)
Dimensions & Specs
- Length: 385mm, Width: 290mm, Height: 225mm
- Weight: 1,560g (not including R/C mechanism and battery)
- Wheelbase: 207mm
- Tread: 212mm (Front), 216mm (Rear)
- F/R tyre width/diameter: 71/115mm
Required To Complete
- Two-channel radio system
- Steering servo
- 7.2 volt battery with compatible charger
- Tamiya PS polycarbonate paint
Secured by Stripe
Tamiya Lunch Box Kit Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
2WD Chassis Mounted on Big 115mm Diameter Tyres

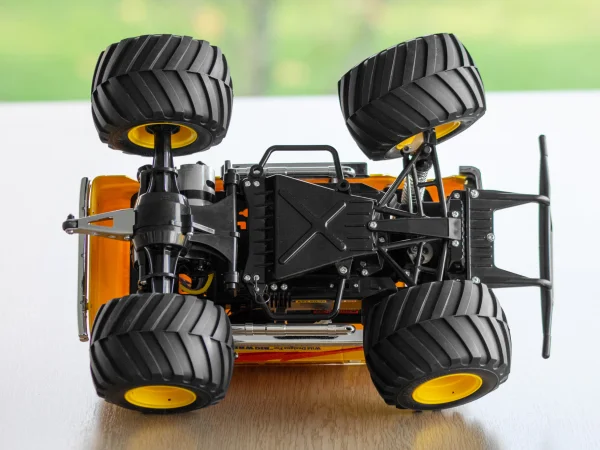

The durable and easy-to-assemble 2WD chassis employs a box type frame, and features front independent swingarms and a rear rolling rigid suspension. Big 115mm diameter tyres offer dynamic running on even the toughest of surfaces. A sealed gearbox protects the diff gear from dirt and sand during off-road driving. Rear mounted wheelie bar enables wild stunt driving.
About The Model
- Length: 385mm, Width: 290mm, Height: 225mm
- Weight: 1,560g (not including R/C mechanism and battery) Wheelbase: 207mm
- Tread: 212mm (Front), 216mm (Rear)
- F/R Tyre Width/Diameter: 71/115mm
- ABS Box Type Frame
- Rear-wheel 2WD
- Suspension: Independent Swingarm (Front), Rolling Rigid (Rear)
- F/R Friction Dampers
- 3-Bevel Differentials
- Gear Ratio: 14.7:1
- Type 540 Motor
- Electronic Speed Controller (Included)
Separately Required Items
- Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint
Key Info:
- Brand: Tamiya
- Part No: HC-58347
- Barcode: 4950344583478
- Scale: 1:12
- Power Source: Electric - Brushed
- Vehicle Type: Monster Truck
- Surface Type: Off Road
- Build Level: Unassembled (Kit)
Additional Categories:
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
This will have a standard Tamiya silver can motor and usually a basic carson ESC
yes you can just make sure the esc is in lipo mode.
Afraid not Paul sorry
Speed isn't quoted but we'd estimate around 20-25mph or so.
We'd go for the batteries as shown in our combo packs.
No, you'd want a can of TS paint to paint that eg HC-85034 yellow
Yes, you'd require basic modelling tools (screwdrivers, pliers, cutters, craft knife, etc). Paint would be recommended.
Yes, you could instead use item ET1100 instead of the wheel radio set.
