Tamiya Knight Hauler

Brand: Tamiya

Part No: HC-56314

£409.39 ~~RRP £459.99~~

Out Of Stock

Request Stock Notification

Pre-Order

Sport Package

Tamiya Truck Combo £950.98

This combo includes a multi channel radio system compatible with Tamiya Tractor units, along with the multi function control unit, steering servo and battery and charger

1 x Tamiya MFC-01 Tractor Unit Multi Function Control Unit - US
HC-56511

2 x Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
SAV-SW0231MG+

1 x EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
SCH-EP3000S

1 x Carson Reflex Stick Multi Pro - 14 Channel Truck Radio
HC-C501003

1 x Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
ORI30198DNS

Saves £110.77 over RRP

Request Price Match Ask a Question Write a Review Show Spares and Option Parts

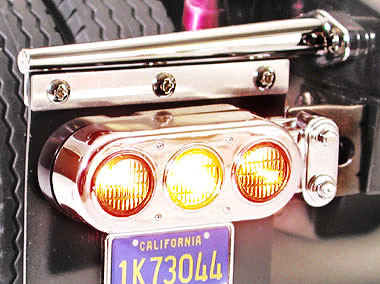

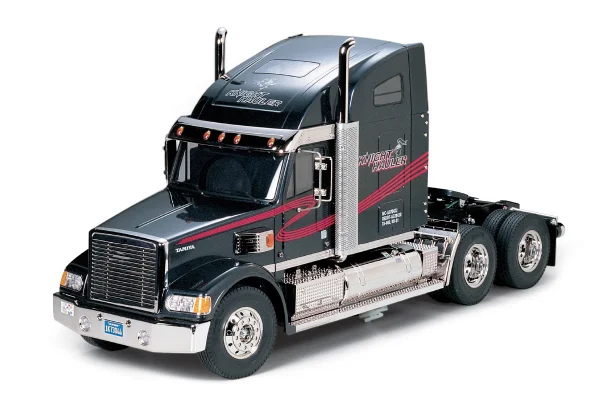

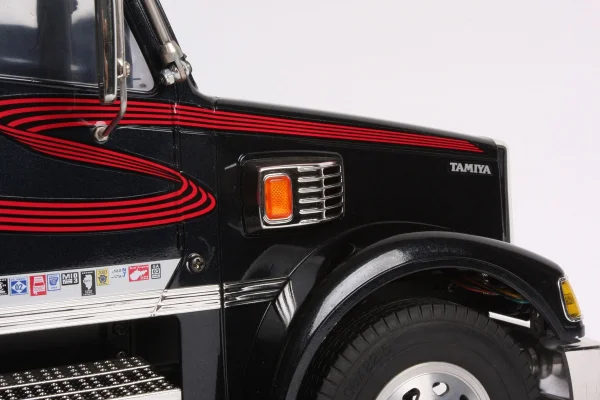

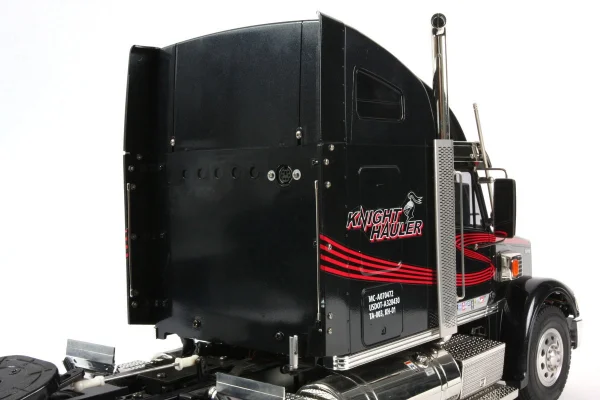

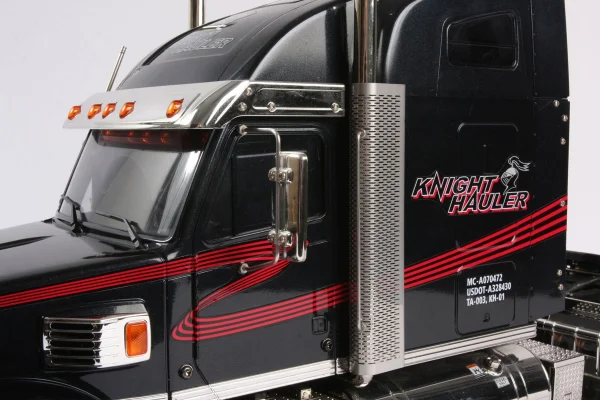

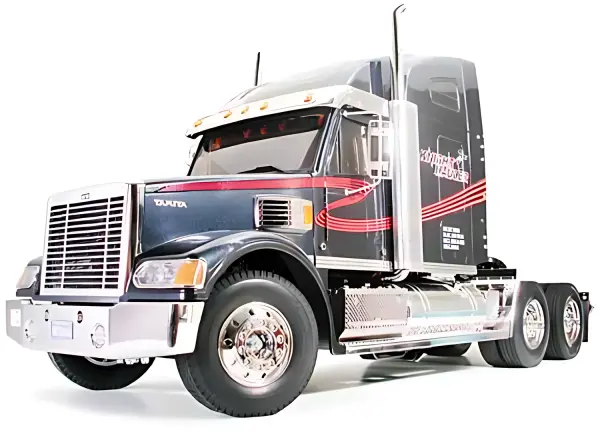

The Tamiya Knight Hauler (56314) is a 1/14 scale R/C tractor truck kit featuring an originally designed body with a detailed hood, large roof spoiler and interior. Clear orange light parts and metal-plated grille, tanks, exhausts and steps add to the realistic finish. Supplied as a build kit with stickers and an electric 540 motor, this premium model delivers authentic big-rig style on a robust ladder frame chassis with rigid axles and metal leaf springs. A 7.2V battery pack and R/C system are sold separately.

3-Speed Transmission Control

The 3-gear transmission can be operated via your transmitter for on-the-fly shifting. Using the left stick: while pushing forward, move the stick left for low, middle for medium or right for high. You can also start in any of these speeds by setting the stick position before moving forward.

Key Features

Originally designed 1/14 scale tractor truck body with detailed interior

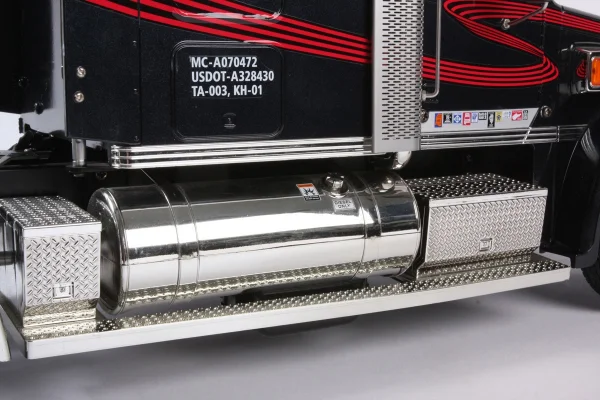

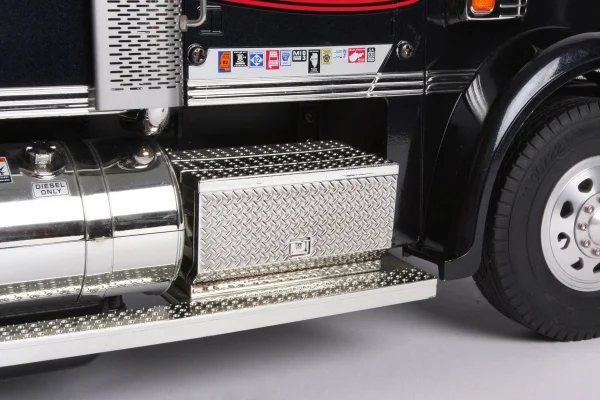

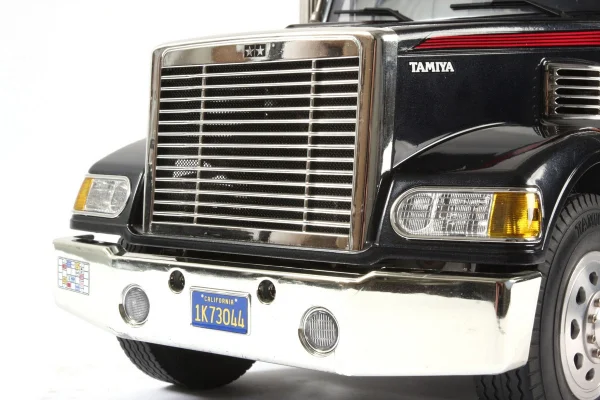

Metal-plated grille, tank, exhaust and steps for a realistic finish

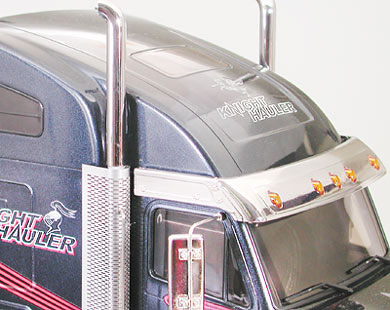

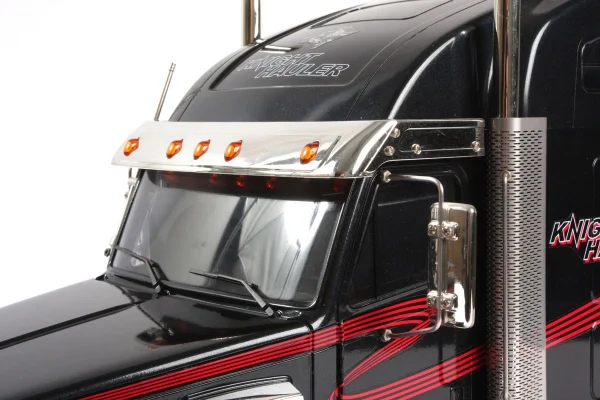

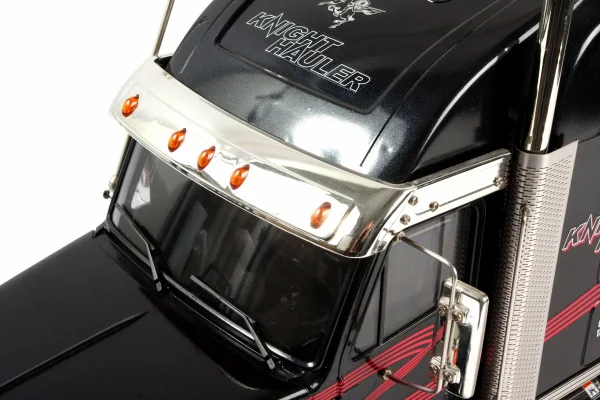

Clear orange light parts and large roof spoiler
Aluminium and polycarbonate plastic chassis components

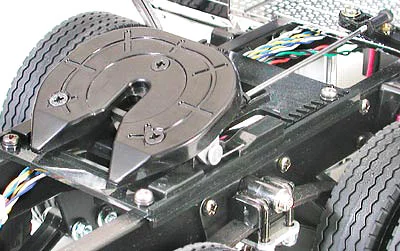

Ladder-type frame with front and rear rigid axles

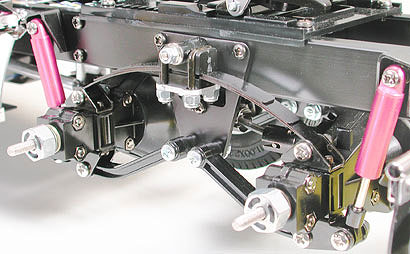

Metal leaf springs and front/rear aluminium dummy dampers
2-axle drivetrain with bevel gear differentials (front and rear)
3-speed transmission operated via the transmitter
Styrene (plastic) body

Specifications

Total length: 630mm
Total width: 186mm
Ground clearance: 19mm
Weight (fully equipped): about 3.1kg (without Multi-Function Unit)
Wheelbase: 476mm
Tread (F/R): 156/138mm
Tyre width (F/R): 22mm
Tyre diameter (F/R): 88mm
Chassis material: Aluminium and polycarbonate plastic
Chassis type: Ladder frame
Suspension: Front and rear rigid axle with metal leaf springs
Caster angle (F/R): 0°/0°
Camber angle (F/R): 0°/0°
Toe angle (F/R): 0°/0°
Dampers: Front/rear aluminium dummy dampers
Drivetrain: 2-axle
Transmission: 3-gear, shiftable via transmitter
Gear ratios: 1st 32.49:1, 2nd 17.76:1, 3rd 10.66:1
Differentials: Front/rear bevel gear
Motor: Electric 540

What’s Included

Unassembled Knight Hauler kit (1/14 scale)
Electric 540 motor
Sticker sheet

Required to Complete

4-channel R/C system is recommended for potential future options and 3-speed operation
7.2V battery and compatible charger
Electronic Speed Controller (ESC), unless using MFC Unit #56511

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

About the Tractor Truck Knight Hauler This 1/14 scale R/C Tractor Trucks Item features an originally designed truck body. Hood, large roof spoiler, interior, and lights (clear orange parts), which have been artistically rendered in exquisite detail. Grill, tank, exhaust and steps have been beautifully rendered with metal plated parts. Kit includes stickers and 540 motor. 7.2V battery pack and R/C system are sold separately.

Using the left stick, you can switch gears on the fly. While pushing forward move stick left (low), Middle (med) or right (high). You can also start off in one of those speeds by being in that position before pressing forward.

Specs and Features

Total length: 630mm
Total width: 186mm
Clearance: 19mm
Weight Fully-Equipped: about 3,1kg (without multi function unit)
Wheelbase: 476mm
Tread F/R: 156/138mm
Tire Width: F/R both 22mm
Tire Diameter: F/R both 88mm
Chassis Material: Aluminum and polycarbonate plastic
Chassis Shape: Ladder Type Frame
Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs
Caster Angle-F/R: 0deg/0deg
Camber Angle-F/R: 0deg/0deg
Toe Angle-F/R: 0deg/0deg
Damper: F/R Aluminum Dummy Dampers
Drive train: 2-axle
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Diff. gear system: F/R Bevel Gear Diff
Engine: Electric 540
Body Type: Styrene(plastic)

Required:
4-channel system is recommended for potential future options and 3-speed operation.
7.2V battery and charger
ESC (unless you are using MFC Unit #56511)

Key Info:

Brand: Tamiya
Part No: HC-56314
Barcode: 4950344563142
Scale: 1:14
Power Source: Electric - Brushed
Vehicle Type: Lorries / Trucks
Surface Type: On Road
Build Level: Unassembled (Kit)
