Tamiya M-07R Chassis Kit (HC-47520)
Brand: Tamiya
Part No: HC-47520
In Stock: Usually ships same day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Tamiya M-07R Chassis Kit
Description

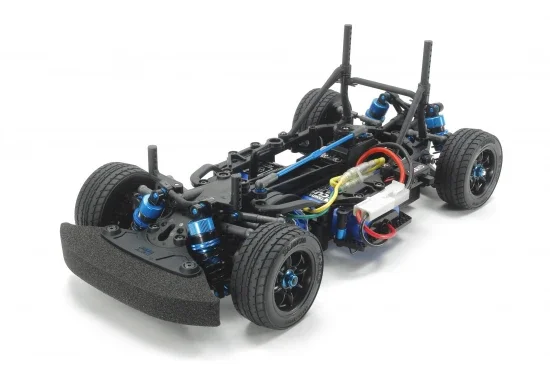

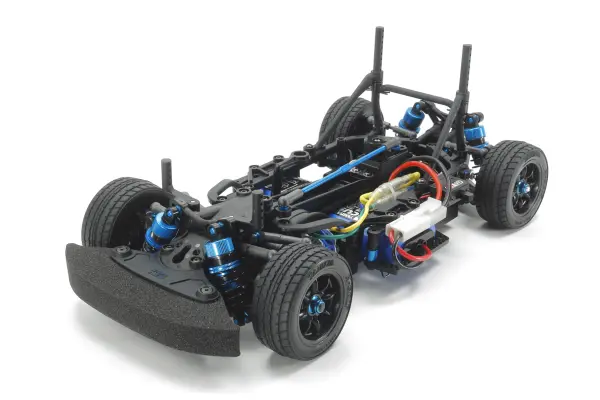

The Tamiya M-07R Chassis Kit (HC-47520) elevates the proven M-07 Concept with Tamiya Racing Factory (TRF) hand-picked option parts for a race-focused front-wheel drive platform. A high-traction lower deck works with carbon fibre battery holders, TRF special dampers and a rear stabiliser to deliver super grip, even on low-traction surfaces. Reinforced uprights and suspension arms add durability, while the efficient drivetrain features an oil-filled gear differential, double-cardan drive shafts, aluminium joint cups, full ball bearings and a hard-coated aluminium pinion gear.
With selectable 225mm or 239mm wheelbase, a rigid monocoque frame, 3-piece steering tie-rod and 4-wheel independent double wishbone suspension, the M-07R provides precise handling and fine-tuning potential. The default gear ratio is 5.78:1 using the included 20T pinion, with additional ratios available via separately sold pinion gears.
Featured Components

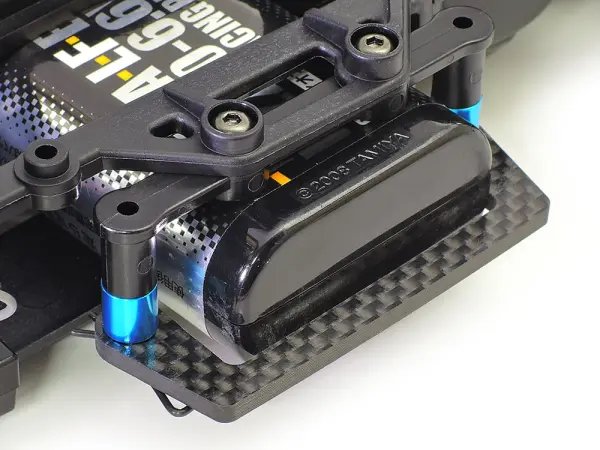

- Carbon fibre battery holder (dedicated component)
- Rear stabilizer

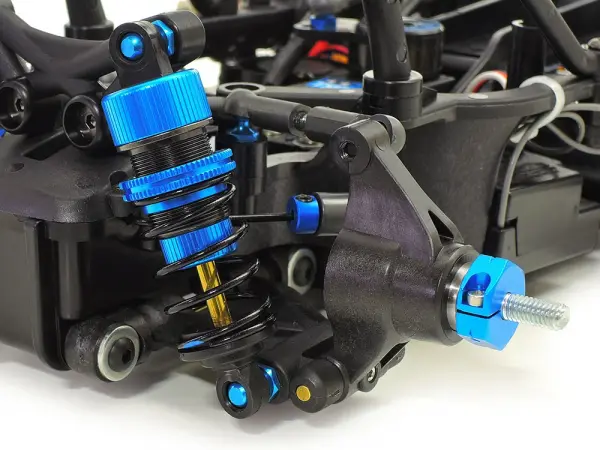

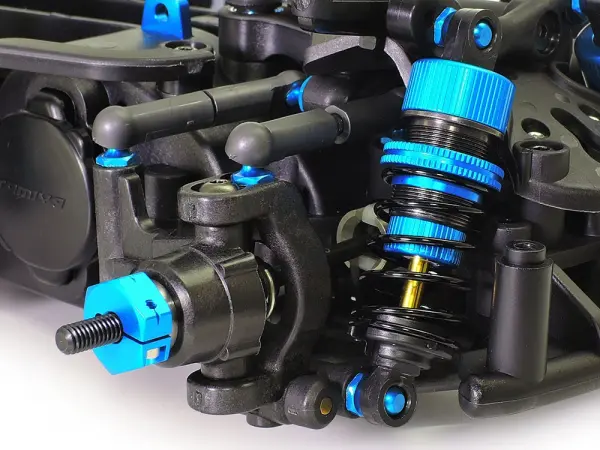

- TRF special dampers (hard black coating)
- Double-cardan drive shafts (33mm)
- High-traction lower deck
- Reinforced C parts (uprights)
- Reinforced D parts (suspension arms)
- 3x106mm aluminium turnbuckle shafts
- Aluminium joint cups
- Clamp-type aluminium wheel hubs (5mm)
- 2.6mm diameter titanium-coated shafts
- 46mm titanium-coated shafts
- 06 module aluminium pinion gear (20T)
- Full ball bearings
- Hi-torque servo saver (black)
Specifications
- Length: 332mm (including bumper)
- Width: 164mm
- Wheelbase: 225mm or 239mm (Selectable)
- Monocoque Frame
- Front-Midship Motor, Front-Wheel Drive
- Oil-Filled Gear Differential
- 3-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- TRF Special Dampers
- Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
- Requires an Electronic Speed Controller (sold separately)
Required To Complete
- Compatible body
- 2-channel R/C system with ESC
- R6/AA/UM3 batteries for transmitter
- Type 540 motor
- Battery pack & charger
Secured by Stripe
Tamiya M-07R Chassis Kit Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fibre battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminium cup joints, hard-coated aluminium pinion gear and more.
Tamiya M-07R Featured Components
- Carbon fibre battery holder (dedicated component)
- Rear stabilizer
- TRF special dampers (hard black coating)
- Double-cardan drive shafts (33mm)
- High-traction lower deck
- Reinforced C parts (uprights)
- Reinforced D parts (suspension arms)
- 3x106mm aluminium turnbuckle shafts
- Aluminium joint cups
- Clamp-type aluminium wheel hubs (5mm)
- 2.6mm diameter titanium-coated shafts
- 46mm titanium-coated shafts
- 06 module aluminium pinion gear (20T)
- Full ball bearings
- Hi-torque servo saver (black)
Tamiya M-07R Chassis Kit Specifications
- Length: 332mm (including bumper)
- Width: 164mm
- Wheelbase: 225mm or 239mm (Selectable)
- Monocoque Frame
- Front-Midship Motor, Front-Wheel Drive
- Oil-Filled Gear Differential
- 3-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- TRF Special Dampers
- Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
- Requires an Electronic Speed Controller (sold separately)
Separately Required Items
- Compatible body
- 2-Channel R/C System w/ESC
- R6/AA/UM3 batteries for transmitter
- Type 540 Motor
- Battery Pack & Charger
Key Info:
- Brand: Tamiya
- Part No: HC-47520
- Barcode: 4950344475209
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
