Tamiya Fiat Abarth 1000 TCR MB-01 Chassis – HC-58721
Brand: Tamiya
Part No: HC-58721
Shadow Stock: Usually ships next day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
2× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)- 1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
Frequently Bought With
Other items customers often buy with the Tamiya Fiat Abarth 1000 TCR Berlina Corse (MB01)
Description

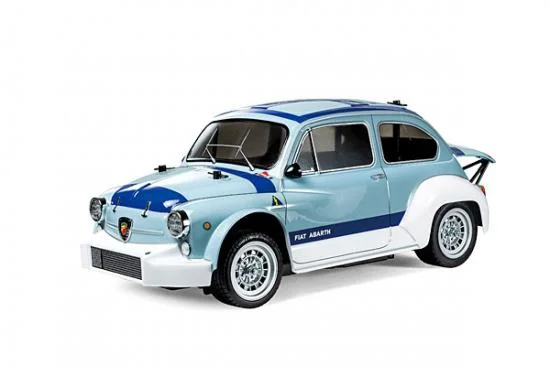

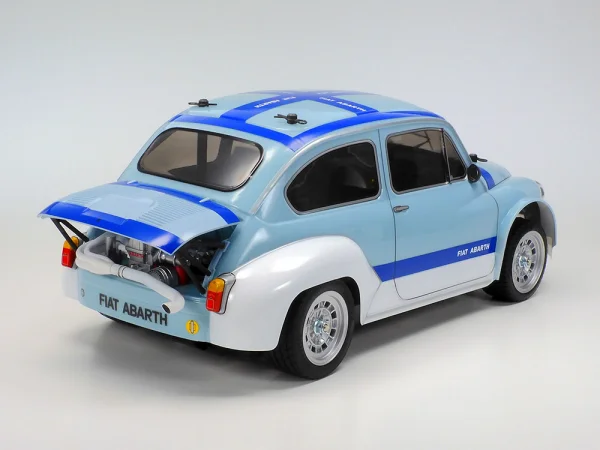

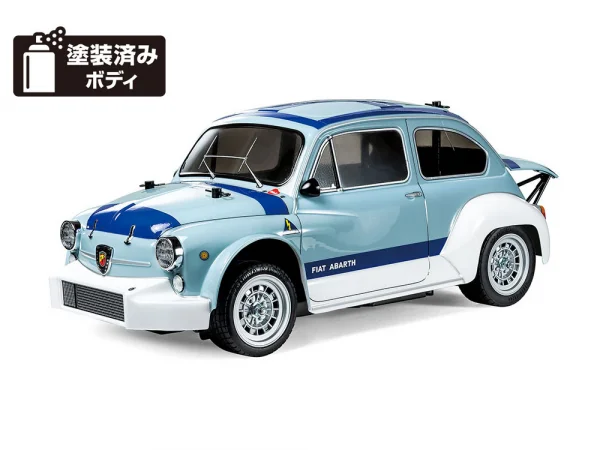

The Tamiya Fiat Abarth 1000 TCR Berlina Corse pairs an iconic compact racer with the all-new MB-01 platform. Part number HC-58721 delivers a versatile 2WD chassis offering three wheelbase options and the choice of front- or rear-wheel drive. For this Fiat body, the MB-01 uses the long wheelbase to capture the stance and proportions of the original.
Designed for ease of assembly and maintenance, the MB-01 builds on the heritage of Tamiya’s M-chassis line with modular components, robust suspension, and thoughtful gearing. It’s a flexible base for street or club use, with suggested compatibility for many popular Tamiya hop-ups.

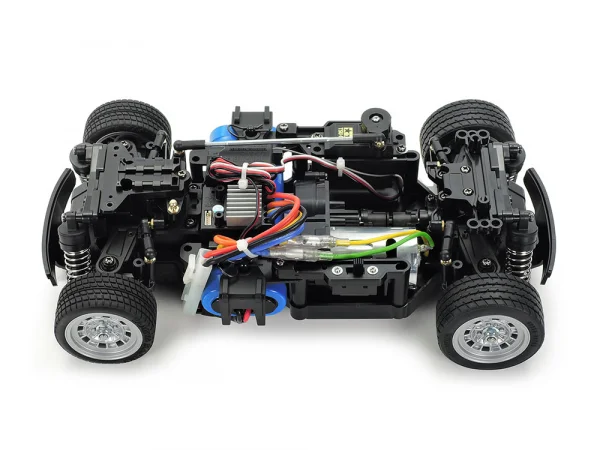

MB-01 Chassis Highlights
- Dimensions: Length 322mm, width 163mm. Wheelbase options: 209mm (S) / 224mm (M) / 239mm (L). The Fiat Abarth uses the long wheelbase (239mm).
- Multi-purpose 2WD chassis with six total setups: three wheelbases and either front- or rear-wheel drive.

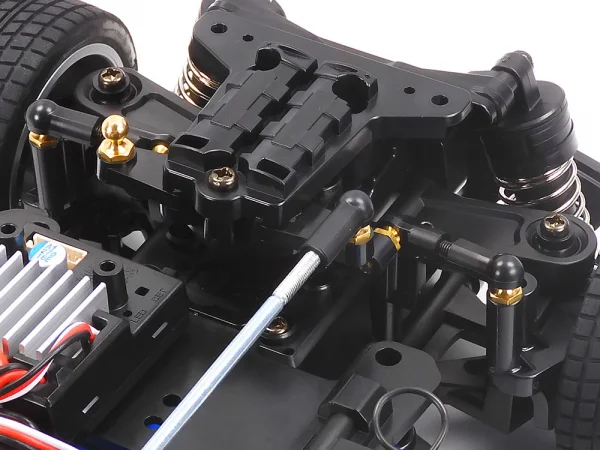

- Switch FWD/RWD by reversing final gear and steering linkage orientation; choose low or high motor position when running RWD.

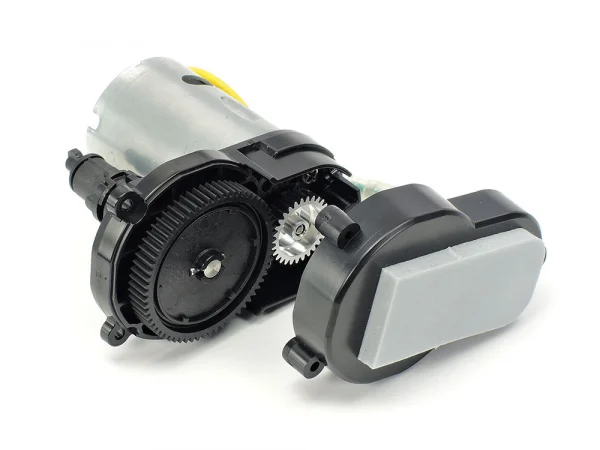

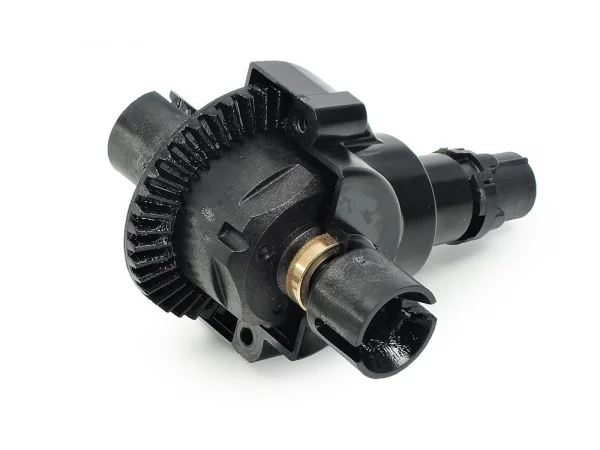

- Unitised motor mount and final gear sections for easy assembly and effective maintenance.

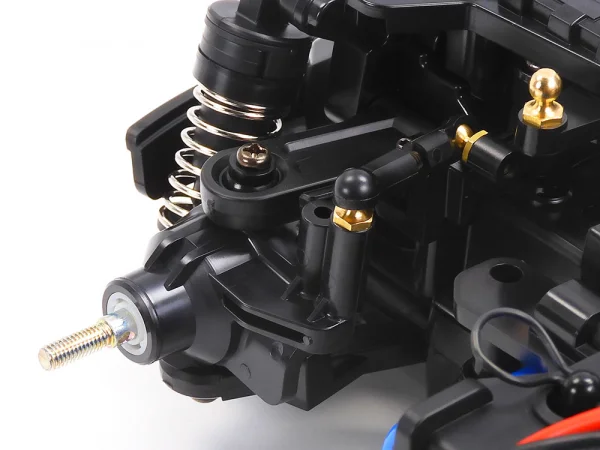

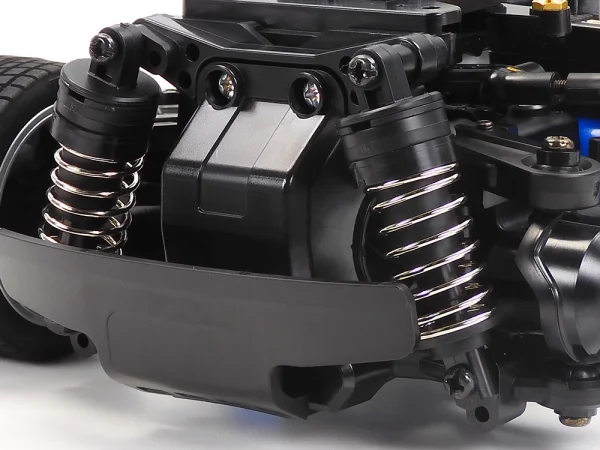

- 4-wheel double wishbone suspension with friction dampers.
- While 2WD, multi-link suspension is compatible with tyres featuring the same compound and rear tyre toe-in as 4WD models.
- Gear ratio: 5.83:1 when using the kit-standard 29T pinion gear.

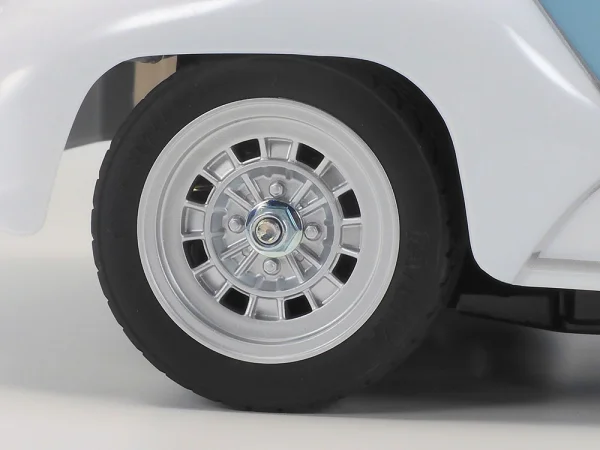

- Authentic stance with 55mm diameter front tyres and 60mm diameter rear tyres.
- Suggested compatibility with many Tamiya M-chassis and TT-chassis Hop-Up Option parts for fine-tuning.
What’s Included
- 540 motor

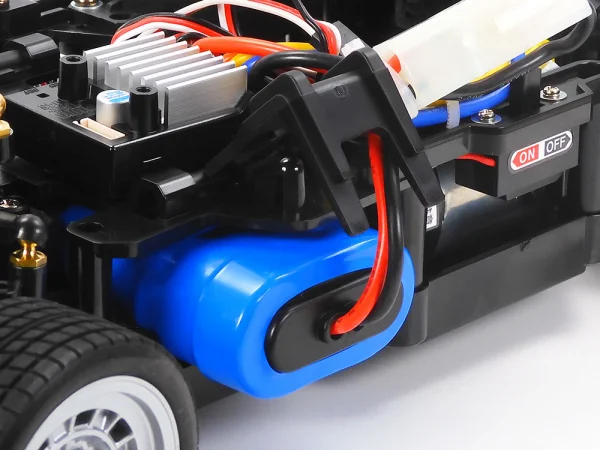

- Electronic speed controller (ESC)
Required To Complete
- 2-channel radio system
- 7.2–7.4V battery
- Compatible charger
- Tamiya PS polycarbonate paint
Secured by Stripe
Tamiya Fiat Abarth 1000 TCR Berlina Corse (MB01) Manuals & Guides
How-To Guides & Articles
Specifications
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!
The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.
MB-01 Chassis Features
- Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth uses the LONG wheelbase setup).
- The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
- Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
- Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
- The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
- While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
- Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
- Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
- Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
- Includes 540 motor and ESC.
- Requires 2-channel radio, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.
Key Info:
- Brand: Tamiya
- Part No: HC-58721
- Barcode: 4950344587216
- Scale: 1:10
- Power Source: Electric - Brushed
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
