Tamiya Lancia Delta Integrale (TT-02)

Brand: Tamiya

Part No: HC-58570

£129.00 ~~RRP £150.00~~

In Stock: Usually ships same day

Collect Instore

Sport Package

Tamiya Kit Combo - Sport £213.48

Add a radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.

1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060

1 x EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
SCH-EP3000S

1 x Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
HD-1812MG

1 x Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
ORI30198DNS

Saves £30.39 over RRP

Pro Package

Tamiya Kit Combo - Pro £246.76

Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.

2 x HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
HPI-101939

1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060

1 x Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
VZ0025

1 x eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
ET0208

1 x Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
SAV-SW0231MG+

Saves £36.18 over RRP

Request Price Match Ask a Question Write a Review Show Spares and Option Parts

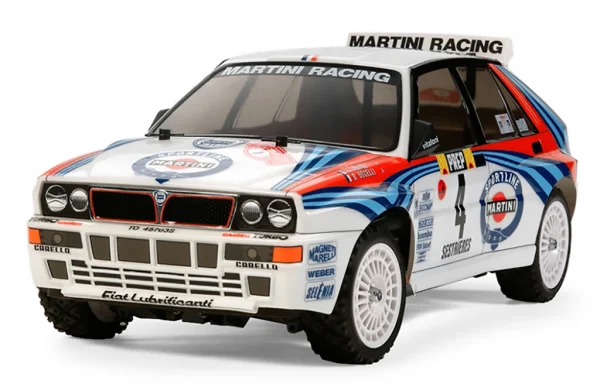

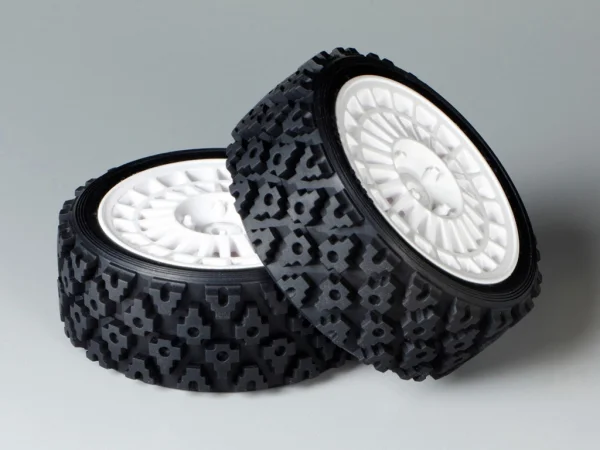

The Tamiya Lancia Delta Integrale (TT-02) captures the 1992 World Rally Championship winner in 1/10 scale. Its detailed polycarbonate body recreates the angular 4-door hatchback, including blistered fenders, bonnet bulge, multiple front air intakes, and separate moulded parts for the side mirrors and roof spoiler. Stickers are included to reproduce the classic Martini Racing stripes, and rally block tyres are supplied for confident running on road or flat dirt.

Adaptable TT-02 Chassis

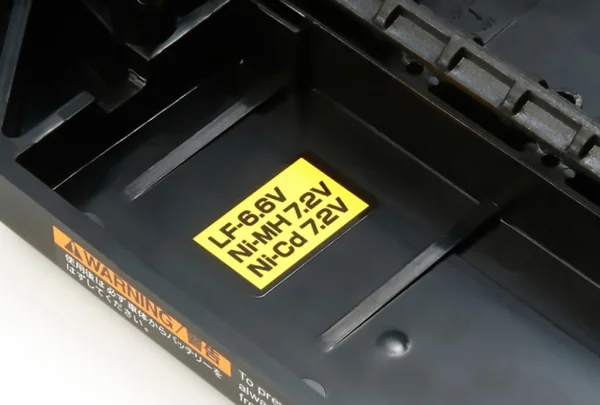

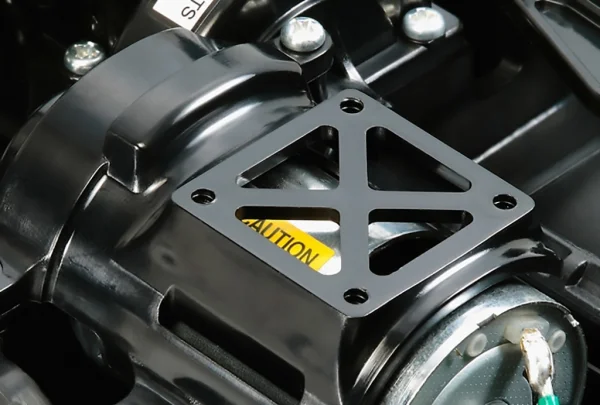

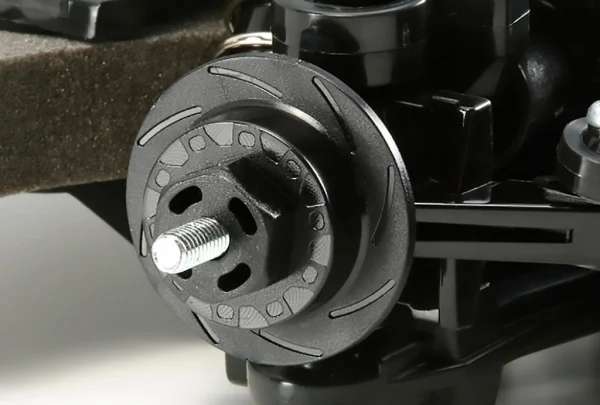

The shaft-driven 4WD TT-02 chassis uses a longitudinal layout with the battery on the left and motor on the right for balanced handling. Identical left/right suspension arms and uprights simplify assembly, while the easy-to-maintain gearboxes support a wide gearing range. The chassis offers two wheelbases, two ground clearance settings (the higher position is used with the Lancia Delta Integrale), two tread set-ups, and ten possible gear ratios. Visual touches include brake disc-shaped wheel hubs and a stylish front bumper support.

About The Model

Length: 407mm, Width: 186mm, Height: 159mm
Wheelbase: 257mm
Tyre Width/Diameter (Front and Rear): 27/69mm
Bathtub-type frame
Shaft driven 4WD

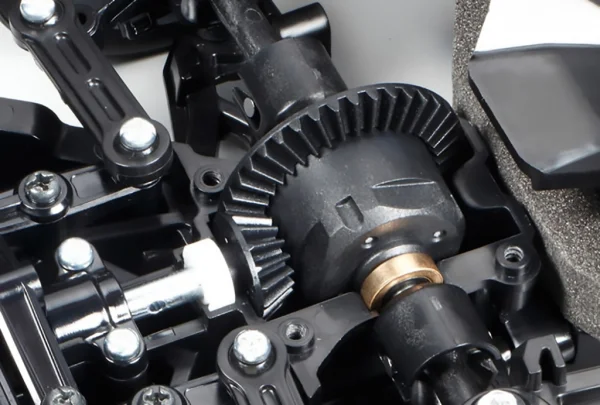

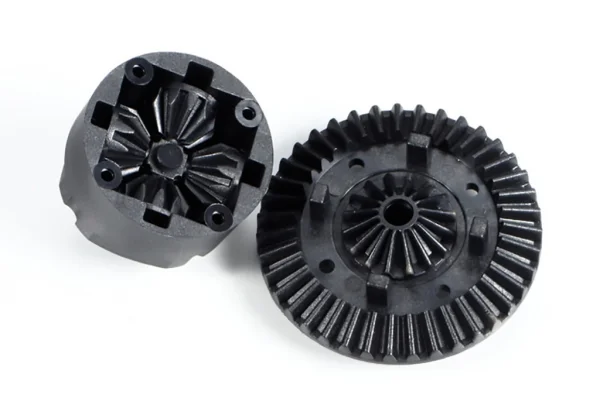

Front/rear 4-bevel resin differentials

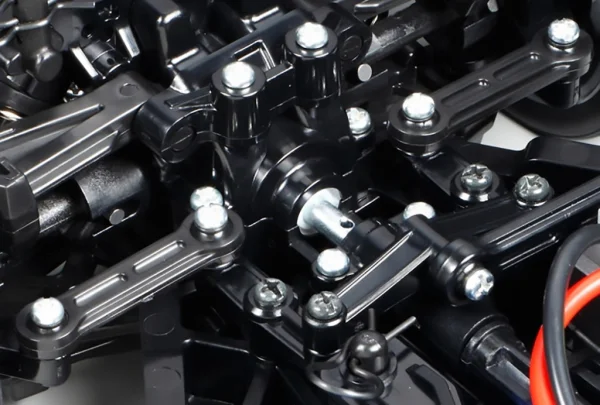

3-piece steering tie-rod

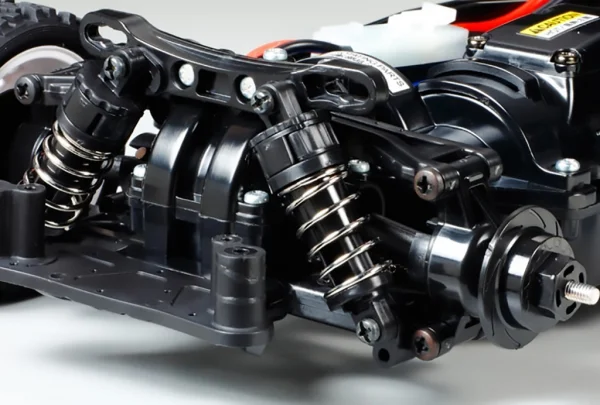

4-wheel double wishbone suspension
Front/rear friction dampers
Gear ratio = 9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Type 540 motor

Separately Required Items

Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

This is a 1/10 R/C model assembly kit of the Lancia Delta Integrale, winner of the 1992 World Rally Championship. The polycarbonate body recreates the look of the angular 4-door hatchback, complete with front/rear blister fenders and down to details such as the bulge on the front bonnet and the numerous air intakes in the front bumper. The kit also includes separate parts to depict the side mirrors and roof spoiler. Stickers recreate the markings, including the famous Martini Racing stripes. The model runs on the shaft driven 4WD TT-02 chassis, and comes complete with rally block tyres to allow it to drive on road or flat dirt.

Adaptable TT-02 Chassis
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings (the higher position is used with the Lancia Delta Integrale) and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

About The Model

Length: 407mm, Width: 186mm, Height: 159mm
Wheelbase: 257mm　
Tyre Width/Diameter (Front and Rear): 27/69mm
Bathtub-type Frame
Shaft Driven 4WD
Front/Rear 4-Bevel Resin Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Front/Rear Friction Dampers
Gear Ratio = 9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Type 540 Motor

Separately Required Items

Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

Key Info:

Brand: Tamiya
Part No: HC-58570
Barcode: 4950344065479
Scale: 1:10
Power Source: Electric - Brushed
Surface Type: On Road
Vehicle Type: Touring / Rally Car
Build Level: Unassembled (Kit)

Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

I have a Dx8 spectrum transmitter can supply receivers for Tamiya car kits

David / 24th September 2023

For the DX8 you need a specific flight receiver, now there is nothing stopping you fitting the air receiver to the car, but we would not advise it, as you will have no return spring in the throttle on the transmitter.

Si @ Wheelspin Models

Hi, what width tyres fit the supplied wheels?

Andrew Barnes / 20th September 2021

They are 26mm wheels

Si @ Wheelspin Models

Does the esc supplied with the kit allow the use of lipo batteries or is it nimh only? Thanks

Jason Dixon / 28th January 2021

These are NiMh only

Ben @ Wheelspin Models

Does this come stock with bearings rather than bushings?

William Smith / 19th September 2020

No these will be standard Tamiya bushs

Ben @ Wheelspin Models

what brushless combo would you recommend for this?

William Smith / 19th September 2020

Something like say HW38010204 would be ideal

Ben @ Wheelspin Models

What screwdriver set would you recommend for this build

Will / 15th September 2020

Something like FAST607 would be a good starter tool ste

Ben @ Wheelspin Models

Hi does this come with everything thing to make it run including a transmitter , receiver , esc and motor ? Thanks guys

Sam / 3rd August 2020

No - it's a Tamiya kit so requires radio gear, battery, charger, paint, etc

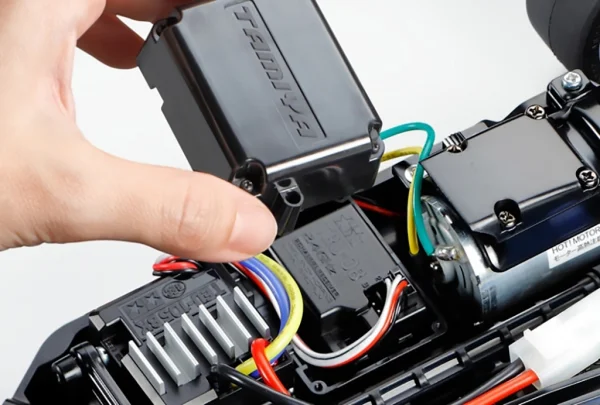

It includes a motor and ESC though.

Check our combo packs for suggested items to complete

Ben @ Wheelspin Models
