Tamiya Comical Hotshot (GF-01CB)

Wonder Shot!
This assembly kit creates the Comical Hotshot, an exciting off-road buggy inspired by that Tamiya legend the Hotshot. It comes with a stylish polycarbonate body pre-painted in red and with body mount holes already made; depictions of megaphone rear exhausts add a nice touch. The front bumper has space for the installation of four separately-sold LEDs. The GF-01CB chassis employs highly capable gear-driven 4WD and is paired with ST block bubble tires - take it for a spin on- or off-road and you'll have a whale of a time!

GF-01: Seriously Stable 4WD
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Sealed gearboxes protect from dust and debris and are integrated into the frame, while the built-in differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension with CVA oil dampers and a two-piece tie rod steering setup with the servo on the left for excellent response. Two-piece wheels are joined by ST block bubble tires, and a range of Hop-Up Option parts are available to hop-up your model.

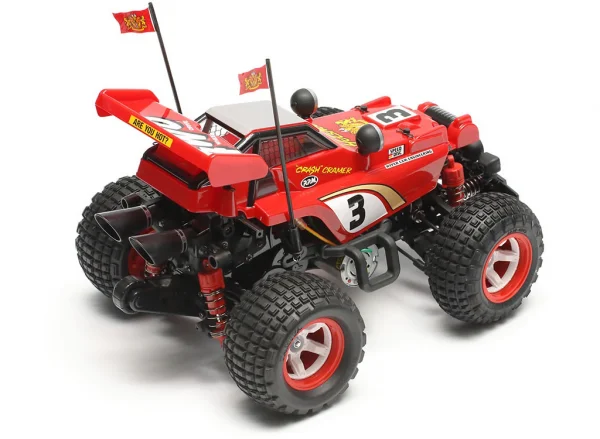

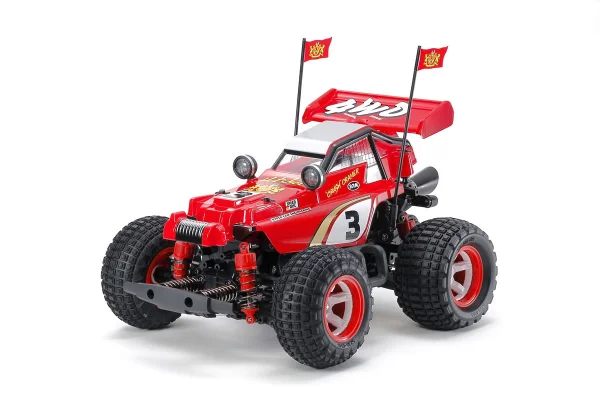

- The legendary Hotshot body is reinterpreted in polycarbonate, and makes a great pairing with the oversized tires.

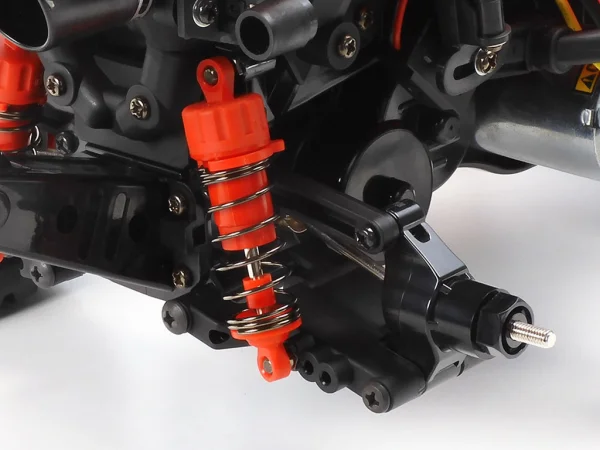

- This image gives a closer look at the front double wishbone suspension, which employs high performance CVA oil dampers.

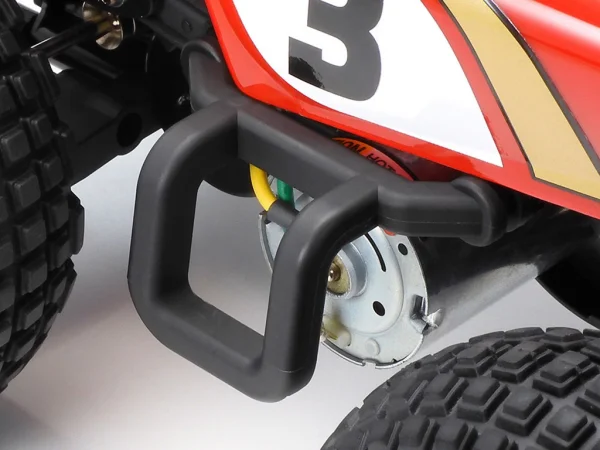

- Positioned behind a side guard in the center of the monocoque chassis, the motor powers the model via a gear-driven setup.

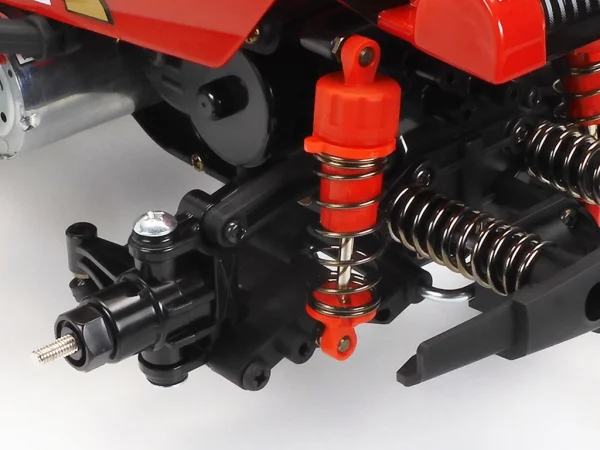

- Left: Wide tread gives superb stability, even when wheelie-ing. Like the front, the rear setup is also double-wishbone with CVA dampers.

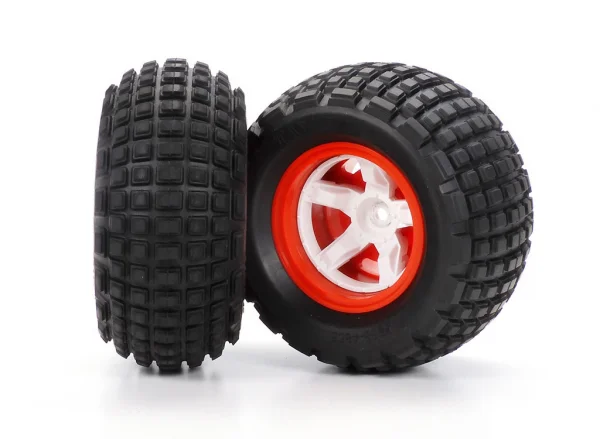

- Right: These exciting two-piece wheels utilize red rims and white spokes to match the body colors. ST bubble block tires give a capable drive.

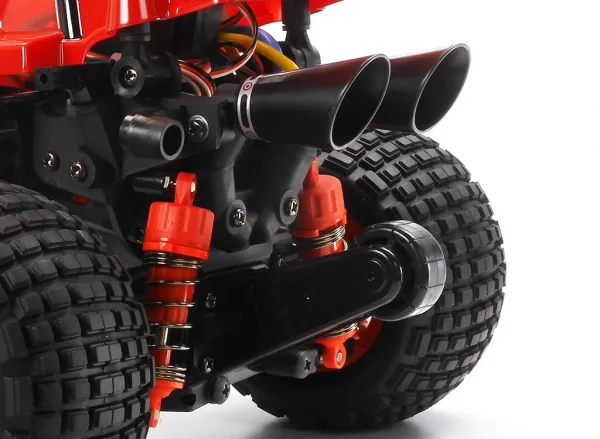

- Left: Depictions of big megaphone design exhaust tips add real character to the model, and a wheelie bar helps prevent it tipping during wheelies.

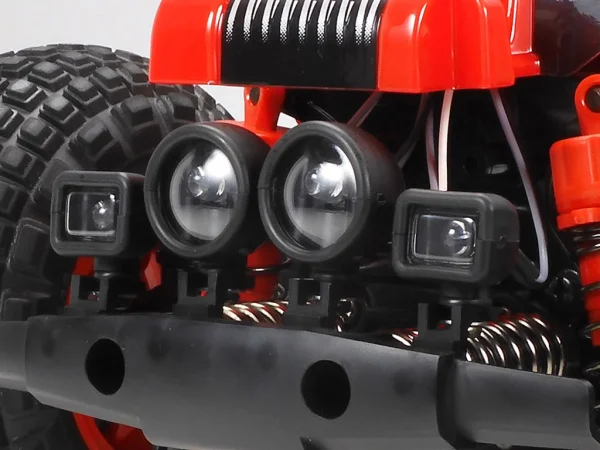

- Right: Four each of square and round light pods are included, and can have separately sold LEDs installed to give your model a fresh look!

Specifications

- Length: 345mm
- Width: 244mm
- Height: 191mm
- Tread: 188mm (Front), 184mm (Rear)
- Tire Width/Diameter: 46mm/99mm (Front), 56/99mm (Rear)
- Gear-Driven 4WD
- Monocoque Frame
- 3-Bevel Differentials
- 2-Piece Steering Tie-Rod
- Front & Rear Double Wishbone Suspension
- CVA Oil Dampers
- Gear Ratio = 18.03:1
- Type 540 Motor
- Requires Electronic Speed Controller (separately sold)

Separately Required Items

- 2-Channel R/C Unit with ESC　
- Battery Pack & Charger
- R6/AA/UM3 batteries for transmitter

• Brand: Tamiya
• Part No: HC-58685
• Barcode: 4950344586851
• Scale: 1:10
• Power Source: Electric - Brushed
• Vehicle Type: Monster Truck
• Surface Type: Off Road
• Build Level: Unassembled (Kit)
