Tamiya M-07 Concept FWD Chassis Kit HC-58647
Brand: Tamiya
Part No: HC-58647
Shadow Stock: Usually ships next day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceAdd a radio system, low profile servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.
1× eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Low Profile Digital Metal Gear Servo - 8.2Kg/0.11s
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Add a better specification radio system, steering servo, higher capacity battery and fast charger to your new Tamiya model. Note, you may also wish to choose some bodyshell paint from our range.
1× HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
1× Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
1× RadioLink RC4GS V3 5 Channel Steerwheel Transmitter With 1 x R6FG-V3 Gyro Receiver and 1 x R6F-V2 Standard Receiver
1× Savox SC1251MG+ Low Profile Metal Gear Servo - 9.0Kg/cm - 0.09 Sec
Frequently Bought With
Other items customers often buy with the Tamiya M-07 Concept Chassis Kit
Description

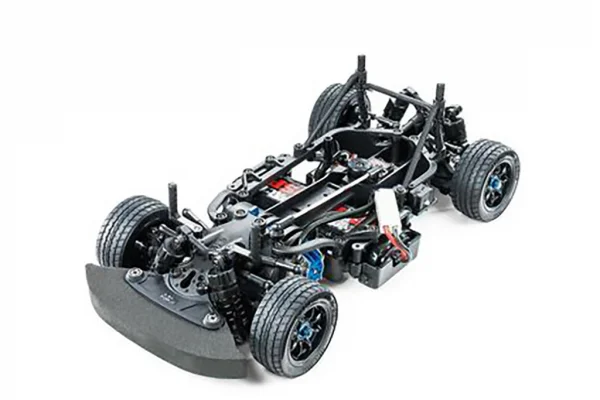

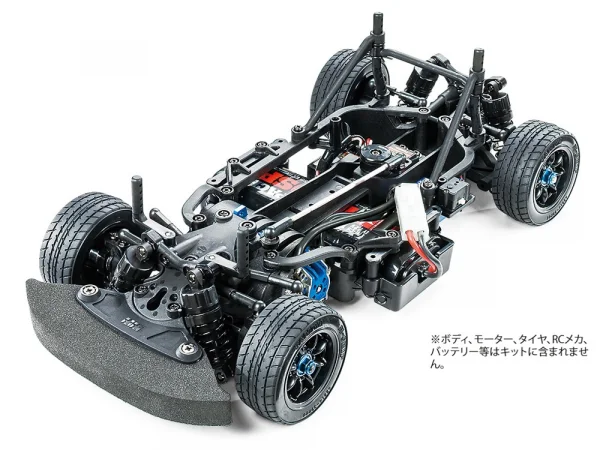

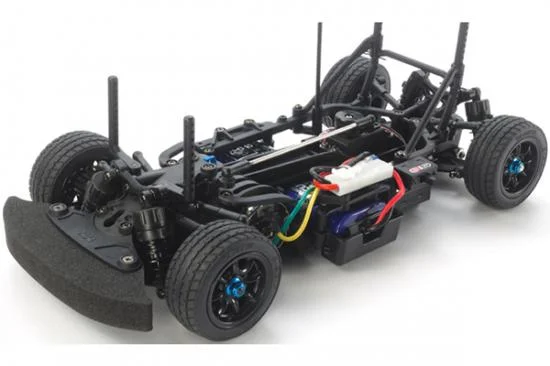

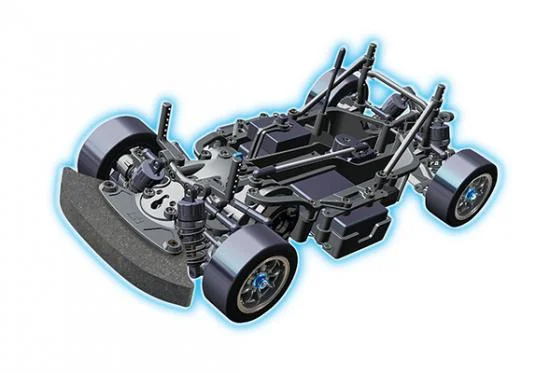

The Tamiya M-07 Concept Chassis Kit (HC-58647) is a high-performance front-wheel drive platform built around a rigid monocoque frame with lower deck and upper frame sections. Designed for sharp handling and straightforward upkeep, it features an easy-access differential that can be removed from the underside with minimal disassembly. The selectable 225mm (M) or 239mm (L) wheelbase offers setup flexibility and suggested compatibility with appropriately sized Tamiya M-chassis body parts sets.
Key Features
- Rigid monocoque frame chassis with detachable lower section for ease of maintenance
- Easy-access differential unit removable from the underside
- CVA oil shock-damped, 4-wheel double wishbone suspension
- Dedicated long suspension arms and steering linkage components for a broad range of setup options
- Adjustable camber and rear toe angle (via spacer insertion at suspension mounts)
- Silky-smooth drivetrain with full ball bearings
- Gear differential unit for consistent power delivery
- Universal drive shafts for efficient, reliable transmission
- Hi-torque servo saver
Specifications
- Length: 332mm (including bumper)
- Width: 164mm
- Wheelbase: 225mm or 239mm (selectable)
- Chassis: Monocoque frame
- Drive: Front-midship motor, front-wheel drive
- Differential: Gear differential
- Steering: 2-piece steering tie-rod
- Suspension: 4-wheel independent double wishbone
- Dampers: CVA oil dampers
- Gear ratio: 5.78:1 using included 20T pinion gear (7.22:1–4.81:1 available with separately sold pinion gears)
- Requires an Electronic Speed Controller (sold separately)
Separately Required Items
- Body
- Type 540 motor
- Tyres
- 2-channel R/C system with ESC
- Batteries for transmitter
- Battery pack and charger
Secured by Stripe
Tamiya M-07 Concept Chassis Kit Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
An M Revolution!
This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers a responsive drive and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. CVA oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.
Featured Components
笳舟onocoque frame chassis (with detachable lower section) 笳臭ong suspension arms 笳修VA oil dampers 笳洲ull ball bearings 笳秀ear differential unit 笳酋niversal drive shafts 笳秋i-torque servo saver

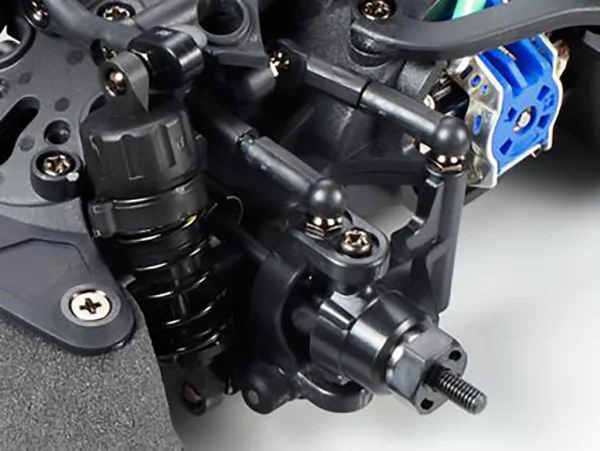

- Left: Long arms and steering linkage components optimize damper leverage ratio. The chassis' camber can also be adjusted.

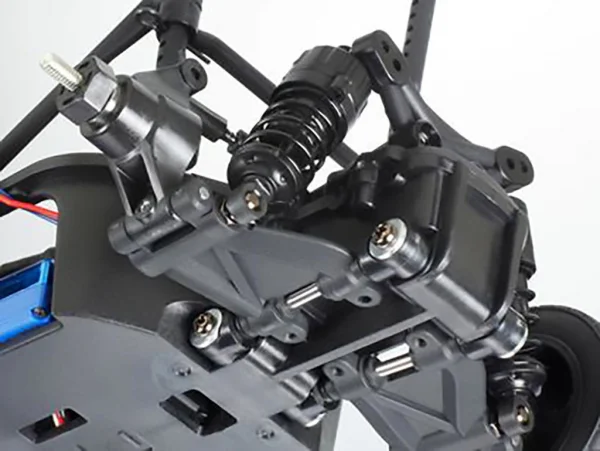

- Right: Adjust the M-07 Concept's rear toe angle via the insertion of spacers where the suspension mount parts are attached.

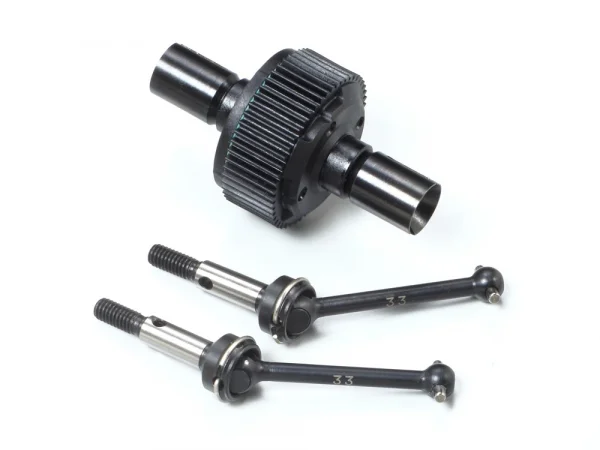

- Left: One of the key points is the easy-access differential unit, which can be removed and changed from the underside.

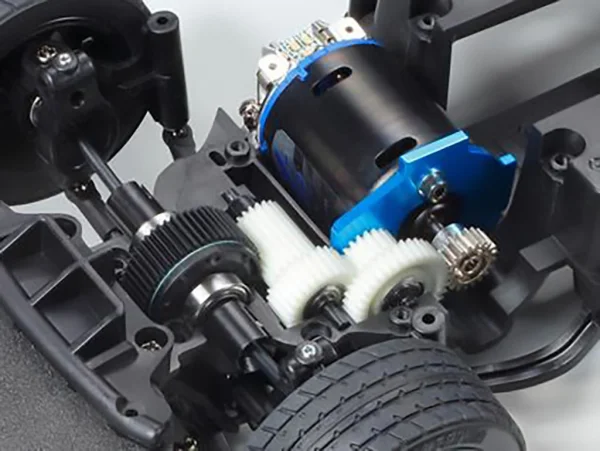

- Right: Enjoy silky-smooth power from your chassis thanks to full ball bearings, universal drive shafts and gear differential unit.
Specifications
笳臭ength: 332mm (including bumper) 笳集idth: 164mm 笳集heelbase: 225mm or 239mm (Selectable) 笳舟onocoque Frame 笳洲ront-Midship Motor, Front-Wheel Drive 笳秀ear Differential 笳-Piece Steering Tie-Rod 笳-Wheel Independent Double Wishbone Suspension 笳修VA Oil Dampers 笳秀ear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears) 笳蹴equires an Electronic Speed Controller (sold separately)
Separately Required Items
笳州ody 笳週ype 540 Motor 笳週ires 笳-channel R/C system with ESC 笳州atteries for transmitter 笳州attery Pack and Charger
Key Info:
- Brand: Tamiya
- Part No: HC-58647
- Barcode: 4950344586479
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: On Road
- Vehicle Type: Touring / Rally Car
- Build Level: Unassembled (Kit)
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Only with different bodies and tyres.
This is mainly an on road car you could put some rally tyres on it to work as a rally car.
This will need a round case lipo like this SCH-CR293
Carpet can be quite subjective, I'd recommend checking what your local club members are running?
For more in depth queries, please contact us.
