Tamiya Neo Scorcher (TT-02B)

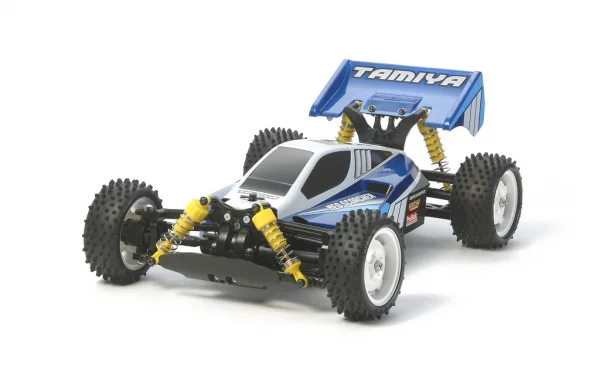

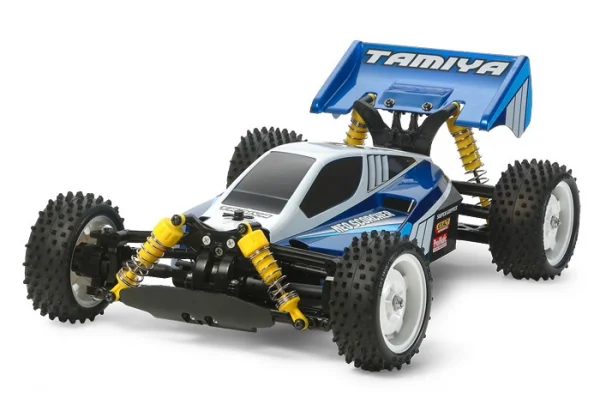

The Tamiya Neo Scorcher (TT-02B) brings a late-1980s icon back to the dirt with a refreshed polycarbonate body and large rear wing inspired by the original Scorcher. Supplied with bold stickers for quick, clean decoration, it sits on the easy-to-build, shaft-driven TT-02B 4WD buggy chassis and pairs assured handling with square spike tyres for confident grip on rough terrain.

The TT-02B platform is designed for durability and straightforward maintenance. Identical left/right suspension arms and uprights simplify assembly, while sealed gearboxes with 4-bevel differentials keep dust out for smooth running. A removable top cover (four screws) makes access fast, and multiple gear ratios can be set using separately available pinions to match track conditions.

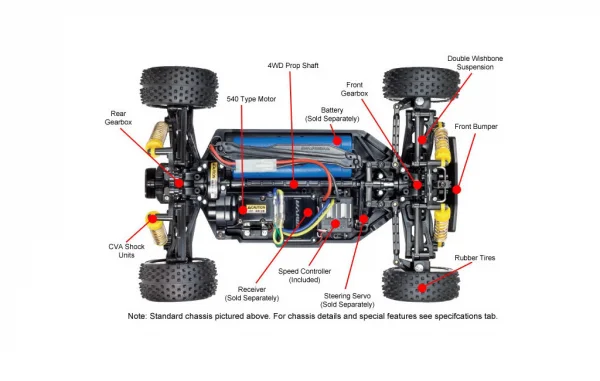

Shaft-Driven 4WD TT-02B

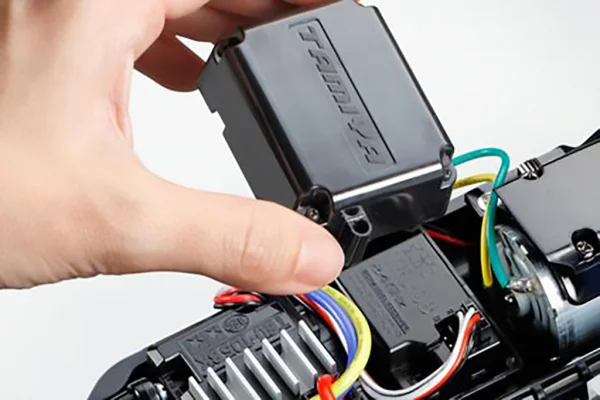

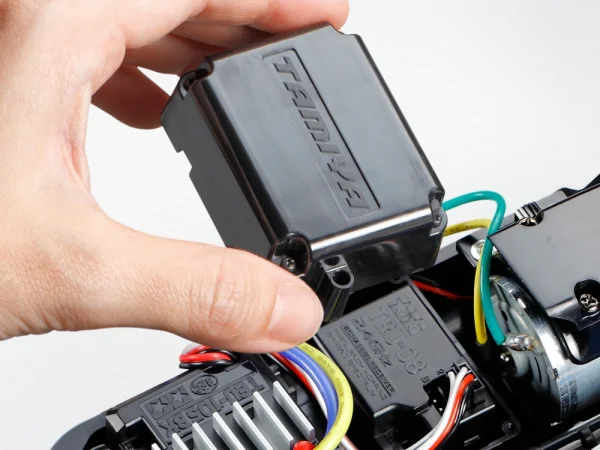

The skid-shaped bathtub frame houses a 4WD driveline, independent double wishbone suspension with long arms, and CVA oil dampers to help the Neo Scorcher track straight and land jumps with composure. Receiver and motor covers help shield key components from dirt and debris for reliable off-road performance.

About The Model

• 1/10 Scale
• Length: 380mm, Width: 250mm, Height: 145mm
• Wheelbase: 266mm
• Tread: 217mm (Front), 208mm (Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD

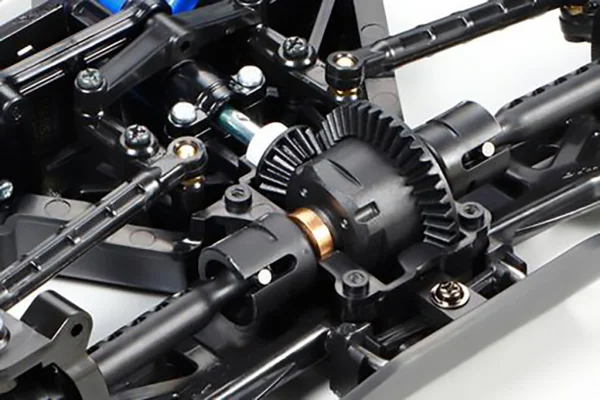

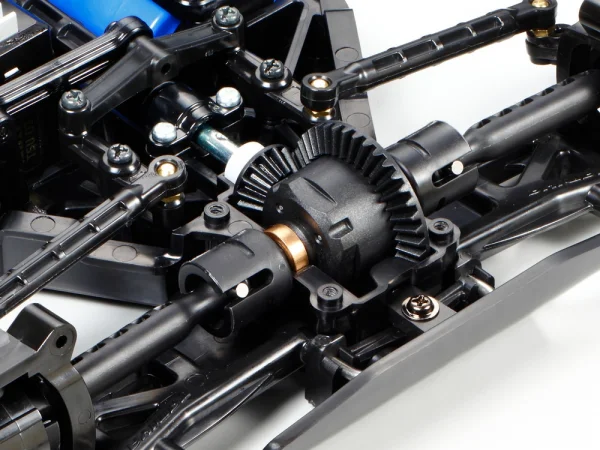

• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Tyre Width/Diameter: 32/82mm (Front), 41/82mm (Rear)

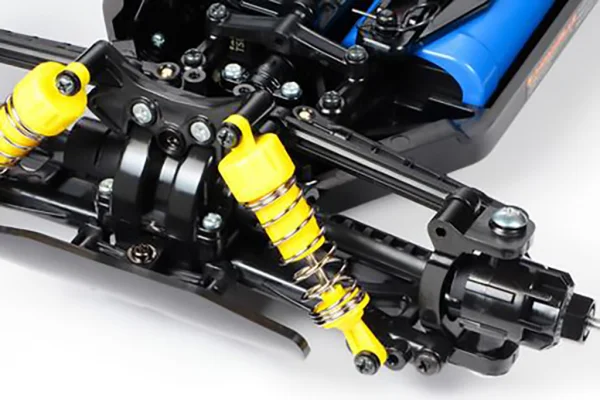

• Front/Rear CVA Oil Dampers
• Gear Ratio = 10.71:1 (using kit-included pinion gear)
• Type 540 Motor
• Electronic Speed Controller included.

Separately Required Items

• Two-channel radio
• Steering servo
• 7.2 volt battery with compatible charger
• Tamiya PS polycarbonate paint
