Tamiya TT-02D Drift Chassis

Brand: Tamiya

Part No: HC-58584

£109.00 RRP £129.99
Pre-Order

Add a motor and speed controller, radio system, steering servo, batteries and charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.

1 x HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
HPI-101939
1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060
1 x EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
SCH-EP3000S
1 x Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
HW30120201
1 x CORE 15T Silver Can Brushed 540 Motor
SCH-CR710
1 x Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
HD-1812MG
1 x Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
ORI30198DNS

Saves £41.46 over RRP

Add a motor and speed controller, radio system, steering servo, high capacity batteries and fast charger to your new model. Note, you may also wish to choose some bodyshell paint from our range.

1 x HPI Plazma 1.5V Alkaline AA Battery (4Pcs)
HPI-101939
1 x eTronix Pulse EX2 Sport - 2 Channel 2.4Ghz Radio Set
ET1060
1 x Voltz 5300mAh NiMh Stick Pack - 7.2v - Tamiya Connector
VZ0025
1 x eTronix Power Pal Peak Detect NiMh Fast Charger - Mains/12v Input
ET0208
1 x Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
SAV-SW0231MG+
1 x Hobbywing Quicrun 1060 Brushed SBEC 60A ESC - Tamiya Connector
HW30120201
1 x CORE 15T Silver Can Brushed 540 Motor
SCH-CR710

Saves £40.17 over RRP

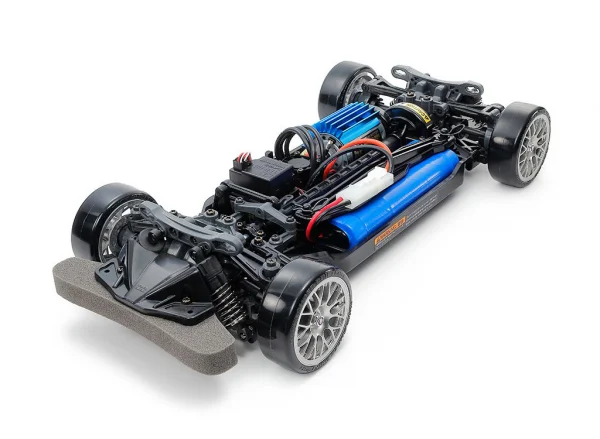

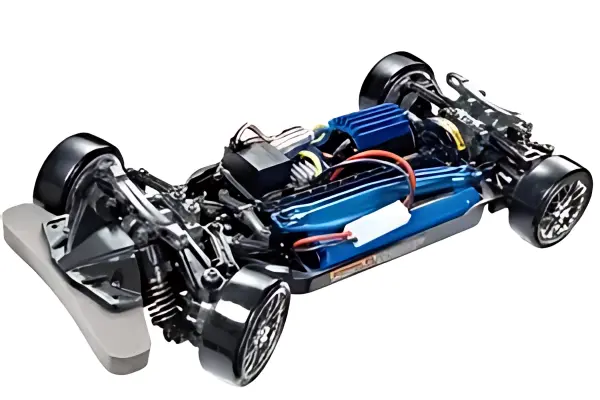

Experience controlled slides with the Tamiya TT-02D Drift Chassis (HC-58584), a drift-spec evolution of the proven TT-02 platform. It comes equipped for sideways action with 24mm width drift tyres on stylish matte-finish metal-plated wheels, CVA oil shocks on 4-wheel double wishbone suspension, and reinforced uprights and damper stays for durability. Semi-gloss metal-plated brake disc-shaped wheel hubs and blue battery holder parts add visual appeal. Full ball bearings, an aluminium motor heat sink, and a Type 540 Sport-Tuned motor are included, while the TT-02’s renowned drivability, easy maintenance and adaptability are retained.

Drifting is a driving style where the rear tyres are deliberately made to lose traction, letting the car slide through corners using steering and throttle control. This chassis provides an accessible way to enjoy that excitement on RC tracks.

Electronic Speed Controller (ESC) is sold separately.

Features

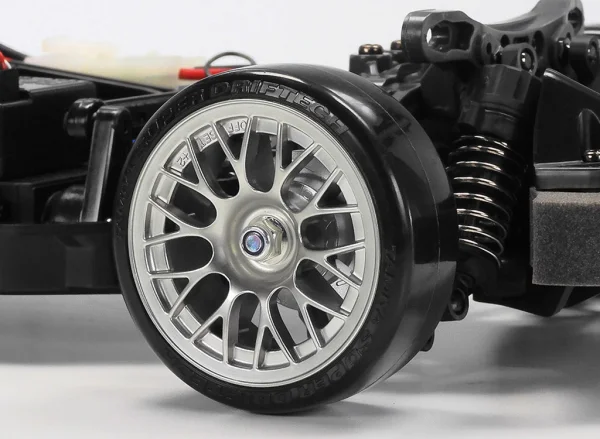

  • 24mm drift tyres fitted to matte-finish metal-plated wheels

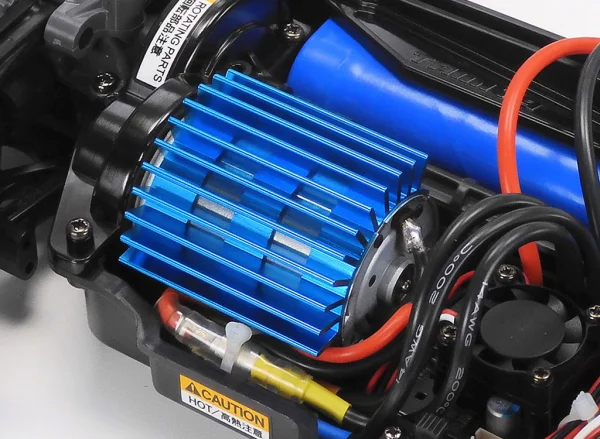

  • Full ball bearings and aluminium motor heat sink
  • Type 540 Sport-Tuned motor

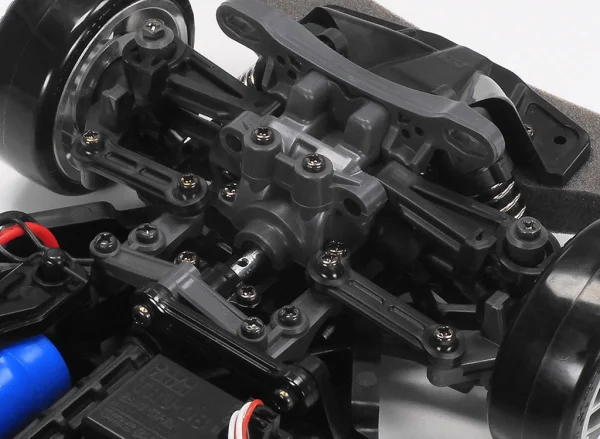

  • Reinforced resin uprights and damper stays
  • CVA oil shocks (front and rear) on 4-wheel double wishbone suspension

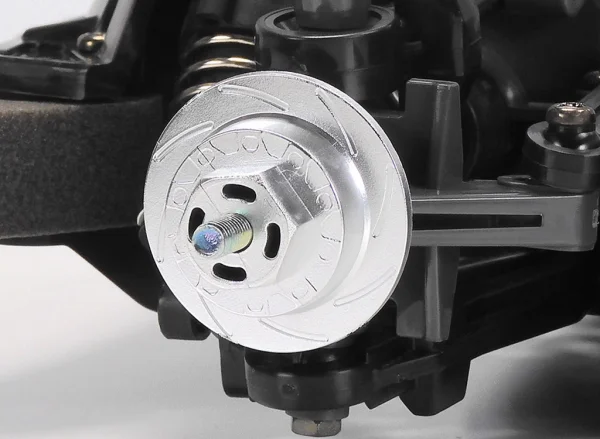

  • Semi-gloss metal-plated brake disc-shaped wheel hubs
  • Blue battery holder parts
  • Retains TT-02 drivability, easy maintenance and adaptability

Specifications

  • Length: 376mm; Width: 182mm/190mm; Wheelbase: 257mm/251mm
  • Tyre width/diameter (front & rear): 24/64mm
  • Bathtub-type frame; shaft-driven 4WD; front/rear 4-bevel resin differentials
  • Gear ratio: 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with separately sold pinions)

Requires To Complete

  • 2-channel transmitter and receiver
  • Electronic Speed Controller (ESC)
  • Battery and compatible charger

On Your Marks, Get Set, Drift!
Enjoy the thrill of drifting with this specially tuned drift spec version of the TT-02 chassis. The chassis also features drift spec parts such as 24mm width drift tires (fitted to stylish matte-finish metal-plated wheels), and CVA shock units on the 4-wheel double wishbone suspension. Reinforced resin uprights, damper stays and more contribute to the chassis' tough suspension, while semi-gloss metal-plated parts such as brake disc-shaped wheel hubs and blue battery holder parts will catch the eye. Full ball bearings, an aluminum motor heat sink, and a sport-tuned motor come as standard. Of course, the chassis retains the original TT-02's excellent drivability, ease of maintenance, and adaptability.

What's Drifting?
Drifting is a popular style of "extreme" racing in which the driver forces the rear tires to lose traction and slides the car sideways around corners using the car's steering and throttle. As it gains in popularity around the world, Tamiya now lets you experience exciting drift action without burning up your real car's tires!

Tamiya TT-02D Specifications:

  • Length: 376mm, Width: 182mm/190mm Wheelbase: 257/251mm
  • Tire Width/Diameter (Front & Rear): 24/64mm
  • Bathtub-type Frame
  • Shaft Driven 4WD
  • Front/Rear 4-Bevel Resin Differentials
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear CVA Oil Shocks
  • Gear Ratio = 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
  • Type 540 Sport-Tuned Motor
  • Full Ball Bearings
  • Electronic Speed Controller (ESC) is sold separately.



Tamiya TT-02D Requires to Complete:

  • 2 Channel Transmitter + Receiver
  • ESC
  • Battery + Charger





Key Info:
  • Brand: Tamiya
  • Part No: HC-58584
  • Barcode: 4950344585847
  • Scale: 1:10
  • Vehicle Type: Drift Car
  • Power Source: Electric - Brushed
  • Surface Type: On Road
  • Build Level: Unassembled (Kit)
Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
would it still drift well with a cheaper motor if on a tight budget but want good drifts?
John / 6th December 2024

Yes with the right tyres it will drift on a brushed motor.

Steve @ Wheelspin Models
the motor on this kit can it handle a 2s battery
Steve / 20th March 2023

Yes 2s lipo will be fine on that motor.

Si @ Wheelspin Models
Does this kit come with a servo?
Tyler / 15th November 2021

No you need to buy a servo to suit your budget.

Anthony @ Wheelspin Models
What esc would be ideal for this kit?
Tyler / 12th November 2021

I would use the Hobby Wing 1060 brushed.

Anthony @ Wheelspin Models
Are the stock components of TT-02 suitable for use with Brushless motors, or are drive-train hop-ups essential?
Joe Handley / 24th November 2020

Basic brushless you should be OK - anything "hot" though you'll want to look at starting to upgrade

Ben @ Wheelspin Models
What is its maximum speed?
Austin Mair / 16th July 2020

It all depends on the set up you fit as this is just a chassis.

Anthony @ Wheelspin Models
What bodies can I get to fit the TT02D chassis?
Greg / 12th April 2020

Any standard 190/200mm bodies will fit

Ben @ Wheelspin Models
Is it a RTR
Warren Male / 28th March 2017

No, this is a Tamiya kit and requires electronics and assembly.

Ben @ Wheelspin Models
