Tamiya Globe Liner 1/14 Tractor Truck (HC-56304)
Brand: Tamiya
Part No: HC-56304
Shadow Stock: Usually ships next day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceThis combo includes a multi channel radio system compatible with Tamiya Tractor units, along with the multi function control unit, steering servo and battery and charger
1× Tamiya MFC-01 Tractor Unit Multi Function Control Unit - US
2× Savox SW0231MG+ Waterproof Metal Gear Digital Servo - 15kg - 0.17s
1× EP Super Duty 3000mAh NiMh Stick Pack - 7.2v - Tamiya Connector
1× Carson Reflex Stick Multi Pro - 14 Channel Truck Radio
1× Team Orion IQ801 1 AMP NiMh Charger With Deans to Tamiya Adapter
Frequently Bought With
Other items customers often buy with the Tamiya Globe Liner
Description

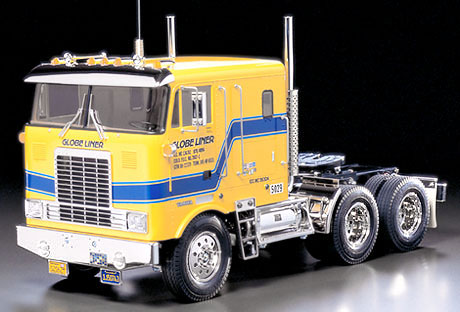

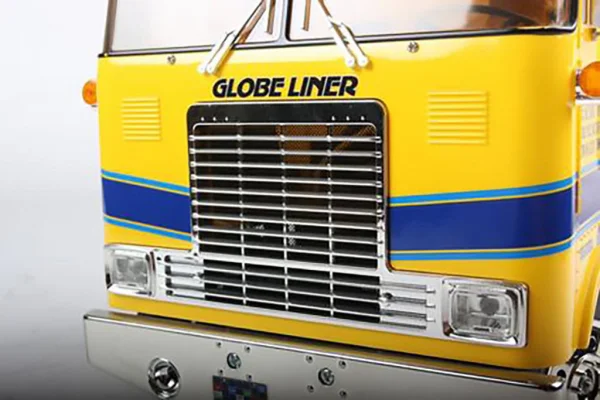

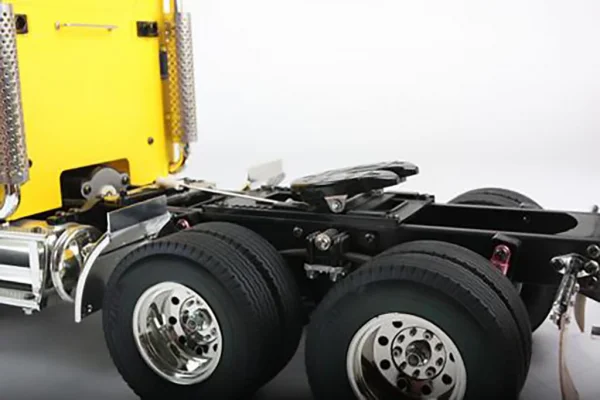

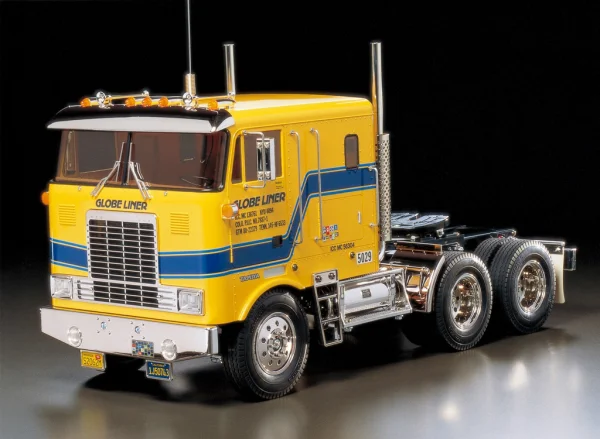

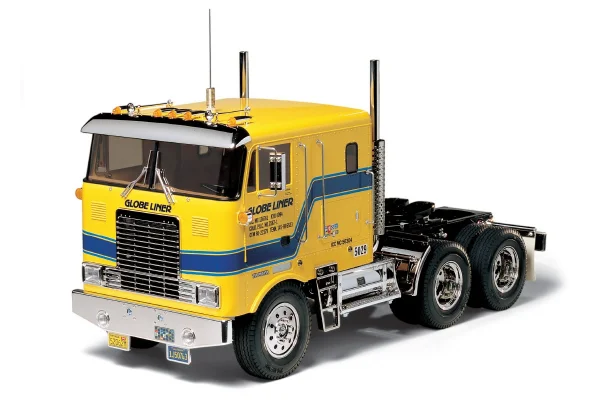

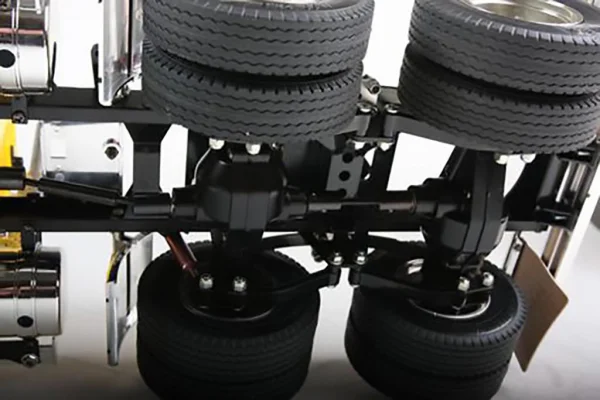

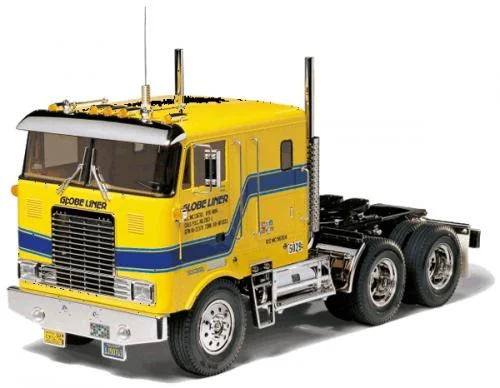

The Tamiya Globe Liner captures the classic look of a full-size tractor truck in 1/14 scale. Designed for smooth performance, it features a rear double-axle drive that uses rigid propeller shafts and a robust aluminium ladder chassis. A 3-speed gearbox provides selectable gear ratios, while solid axles and metal friction dampers complete the proven drivetrain layout. The styrene (plastic) bodywork and chrome wheels with radial tyres bring an authentic, detailed appearance to this electric-powered model.
Built around dependable engineering, the Globe Liner (part number HC-56304) combines durability with scale presence. A bevel gear differential, neat proportions and balanced weight make it a compelling choice for enthusiasts seeking a 1/14 tractor truck platform with potential for multi-channel control and additional options in the future.
Specs and Features
- Scale: 1/14
- Length: 19.69 inches (500 mm)
- Width: 7.20 inches (183 mm)
- Wheelbase: 13.78 inches (350 mm)
- Front Tread: 6.14 inches (156 mm)
- Rear Tread: 5.43 inches (138 mm)
- Weight: 5.82 lbs (2640 g)
- Chassis: Aluminium ladder
- Suspension: Solid axle
- Damper Type: Metal friction

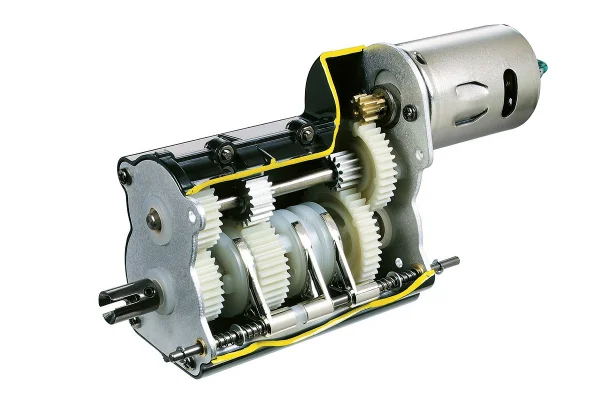

- Drive Train: Gearbox (3-speed)
- Gear Ratios (with 3-speed gearbox): 10.6:1, 17.7:1, 32.4:1
- Differential Type: Bevel gear
- Motor Specification: Electric 540
- Wheels & Tyres: Chrome / radial
- Body Type: Styrene (plastic)
Required to Complete
- 4-channel system is recommended for potential future options and 3-speed operation.
- 7.2V battery and charger
- ESC (unless you are using MFC Unit #56511)
Secured by Stripe
Tamiya Globe Liner Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
Tamiya has captured the attractive appearance of tractor trucks in a 1/14 scale electric powered Globe Liner . The rear double axle drive uses rigid propeller shafts for smooth performance.
Specs and Features
- Scale: 1/14
- Length: 19.69 inches (500mm)
- Width: 7.20 inches (183mm)
- Wheelbase: 13.78 inches (350mm)
- Front Tread: 6.14 inches (156mm)
- Rear Tread: 5.43 inches (138mm)
- Weight: 5.82 lbs. (2640g)
- Chassis: Aluminum ladder
- Suspension: Solid Axle
- Damper Type: Metal friction
- Drive Train: Gearbox (3-speed)
- Gear Ratio: 10.6:1 - With the 3-speed
- gearbox, 10.6:1, 17.7:1 and 32.4:1 are possible
- Differential Type: Bevel Gear
- Engine: Electric 540
- Wheels & Tires: Chrome/Radial
- Body Type: Styrene(plastic)
Required: - 4-channel system is recommended for potential future options and 3-speed operation.
- 7.2V battery and charger
- ESC (unless you are using MFC Unit #56511)
Key Info:
- Brand: Tamiya
- Part No: HC-56304
- Barcode: 4950344563043
- Scale: 1:14
- Power Source: Electric - Brushed
- Vehicle Type: Lorries / Trucks
- Surface Type: On Road
- Build Level: Unassembled (Kit)
Additional Categories:
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
These come with Bronze bushings, you would need HC-C904028 for the bearing set
