Tamiya Audi Quattro A2 (TT-02)

A Giant of the Rally World

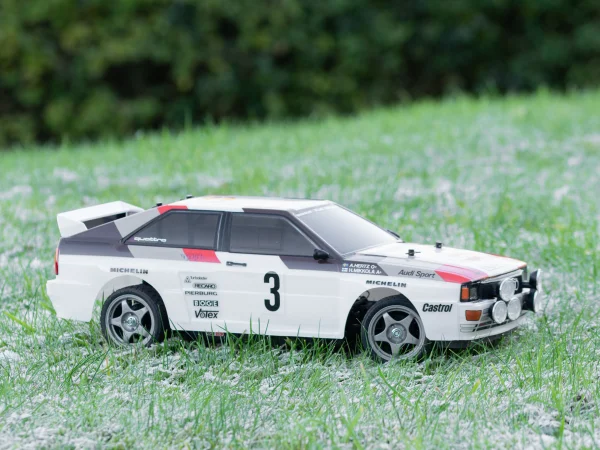

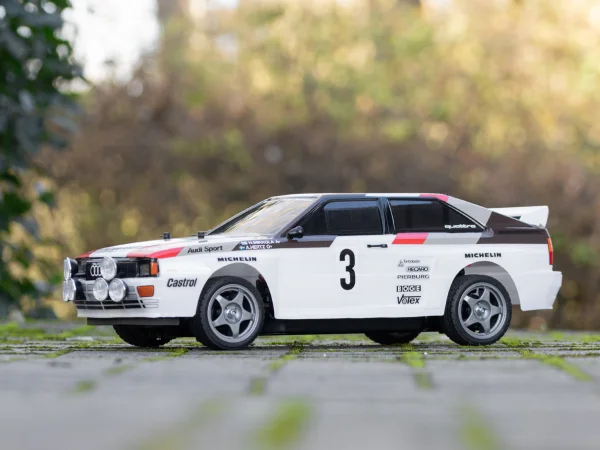

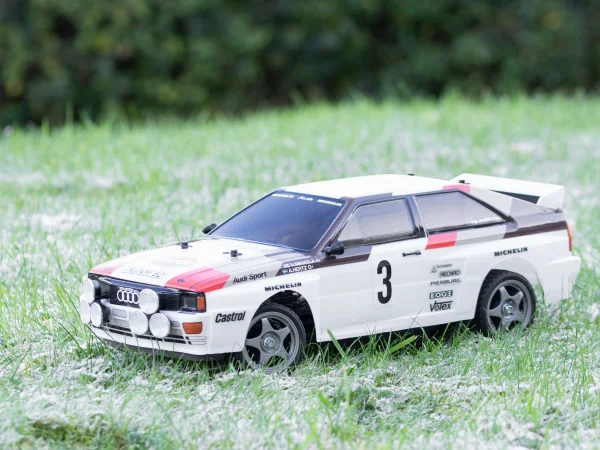

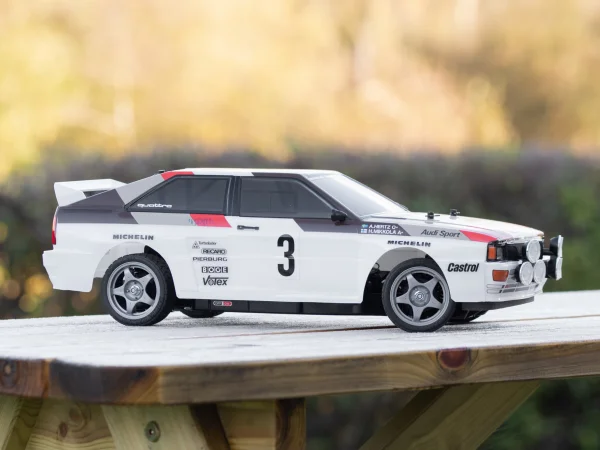

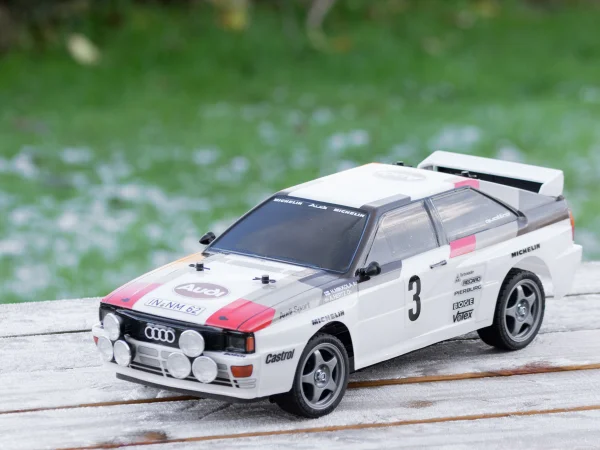

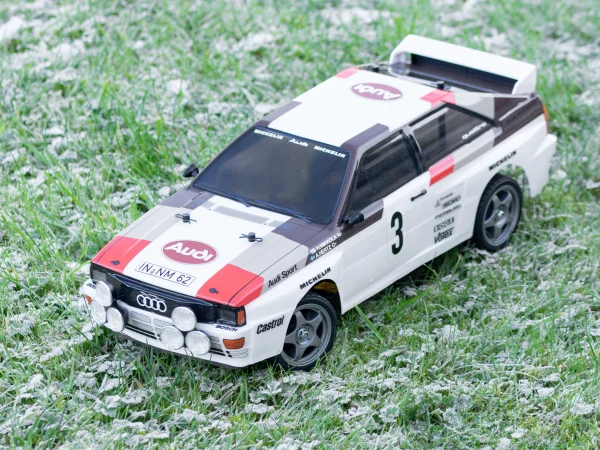

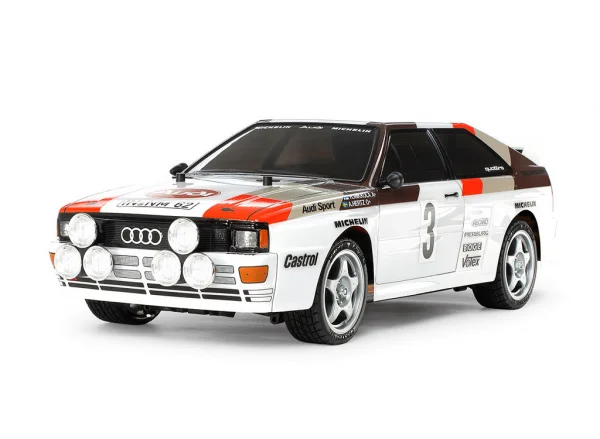

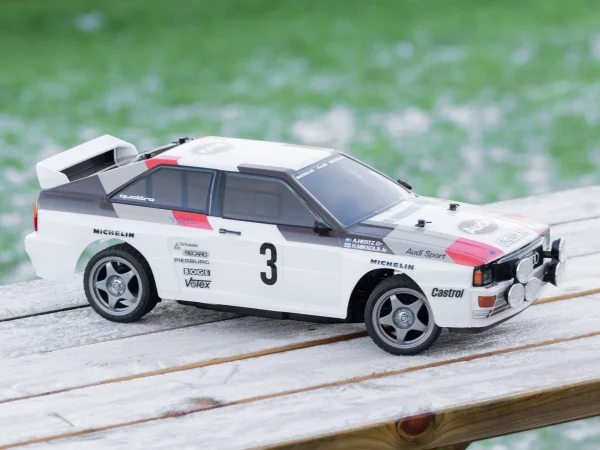

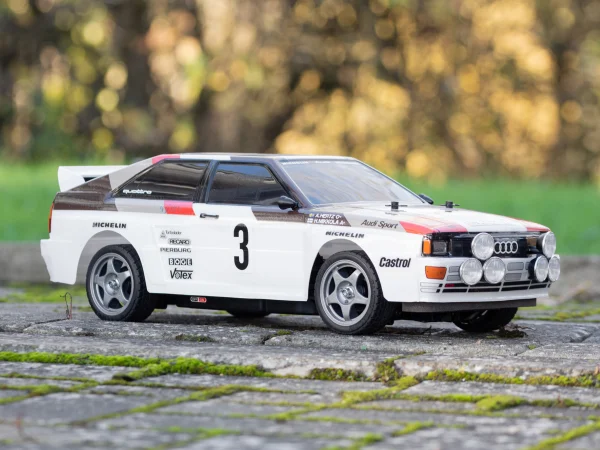

The Audi quattro is a true rallying legend that was a pioneer of 4WD rally technology. This is an R/C model assembly kit recreating the Audi quattro Rallye A2, the car which debuted in 1983. It features an accurate polycarbonate body recreating the 2-door form, with separate parts for side mirrors, rear wing and light cases. The adaptable TT-02 chassis provides the base, with 5-spoke wheels and tread patterned tires.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. 5-spoke wheels are paired with tread-patterned tires.

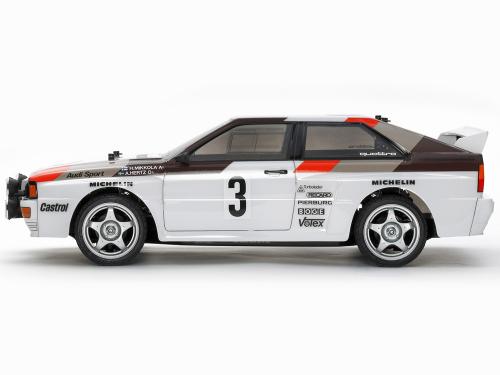

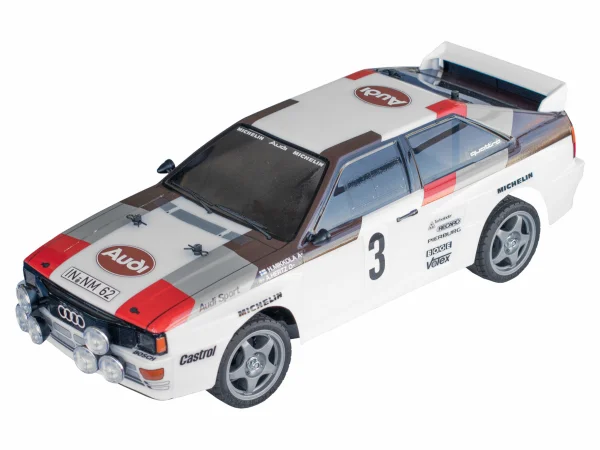

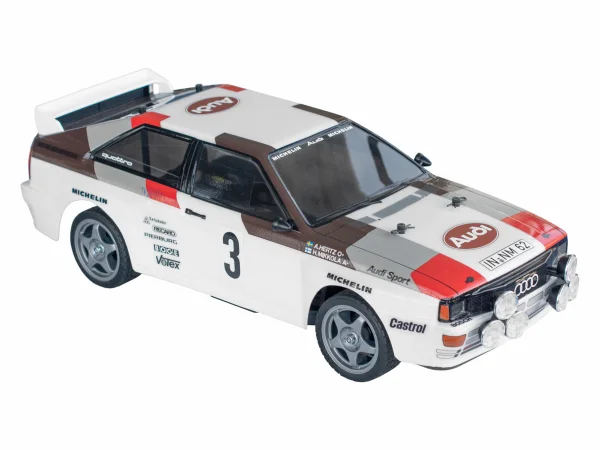

- The instantly recognizable form of the car is recreated accurately in lightweight and durable polycarbonate.


- Also included in the kit are stickers to decorate the body, plus masking stickers for use in the paint job.

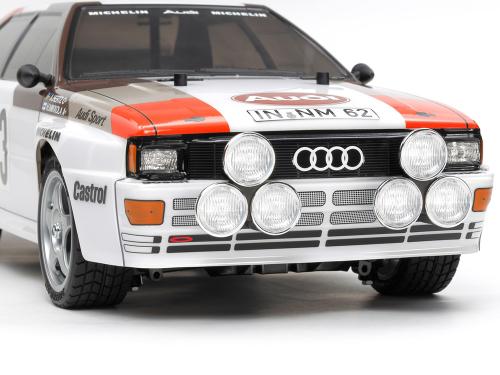

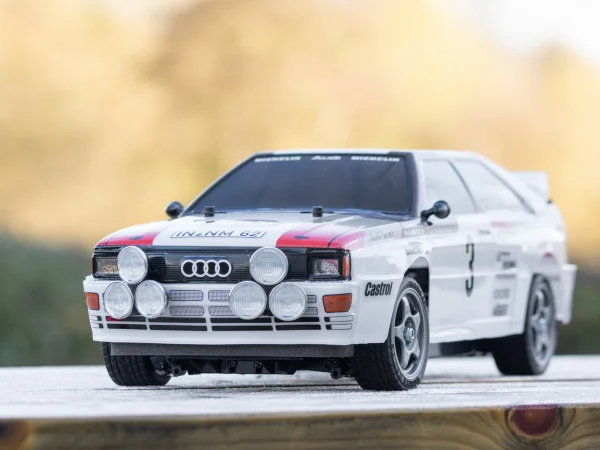

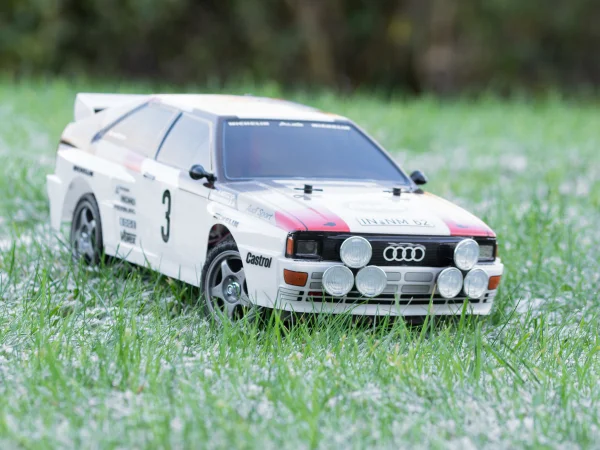

- Separate parts capture the distinctive triple fog lamp clusters, which add to the rally air of the model.

- This close-up shot shows the bullet-shaped side mirrors, also recreated using separately molded parts.

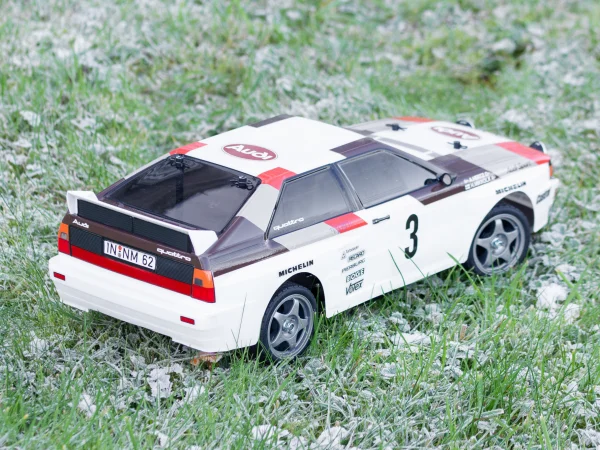

- At the rear of the car, the sporty wing is another separate part, with sticker-depicted oil coolers.


- Silver color 5-spoke wheels are paired with tread-patterned racing radial tires that provide a grippy drive.

Specifications

- Length: 458mm, Width: 187mm, Height: 135mm
- Wheelbase: 257mm　
- Tire Width/Diameter: 26/66mm (Front & Rear)
- Bathtub-type Frame
- Shaft-Driven 4WD
- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Dampers
- Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- Type 540 Motor
- Electronic Speed Controller (ESC) is included

Separately Required Items

- 2-Channel R/C Unit
- Battery Pack & Charger
- R6/AA/UM3 batteries for transmitter

• Brand: Tamiya
• Part No: HC-58667
• Barcode: 4950344586677
• Scale: 1:10
• Power Source: Electric - Brushed
• Surface Type: On Road
• Vehicle Type: Touring / Rally Car
• Build Level: Unassembled (Kit)
