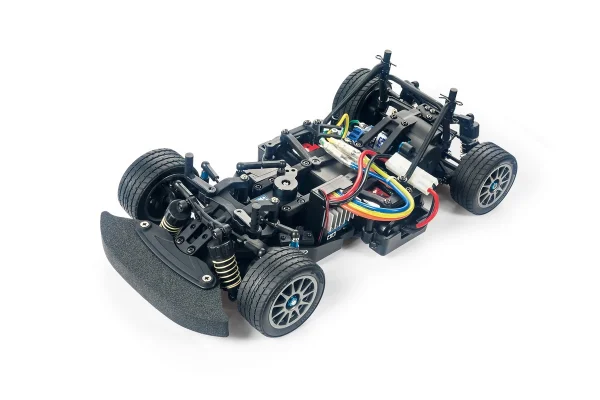

Tamiya M-08 Chassis Kit (HC-58669)

Instruction Manual Correction
A correction has been issued for the assembly instruction manual for this product.
Please click here to see the PDF file.

A GR8 M-Chassis Addition

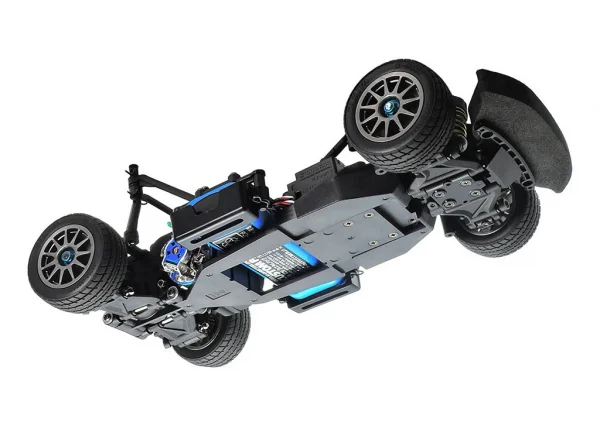

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbases. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for a ground hugging drive, and the front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Featured Components

- M-07 Concept design long suspension arms
- Oil-filled gear differential
- Universal drive shafts
- Turnbuckle upper arms
- Full ball bearings
- Hi-torque servo saver (black)

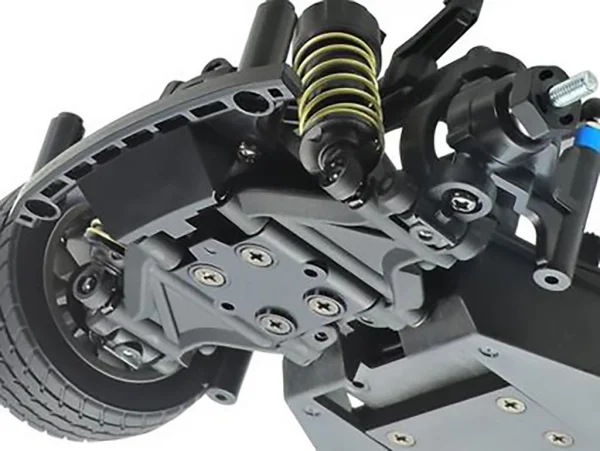

- Front caster angle is set by 0-degree suspension mount and 2-degree hub carrier components.

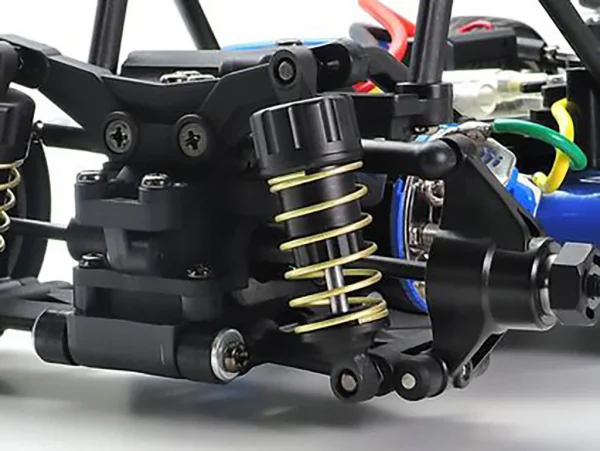

- Long suspension arms give a ground hugging drive, and inherit the M-07 Concept design.

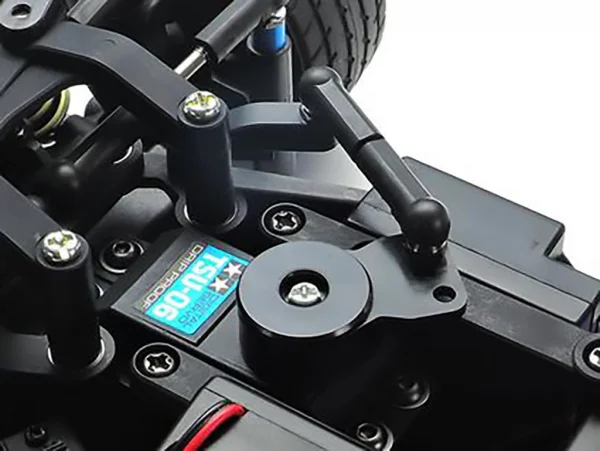

- Features a forward position for the low-profile servo, plus a hi-torque servo saver included.

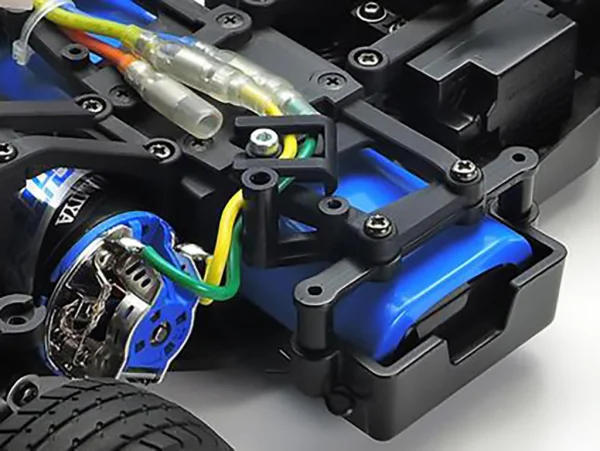

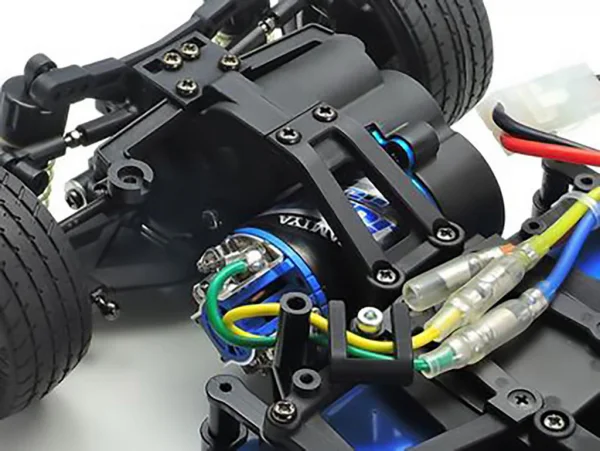

- The midship motor is positioned to as to provide valuable weight to the driven rear wheels.

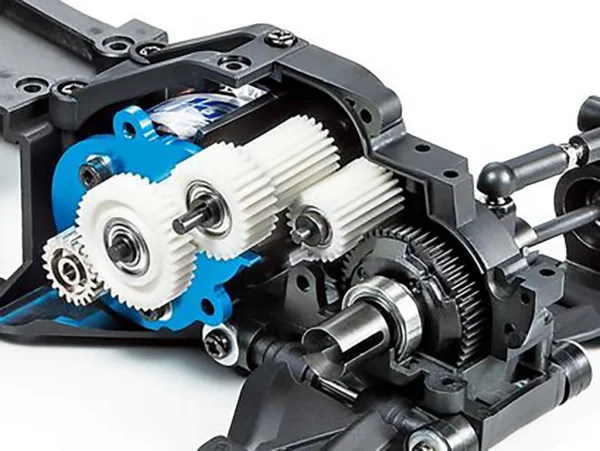

- A 4-gear layout in the drivetrain ensures that inverse torque from the motor pushes down rear wheels.


- Separate front and rear sections of the main frame allow a choice of three different wheelbases.

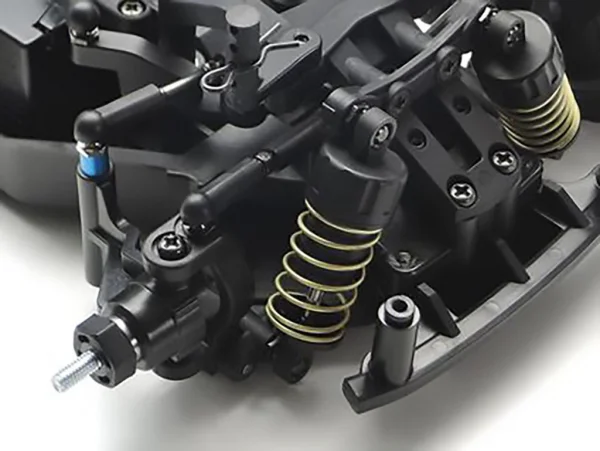

- Use spacers in the rear suspension setup to make fine adjustments to the chassis' toe angle.


- This chassis is compatible with square shaped battery packs such as the 7.2V Racing Pack.

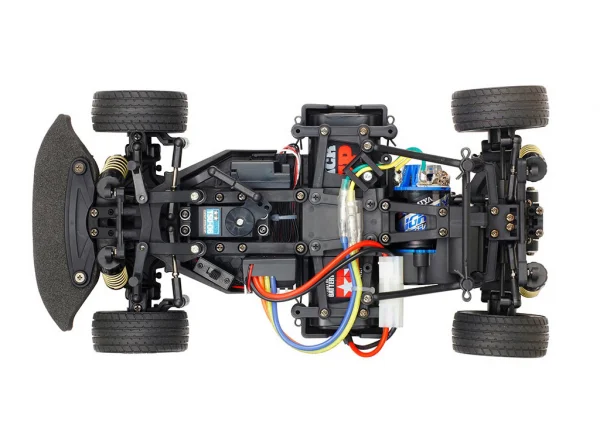

- An overhead view shows off the perfectly-balanced form of the M-08 Concept and its compact RWD layout.

Specifications

- Length: 319mm (in M wheelbase), Width: 165mm,
- Choose between 210mm (S), 225mm (M) and 239mm (L) wheelbases
- Monocoque Frame
- Midship Motor, Rear-Wheel Drive
- Oil-Filled Gear Differential
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- CVA Oil Dampers
- 8 potential gear ratios between 4.813:1 and 6.795:1 (kit-standard 20T pinion gear gives 5.776:1)
- Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

- M-Chassis-compatible body
- Type 540 motor
- Tires
- 2-Channel R/C System w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery Pack & Charger

• Brand: Tamiya
• Part No: HC-58669
• Barcode: 4950344586691
• Scale: 1:10
• Power Source: Electric - No Motor
• Surface Type: On Road
• Vehicle Type: Touring / Rally Car
• Build Level: Unassembled (Kit)
