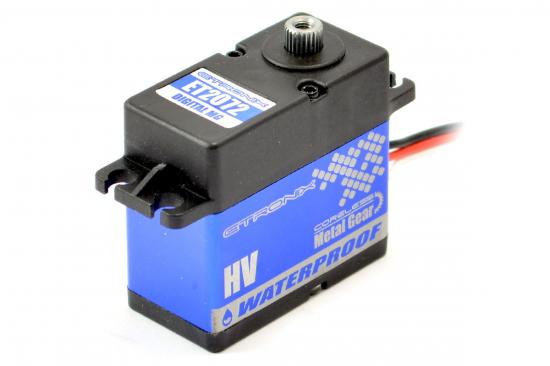

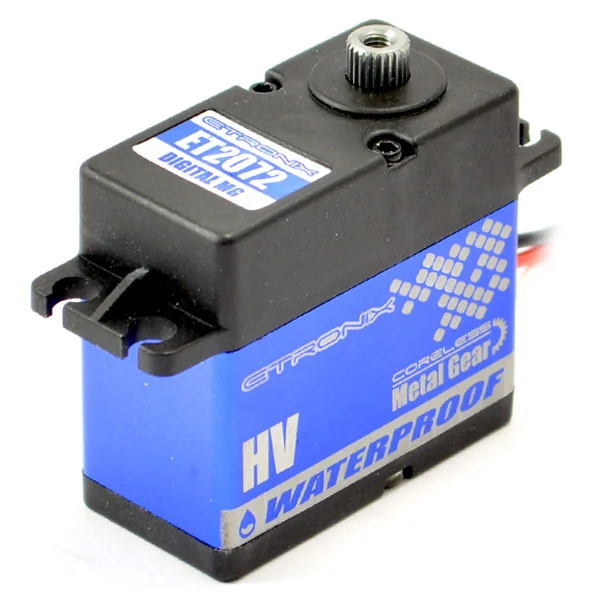

eTronix 30.3Kg 0.09s HV Waterproof Servo (ET2072)
Brand: eTronix
Part No: ET2072
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the eTronix Digital Metal Geared Waterproof Servo - 30.3Kg - 0.09S
Description
The eTronix ET2072 Digital Metal Geared Waterproof Servo delivers high-voltage performance in a standard-size footprint. It combines a fast 0.09s transit time at 8.4V with up to 30.30kg-cm of torque for decisive, accurate control. A coreless motor, dual ball bearings and a metal gear train ensure smooth operation and durability, while the metal/plastic case and waterproof design help protect against the elements.
Key Features
- High-voltage digital control
- Waterproof standard-size servo
- Coreless motor
- Dual ball bearings (2BB)
- Durable metal gears with metal/plastic case
- 25T spline output
Specifications
- Speed (sec/60°): 0.11s @ 6.0V, 0.09s @ 8.4V
- Torque (kg-cm): 24.70 @ 6.0V, 30.30 @ 8.4V
- Dimensions: 40.5 x 20.2 x 38mm
- Weight: 58g
- Gears: Metal
- Bearings: 2BB
- Case: Metal/Plastic
- Spline Size: 25T
What’s Included
- Selection of servo horns
- Mounting rubber
- Hardware
Secured by Stripe
eTronix Digital Metal Geared Waterproof Servo - 30.3Kg - 0.09S Manuals & Guides
Specifications
ETRONIX 30.3kg/0.09s STD DIGITAL SERVO HV METAL GEAR WATERPROOF
Etronix standard-sized waterproof coreless high-voltage digital servo. Full selection on servo horns, mounting rubber and hardware included.
Spec Check:
- Speed (sec/60°): @6.0v 0.11s, @8.4V 0.09s
- Torque (kg-cm): @6.0v 24.70kg, @8.4V 30.30kg
- Dimensions: 40.5 x 20.2 x 38mm
- Weight: 58g
- Gears: Metal
- Bearing: 2BB
- Case: Metal/Plastic
- Spline size: 25T
Unsure which servo you need for your model?
Visit our Etronix Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: eTronix
- Part No: ET2072
- Barcode: 5056135711743
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Yes this would be a better option ET2060
I'm very sorry but they do not do replacement gears for this servo.
This will work in most cars as it uses power from the reveiver so this is normally 6v or 7.4v
Yes this is a standard size servo so will fit that car for you
This will work in that car but the Savox is a much better branded servo
Yes this would fit that car and would be an upgrade over the standard servo.
Yes that should fit.
Due dates are the best/latest info we have from the suppliers - but especially under COVID, can be a little stretched I'm sorry
For more in depth queries, please contact us.
