eTronix ET2060 11.25kg 0.07s Digital Metal Gear Servo
Brand: eTronix
Part No: ET2060
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the eTronix Standard Size Digital Metal Gear Servo - 11.25Kg - 0.07S
Description

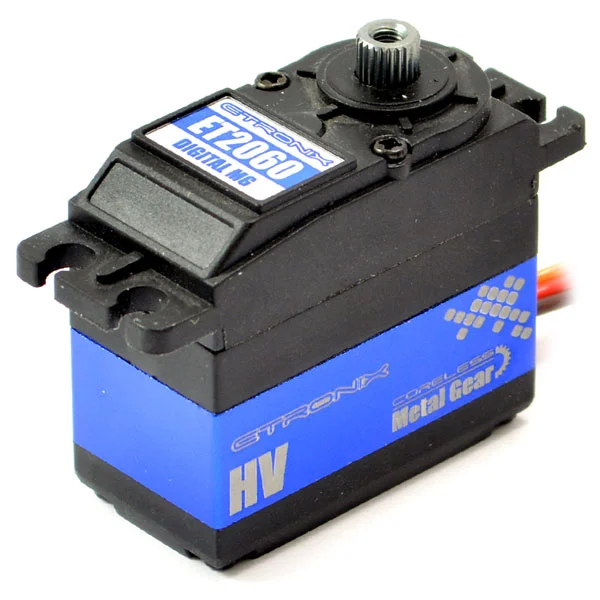

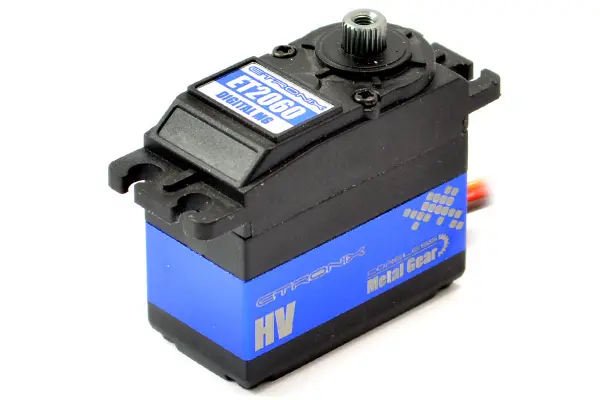

The eTronix Standard Size Digital Metal Gear Servo (ET2060) delivers fast, consistent control in a robust, high-voltage package. A coreless motor and dual ball bearings provide smooth, precise movement, while a CNC aluminium middle case and hard-anodised aluminium gears enhance durability. Rated waterproof and built to perform, it offers a swift 0.072s/60° at 8.4V and up to 11.25kg.cm stall torque.
Features
- High performance digital high voltage coreless standard servo
- High-precision aluminium gears with hard anodizing
- Dual ball bearings
- CNC aluminium middle hull
- Waterproof
Specifications
- Dead Band: 1 μs
- Working Frequency: 1520 μs / 330 Hz
- Motor: Coreless motor
- Operating Speed (6.0V): 0.095 sec/60°
- Operating Speed (8.4V): 0.072 sec/60°
- Stall Torque (6.0V): 8.75 kg.cm (121.51 oz/in)
- Stall Torque (8.4V): 11.25 kg.cm (156.23 oz/in)
- Dimensions: 40.5 x 20.5 x 36.5 mm (1.59 x 0.80 x 1.43 in)
- Weight: 59.3 g (2.09 oz)
- Connector Wire Length: JR 265 mm (10.43 in)
Secured by Stripe
eTronix Standard Size Digital Metal Gear Servo - 11.25Kg - 0.07S Manuals & Guides
Specifications
- High performance digital high voltage coreless standard servo
- High-precision aluminium gears with hard anodizing
- Dual ball bearings
- CNC aluminium middle hull
- Waterproof
Dead Band: 1μs
Working Frequency: 1520μs / 330hz
Motor: Coreless motor
Operating Speed (6.0V): 0.095sec/60°
Operating Speed (8.4V): 0.072sec/60°
Stall Torque (6.0V): 8.75 kg.cm (121.51oz/in)
Stall Torque (8.4V): 11.25kg.cm (156.23oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 59.3 g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
Unsure which servo you need for your model?
Visit our Etronix Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: eTronix
- Part No: ET2060
- Barcode: 5056135711699
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
