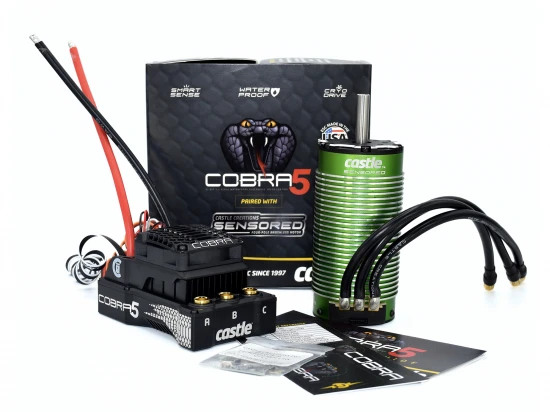

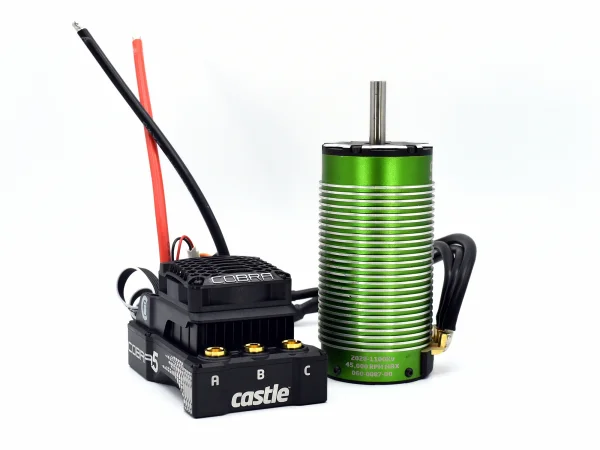

Castle Creations Cobra 5 ESC Combo With 2028-1100KV Motor
Brand: Castle Creations
Part No: P-CC010-0179-02
Out Of Stock
Request Stock NotificationThe Castle Creations Cobra 5 ESC Combo With 2028-1100KV Motor (P-CC010-0179-02) pairs the all-new COBRA 5 8S ESC with a sensored 2028-1100KV motor for high-performance large-scale RC setups. Engineered for precision, durability and power-handling, it introduces enhanced tuning and data tools for a more predictable, drivetrain-friendly driving experience across 1/7th and 1/5th scale applications.
Building on the COBRA 10 and COBRA 8 platform, the COBRA 5 adds adjustable braking curves and independent reverse settings to reduce stress on gears, shafts and differentials while delivering smoother transitions. Enhanced data logging doubles the sampling rate of previous generations, extends logging time, and adds looping so valuable information isn’t lost. New data points, including ESC electrical motor timing and acceleration from the onboard accelerometer, help identify tyre slip and fine-tune efficiency. Hardware upgrades include improved current sensing and thermal protection, a rugged CNC aluminium case potted in waterproof epoxy, a premium forged heatsink with elliptical fins, and an oversized thermally controlled 50mm fan—all within the same footprint as the Mamba XLX2.
What’s Included
- Cobra 5 ESC
- 2028-1100KV Sensored Motor
- 300mm direct connect sensor wire
- Cobra decals
- Castle Link V4 USB Adapter
- Cobra Quick Start Guide
Key ESC Features
- 32-bit processing for smoother motor control and faster response
- Enhanced Data Logging:
- Double the maximum sample frequency of older generations
- 8x increased logging time over older generations
- ESC electrical motor timing data
- Acceleration data via onboard accelerometer
- Looping feature prevents interruptions
- Additional tuning features:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC (5.0V–8.5V in 0.1V steps)
- CRYO-DRIVE technology for improved thermal performance at partial throttle
- Rugged CNC aluminium case, potted in waterproof epoxy
- Premium forged heatsink with elliptical fins
- Oversized factory 50mm cooling fan (thermally controlled)
- Waterproof design for all-weather running
- Auxiliary wire for on-the-fly adjustments via transmitter
- Audible alerts for motor over-temperature and low-voltage cutoff
- Convenient transmitter programming for common settings, plus free access to tuning options and firmware updates via the included Castle Link V4
Specifications (ESC)
- Voltage range: 11.1V–33.6V (up to 8S LiPo)
- Weight: 374g
- Height: 59.5mm
- Length: 101.2mm
- Width: 63.3mm
Suggested Compatibility
- 1/7th and 1/5th scale high-performance RC applications
- 1:5 scale vehicles up to 13.61kg (30lb) and up to 8S LiPo
Part number P-CC010-0179-02 delivers a potent blend of software intelligence and robust hardware, helping drivers make data-driven setup decisions while protecting the drivetrain and maintaining reliable thermal performance.
Secured by Stripe
Building on the success of the COBRA 10 and COBRA 8, we are excited to announce the release of the all-new COBRA 5, engineered for 1/7th and 1/5th scale high-performance RC applications! The COBRA 5 is designed to deliver precision, durability, and unmatched power-handling capabilities.
New tuning parameters include adjustable braking curves and independent reverse settings to reduce the risk of broken gears, snapped driveshafts, and blown differentials, all while experiencing smoother transitions. Users will feel a more realistic and predictable driving experience while saving their drivetrain from unnecessary stress.
Whether tweaking the suspension or altering tire pressure, data-driven decisions lead to optimal performance in an R/C vehicle, and the COBRA SERIES enhanced data logging includes double the maximum sample frequency of older generations, providing more granular data for analyzing performance. Gone are the days of clearing data logs-users will experience increased logging time and enjoy the new looping feature that prevents interruptions in recording. New data points for ESC electrical motor timing and acceleration via the onboard accelerometer provide insight into needed adjustments to detect tire slippage or fine-tune motor efficiency.
The COBRA 5 is packed with a potent combination of hardware and software advancements, making it an indispensable ally in high-performance power systems. Users will benefit from the same footprint as its predecessor, the Mamba XLX2, while an upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups. The COBRA 5 is available to purchase as an ESC-only option or packaged with three Castle 4-POLE 12-SLOT motor options to overpower a wide range of 1/7th and 1/5th scale vehicles
- Cobra 5 ESC
- 2028-1100KV Sensored Motor
- 300mm direct connect sensor wire
- Cobra Decals
- Castle Link V4 USB Adapter
- Cobra Quick Start Guide
For 1:5 scale vehicles weighing up to 13.61Kg (30lbs.) and up to 8s LiPo.
- 32-Bit processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- ESC electrical motor timing data.
- Acceleration data via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.5V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 50mm cooling fan
- Waterproof design for all weather conditions
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
COBRA 5 - 8S - 33.6V ESC - 20A PEAK BEC W/2028-1100KV Specifications
- Voltage Range: 11.1V - 33.6V
- Weight: 374g
- Height: 59.5mm
- Length: 101.2mm
- Width: 63.3mm
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0179-02
- Barcode: 0819326013522
