Hobbywing Multifunction LCD Program Box Pro – HW30502002
Brand: Hobbywing
Part No: HW30502002
In Stock: Usually ships same day
Finance options available at checkout.
Fits These Models (8)
Hobbywing EZRun MAX5 HV G2 Waterproof ESC
Hobbywing MAX6 ESC Combo With 4985-1650Kv Motor
Hobbywing MAX6 ESC Combo With 5687-1100Kv Motor
Hobbywing Platinum 25A 6S V4 Speed Control
Hobbywing Platinum 260A HV Opto V5 ESC
Hobbywing Platinum 260A V5 HV SBEC ESC
Hobbywing XERun XR10 Pro Black G3 ESC
Hobbywing XERun XR10 Pro Black G3 X ESC
Frequently Bought With
Other items customers often buy with the Hobbywing Multifunction LCD Program Box Pro
Description

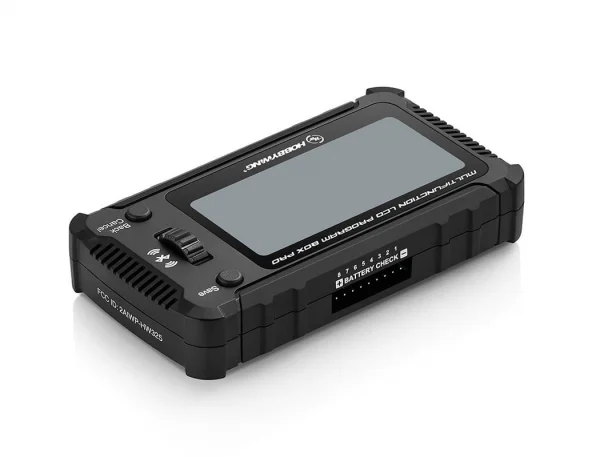

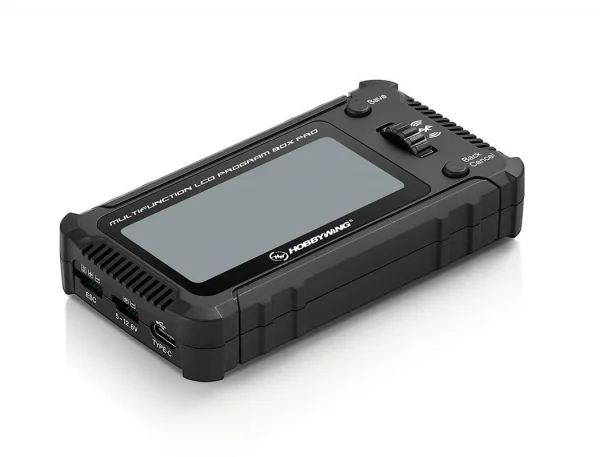

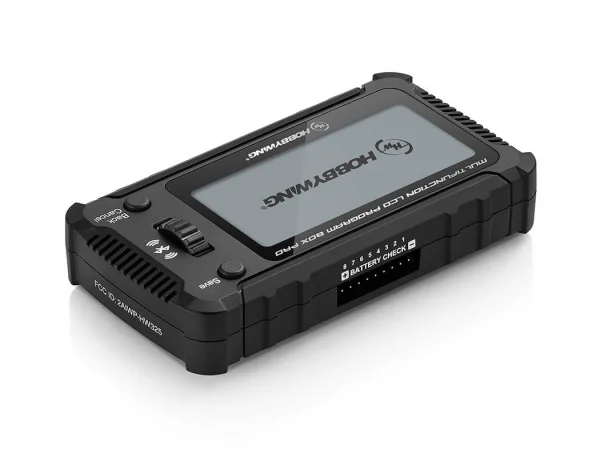

The Hobbywing Multifunction LCD Program Box Pro (HW30502002) is a stand-alone ESC programming and diagnostics tool with a clear LCD screen. It lets you display, set, and share ESC parameters directly on the device, update ESC firmware via a computer using USB Link software, or configure settings through the mobile app when using an OTA Bluetooth module. It can also detect overall lithium battery pack voltage and the individual voltage of each cell.
Key Features
- Independent parameter adjustment using the built-in LCD screen to display, set, and share ESC parameters (import).
- USB computer connection for firmware upgrades and parameter setup via USB Link software.
- OTA Bluetooth module support for mobile app control: set ESC parameters, upgrade firmware, and read data.
- Battery checking: detects overall lithium battery voltage and individual cell voltages.
- Scope of application aligns with ESCs supported by the previous LCD G2 program box and OTA Bluetooth module.
Specifications
- Size: 105.6 × 59 × 24.4 mm (L × W × H)
- Weight: 85 g
- Input Voltage: 5–12.6 V (use a separate battery to power the program box when the ESC has no built-in/external BEC)
- Interfaces: Type-C USB, ESC interface (Futaba plug), power supply interface (Futaba plug)
- Display: LCD
Suggested Compatibility
- Suggested compatibility includes Hobbywing ESCs previously supported by the LCD G2 Program Box and the OTA Bluetooth module.
Secured by Stripe
Hobbywing Multifunction LCD Program Box Pro Manuals & Guides
Specifications
- As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
- Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
- The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
- Detect the overall voltage of the lithium battery and the individual voltage of each cell.
- The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
Size: 105.6x59x24.4mm(LxWxH)
Weight: 85g
Input Voltage: 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
Interface: TYPE-C USB,ESC interface(Futaba plug), Power supply interface(Futaba plug)
Display Screen: LCD
Unsure which Speed Controller you need for your model?
Visit our ESC Compare Centre and find the ideal speed controller for your needs.
Key Info:
- Brand: Hobbywing
- Part No: HW30502002
- Barcode: 6938994400459
- Fitment: Standard Part
Additional Categories:
