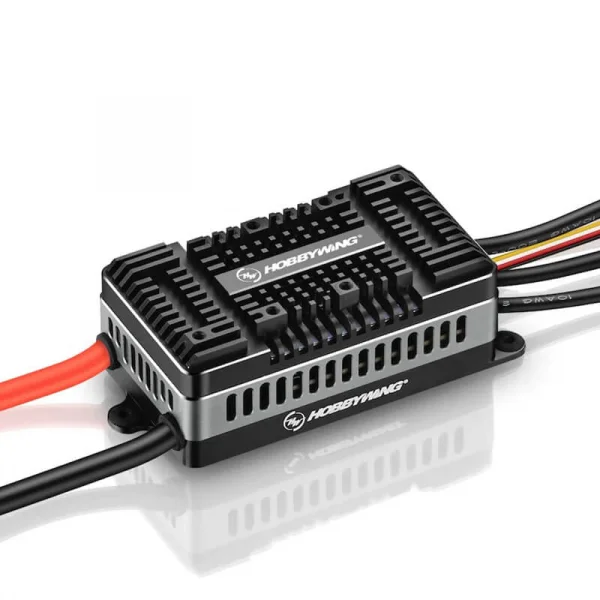

Hobbywing Platinum 260A V5 HV SBEC ESC

Hobbywing Platinum 260A V5 HV SBEC ESC

Brand: Hobbywing

Part No: HW30203100

£449.99 RRP £499.99

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

The Hobbywing Platinum 260A V5 HV SBEC ESC delivers high-current performance for large electric models, combining a 32-bit processor with refined RPM control for precise, consistent throttle behaviour. Its innovative case features side windows and an internal heat path to move heat directly from the board to the outside, helping the ESC run cooler in demanding setups. Part number HW30203100.

Efficiency Optimization Technology with Synchronous Rectification (DEO: Driving Efficiency Optimisation) further enhances throttle response and smoothness while improving overall efficiency to help extend battery life and reduce operating temperatures.

Key Features

  • Advanced heat dissipation design with side windows for efficient cooling.
  • 32-bit processing enhances RPM algorithm precision for responsive control.
  • DEO active freewheeling for faster throttle response, improved flight stability, higher efficiency and reduced temperature rise.
  • Suggested compatibility with multiple data/telemetry protocols, including Mikado VBar System, Futaba S.BUS2, MSH Brain and iKON.
  • Data recording accessible via an OTA Bluetooth module and smartphone app.
  • Multiple protection features.
  • 16 adjustable parameters and multiple flight modes, including Fixed Wing and Helicopter (External Governor, Express Governor, Store Governor).

Specifications

  • Type: Brushless High Voltage ESC
  • Continuous / Peak Current: 260A / 400A
  • Input: 6–14S LiPo
  • SBEC Output: 5–12V; 10A continuous, 30A burst
  • Cables: Battery 1× 8AWG (red/black); Motor 3× 10AWG (black)
  • Programming: LCD Programming Box, OTA Bluetooth Programmer, Separate Programming Port
  • Firmware Upgrade: Yes
  • Telemetry: suggested compatibility with Mikado VBar, Futaba S.BUS2, MSH iKON/Brain, etc.
  • Dimensions: 89 × 50 × 34 mm
  • Weight (incl. cables): 297 g
  • Application: suggested compatibility for 700–800 electric helicopters (main rotor length approx. 690–880 mm)
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

The Platinum V5 260A HV V5 provides constant speed control, ensuring an excellent flying experience without BEC. The innovative housing design, featuring additional windows on the sides and internal structure, enables highly effective heat dissipation. This allows the generated heat to be directly transported from the circuit board to the outside through the shortest path. This is particularly necessary because the integrated 32-bit processor enhances the RPM algorithm's precision, thereby further strengthening the overall performance of the Platinum ESC (Electronic Speed Controller). The finely adjustable speed sensitivity ultimately allows every pilot to find a setting that suits them perfectly.

The ESC also incorporates Efficiency Optimization Technology with Synchronous Rectification (DEO: "Driving Efficiency Optimization" - Active Freewheeling), which brings several advantages at once:

  • Faster throttle response, improved flight stability, and flexibility.
  • Higher driving efficiency and longer battery life.
  • Lower temperature increase of the ESC, ensuring reliability.
Features
  • Efficient cooling through a sophisticated heat dissipation system with windows
  • Supports multiple data protocols e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain, and iKON
  • Includes data recording accessible via the OTA module on the smartphone
  • Multiple protection features
  • 16 adjustable parameters, including 4 flight modes :-
    - Fixed Wing
    - Helicopter - External Governor
    - Helicopter - Express Governor
    - Helicopter - Store Governor
Specifications

Type: Brushless High Voltage
Current cont./peak: 260A/400A
Cells: 6-14S LiPo
BEC Voltage: 5-12V
BEC Continuous Current: 10A
BEC Instantaneous Current: 30A
Cable Battery/Motor: 1x 8AWG (red, black), 3x 10AWG (black)
Programming: LCD Programming Box, OTA Bluetooth Programmer, Separate Programming Port
Firmware upgrade: Yes
Telemetry: Mikado VBar, Futaba S.Bus2, MSH iKon, Brain and etc.
Dimensions: 89x50x34mm
Weight (incl. cable): 297g
Application: 700-800 Electric Helicopter (main rotor length: 690-880mm)




Key Info:
  • Brand: Hobbywing
  • Part No: HW30203100
  • Barcode: 6938994402972
