Description

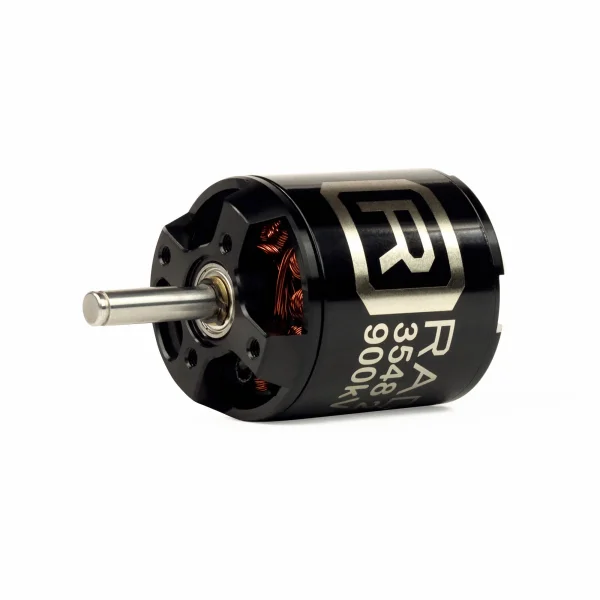

The Radient Brushless Motor 3548 900KV (2-4S), part number RDNM3548900, is a high-torque brushless outrunner motor designed for use in model aircraft. It runs on 2 to 4 cell LiPo batteries and is rated at 1000 W.
The motor is built around a precision-balanced 14 pole, 12 slot rotor with super-thin 0.2 mm stator laminations and high purity copper windings. The can is a CNC-machined 6061-T6 aluminium alloy billet heatsink, and the shaft is stainless steel. Oversized ABEC5 bearings support the rotor, which gives smooth running, a long service life and the ability to turn large propellers. A mounting option at either end of the motor makes it easier to fit in different airframe layouts.
Radient suggest an 80 A speed controller for this motor. Suggested propeller sizes are 10x7 or 12x7 on 3S, and 9x6 or 10x7 on 4S. The motor is black, uses bullet connectors and carries an age recommendation of 14+.
What's Included
- Radient high-torque brushless motor
- Shaft prop drive
- Can prop drive
- X-type mounting bracket
- 4 short countersunk screws for fitting the bracket to the motor
- 4 long cap head screws for installing the can prop drive
Specifications
- Motor size: 3548
- Motor rating: 900KV
- Power: 1000 W
- LiPo cells: 2-4S
- Suggested ESC: 80 A
- Shaft diameter: 5.0 mm
- Bullet connector: 3.5 mm
Secured by Stripe
Radient Brushless Motor 3548 900KV (2-4S) Manuals & Guides
Manuals & Guides
Specifications
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
table { font-family: Arial, sans-serif; border-collapse: collapse; width: 100%; font-size: 14px; } td, th { border: 1px solid #dddddd; text-align: left; padding: 8px; } tr:nth-child(even) { background-color: #f9f9f9; } th { background-color: #4CAF50; color: white; position: sticky; top: 0; } .series-row { background-color: #e2e2e2 !important; font-weight: bold; } Brushless Motor Specifications| 2822 1600KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 8x4 / 9x6 | 3S: 7x4 / 8x4 |
| 2822 2300KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 6x3 / 7x3.5 | 3S: 5x4 / 6x3 |
| 2826 1000KV | 220 | 20 | 2-3S | 3.0 | 3.5 | 45 | 2S: 10x6 / 11x6 | 3S: 9x6 / 10x5 |
| 2826 1300KV | 240 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 9x6 / 10x5 | 3S: 8x4 / 9x5 |
| 2826 1900KV | 250 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 8x4 / 9x5 | 3S: 7x4 / 8x4 |
| 2826 2200KV | 270 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 6x4 / 7x3 | 3S: 5x4 / 6x3 |
| 2830 1000KV | 260 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 10x6 / 11x5.5 | 3S: 9x6 / 10x5 |
| 2830 1300KV | 300 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 9x6 / 10x6 | 3S: 8x6 / 9x6 |
| 2836 880KV | 340 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 10x6 / 11x5.5 | 4S: 9x6 / 10x6 |
| 2836 1100KV | 380 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 2836 1200KV | 390 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 3530 1100KV | 310 | 50 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1050KV | 500 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1300KV | 680 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x5 |
| 3536 1500KV (E2K) | 750 | 80 | 2-4S | 4.0 | 3.5 | 109 | 3S: 8x6 / 9x5 | 4S: 8x4 / 8x5 |
| 3542 1000KV | 750 | 60 | 2-4S | 5.0 | 3.5 | 132 | 3S: 11x5 / 12x6 | 4S: 8x7 / 9x8 |
| 3542 1250KV | 850 | 80 | 2-4S | 5.0 | 3.5 | 132 | 3S: 9x6 / 10x5 | 4S: 8x4 / 9x5 |
| 3548 790KV | 840 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x7 / 13x6 | 4S: 9x7 / 10x8 |
| 3548 900KV | 1000 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 10x7 / 12x7 | 4S: 9x6 / 10x7 |
| 3548 1100KV | 1100 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x5.5 / 11x6 | 4S: 8x6 / 9x6 |
| 4250 800KV | 1250 | 80 | 2-5S | 5.0 | 4.0 | 205 | 3S: 13x6 / 14x7 | 5S: 12x8 / 13x7 |
| 4260 600KV | 1500 | 80 | 3-5S | 5.0 | 4.0 | 275 | 4S: 12x6 / 13x6 | 5S: 11x6 / 12x6 |
| 5045 720KV | 860 | 80 | 3-5S | 6.0 | 4.0 | 195 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5055 570KV | 1550 | 80 | 4-6S | 6.0 | 4.0 | 275 | 4S: 14x7 / 15x6 | 6S: 13x6 / 14x5 |
| 5055 760KV | 1660 | 100 | 3-5S | 6.0 | 4.0 | 275 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5065 335KV | 1660 | 100 | 4-7S | 6.0 | 4.0 | 375 | 6S: 18x8 / 19x7 | 7S: 17x7 / 18x6 |
| 5065 435KV | 1750 | 100 | 4-6S | 6.0 | 4.0 | 375 | 4S: 18x7 / 19x6 | 6S: 17x6 / 18x5 |
| 6354 200KV | 2210 | 100 | 4-10S | 8.0 | 4.0 | 480 | 8S: 19x12 / 22x12 | 10S: 18x12 / 20x10 |
Radient Brushless Motor 3548 900KV (2-4S) Key Features:
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.

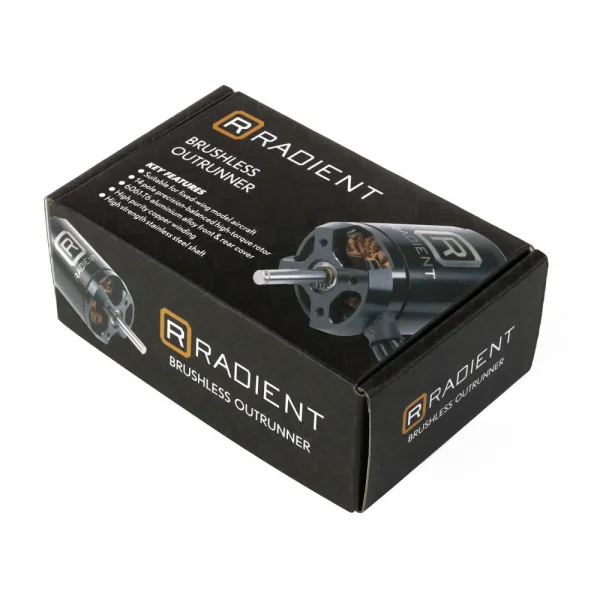

What's in the Box:
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
Radient Brushless Motor 3548 900KV (2-4S) Tech Specs:
- Weight: 231g / 8.15oz
- Shipping Weight: 0.23kg / 0.51lbs
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Radient
- Part No: RDNM3548900
- Barcode: 5051121278132
