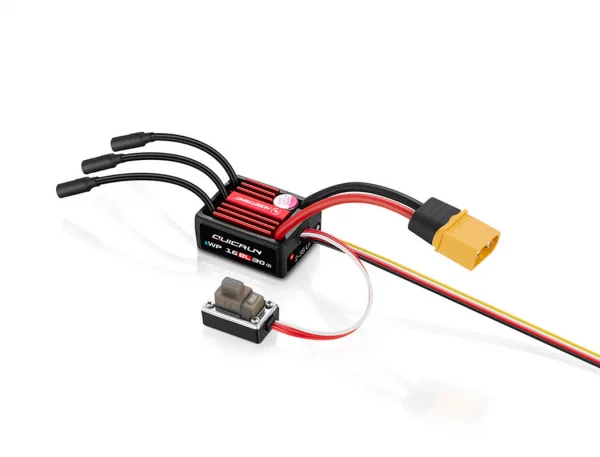

Hobbywing Quicrun WP 16BL30 G2 Brushless Sensorless Mini 30A ESC

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed control.

Intelligent Freewheeling for Lower Heat and Enhanced Performance.

The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size for Easier Installation and Flexible Layout.

Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade Compared to the G1 ESC.

• The BEC’s continuous current has been upgraded from 1A to 2A.
• A peak current of up to 4A.
• The output voltage can be switched between 6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.

High Protection Rating.

IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods.

Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.

Exceptional Value for Money.

Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.

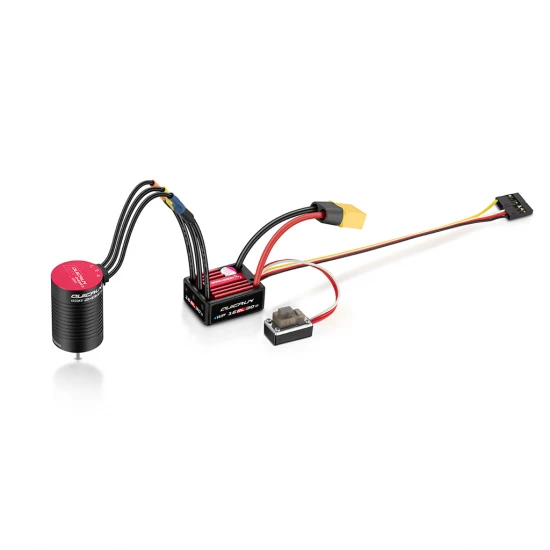

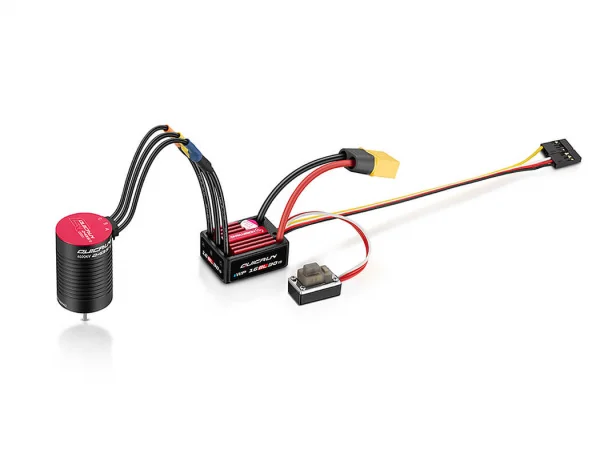

Perfect Match for QuicRun 2030 G2/2435 G3 Motors.

The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility.

The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.

Scale: 1/16th, 1/18th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S LiPo
BEC Output: 6V/7.4V@2A
Power Cord: Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Line: Black-16AWG-60mm*3
Power Plug: XT60
Output Plug: 3.5MM gold female plug

ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
OTA Programmer: Not Supported
Program Port: Shared with Throttle Wire
Data Recording: Extreme value records: Not Supported
Real-time Data: Not Supported
Historical Data (line graph): Not Supported
Firmware Upgrade: Not Supported

Size: 33.4*26.8*15.1mm
Weight: 38.5g( Included wires & connectors)
Supported Motor Types: Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
Applicable Models: 1/16th?1/18th On-Road & Off-Road
Applicable Motor: QUICRUN 2435 G2

Visit our ESC Compare Centre and find the ideal speed controller for your needs.

• Brand: Hobbywing
• Part No: HW30110001
• Barcode: 6938994413275
• Motor Type: Brushless
• LiPo Compatible: Yes
