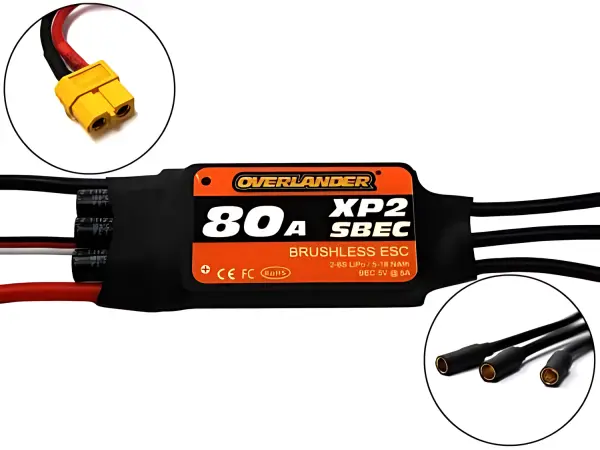

Overlander XP2 80A SBEC Brushless ESC - RTF (with XT60) Speed Controller

The Overlander XP2 80A SBEC Brushless ESC – RTF comes pre-wired with an XT60 battery connector and 4mm gold motor bullets for a clean, ready-to-fly installation. Designed for sensorless brushless setups, this controller delivers smooth throttle response, robust protection features and flexible tuning options. Part number OL-2773.

Key Features

• Comprehensive protection: low voltage cutoff, overheat, throttle signal loss, start-up protection and self-check.
• Suggested compatibility: most sensorless brushless motors.
• Excellent start-up performance, strong throttle linearity and rapid response.
• High motor speed support: up to 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).
• Easy configuration via program card or ESC key; auto-detects throttle neutral point.
• Three timing modes and three start-force settings to match different motors.
• Governor mode for heli applications and reversible motor direction.
• RTF wiring: XT60 battery connector and 4mm gold motor connectors pre-fitted.

Specifications

• Continuous Current: 80A (Burst max 100A for 10 seconds)
• Input Voltage: 5.5–26V (supports 2–6 LiPo or 5–18 NiMH)
• SBEC Output: 5A / 5V
• Dimensions: 86 x 38 x 12 mm
• Weight: 76.1 g
• Battery Leads: 12AWG (red/black)
• Motor Leads: 14AWG (blue)
• Low-resistance PCB construction

Suggested Compatibility & Setup Notes

• Suggested compatibility: suitable for most sensorless brushless motors across planes and helis within the stated voltage/current limits.
• Power: 2–6S LiPo or 5–18 NiMH as specified.
• High RPM capability accommodates a wide range of pole counts (see RPM limits above).
• Servo guidance: manufacturers recommend limiting to approximately one servo per 1A of BEC output. Consider a separate RX pack or uprated UBEC when using four servos or more.
