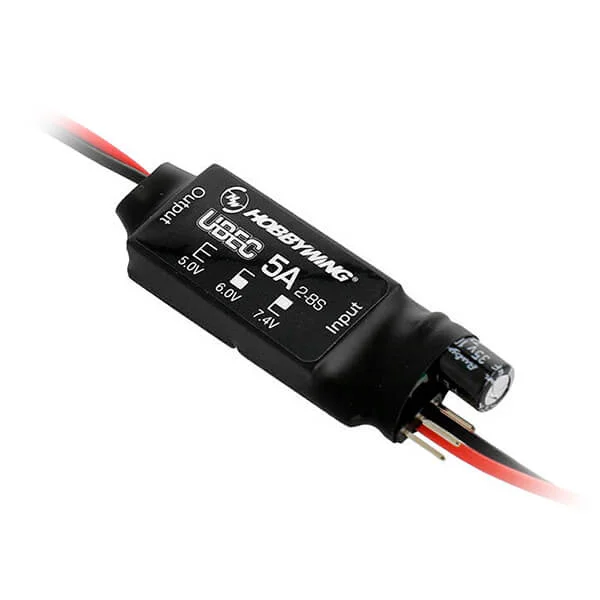

Hobbywing UBEC 5A (2-8S) V2 Air

Brand: Hobbywing

Part No: HW30607000

£10.44 ~~RRP £10.99~~

In Stock: Usually ships same day

Request Price Match Ask a Question Write a Review

The Hobbywing UBEC 5A (2–8S) V2 Air (HW30607000) is a high-efficiency DC-DC voltage regulator designed for RC models. Drawing power from 2–8S LiPo packs, it delivers a stable 5A output with 15A peak capability. The adjustable output voltage (5.0V / 6.0V / 7.4V) supports different servo requirements and is suitable for a range of RC applications, including fixed wing aircraft. An all-metal housing helps dissipate heat and reduces electromagnetic interference, while an LED display indicates operating status.

Features

Highly efficient DC-DC regulator chip with over 90% transmission efficiency.
All-metal housing to conduct heat and reduce electromagnetic interference.
Adjustable output voltage: 5.0V / 6.0V / 7.4V.
Multiple protection functions: overcurrent, output short circuit and overheating protection.
LED display to show UBEC status.

Specifications

Input voltage: 2–8S LiPo
Output voltage: 5.0V / 6.0V / 7.4V (adjustable)
Current (continuous/peak): 5A / 15A
Dimensions: 50 × 17 × 10 mm
Weight: 21 g

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

HOBBYWING UBEC 5A (2-8S) V2 AIR

The UBEC uses a high-performance DC voltage regulator with switching module that draws its voltage from 2-8S LiPos. With it the regulator gives out 5A extremely stable or for a short amount of time 15A.Therefore this UBEC provides power for all kinds of RC modell devices. It is also suitable for fixed wing aircraft.

Features

Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.
An all-metal housing design helps conduct heat and reduces electromagnetic interference.
Adjustable UBEC output voltage (5.0V / 6.0V / 7.4V) applicable for servos with different voltages.
Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
LED display to show the status of the UBEC.

Specifications

Input Voltage: 2-8S LiPo
Output Voltage: 5.0V / 6.0V / 7.4V (adjustable)
Current cont./peak: 5A / 15A
Dimensions: 50x17x10mm
Weight: 21g

Key Info:

Brand: Hobbywing
Part No: HW30607000
Barcode: 6938994400428

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Does this come with any connectors pre-installed, and if not, are there any alternatives? Thanks,

Jakub / 6th May 2024

This has the Futaba plug fitted for the receiver and then bare wires for soldering to the battery connector.

Si @ Wheelspin Models

Is there a switch on the BEC to adjust the Voltage or do I need to use a program card to adjust it? Thanks.

Mark Mccourt / 15th March 2023

This has a small jumper and depending on the position of the jumper is the voltage of the BEC.

Si @ Wheelspin Models
