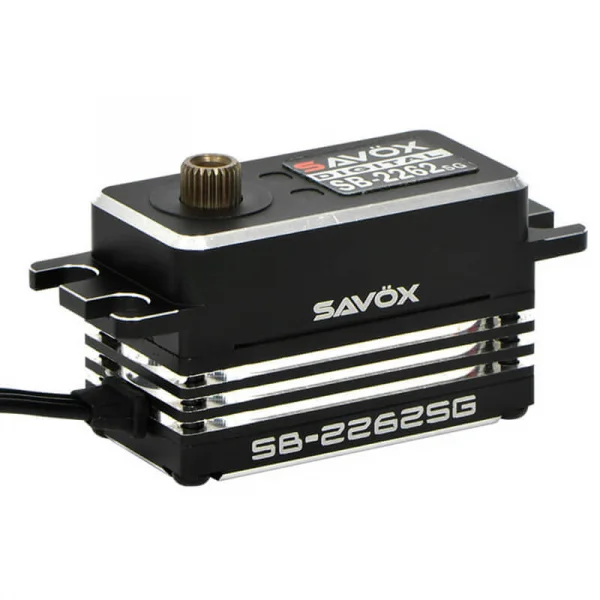

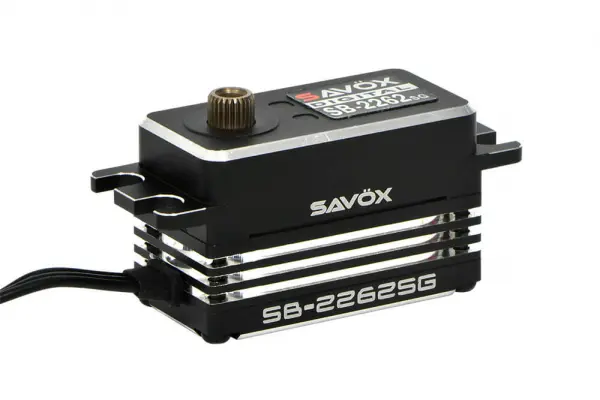

Savox SB2262 Low Profile Brushless Servo - 18kg - 0.10s - Black

Brand: Savox

Part No: SAV-SB2262SG

£111.59 ~~RRP £123.99~~

In Stock: Usually ships same day

Request Price Match Ask a Question Write a Review

The Savox SB2262SG Low Profile Brushless Servo delivers impressive torque and speed in a compact form factor. Engineered with a robust steel geartrain, dual ball bearings and an aluminium case, it provides precise control and smooth operation while saving space and weight. At 6.0V it offers 18kg/cm and 0.10s transit speed, with performance scaling up to 32kg/cm and 0.07s at 8.4V. The 25T output spline supports standard servo horn fitting. Part number: SAV-SB2262SG.

Its low-profile 25.4mm height and 62g weight make it well suited to tight installations. Suggested compatibility includes steering duties in 1/10 surface models, as well as control surfaces in gliders and aeroplanes with thin wing profiles.

Key Specifications

Type: Brushless, low-profile digital servo
Dimensions: 40.8 x 20.2 x 25.4mm
Weight: 62g
Speed (sec/60°): 0.10 @ 6.0V; 0.08 @ 7.4V; 0.07 @ 8.4V
Torque (kg/cm): 18 @ 6.0V; 25 @ 7.4V; 32 @ 8.4V
Gears: Unique steel
Bearings: 2BB
Case: Aluminium (black)
Output Spline: 25T

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

SAVOX LOW PROFILE BRUSHLESS HI-TORQUE DIGI SERVO 18KG/[email protected] - BLACK

When talking about the SB2262SG "It's not the size of the dog in the fight, it's the size of fight in the dog." Combining full steel gears and amazing speed, the low-profile dimensions of this servo makes it perfect for any vehicle that is cramped for space or those looking to save additional weight.

Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles.

Specifications

Dimension: 40.8 x 20.2 x 25.4mm
Weight: 62g
Speed (sec/60°): @6.0v 0.10, @7.4v 0.08, @8.4v 0.07
Torque (kg/cm): @6.0v 18, @7.4v 25, @8.4v 32
Gears: Unique Steel
Bearing: 2BB
Case: Aluminium
Servo Horn: Spline: 25T

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

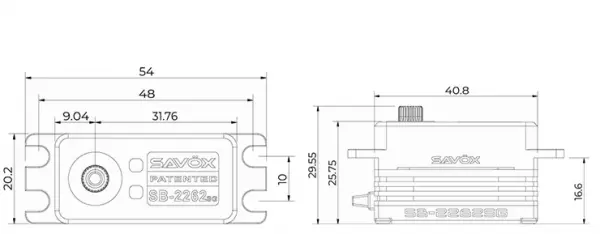

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Key Info:

Brand: Savox
Part No: SAV-SB2262SG
Barcode: 4710006993812
Max Voltage: 6v (NiMh)
Gear Material: Metal
