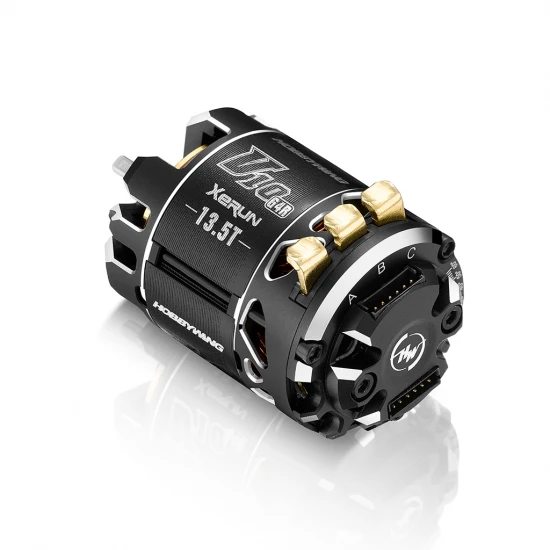

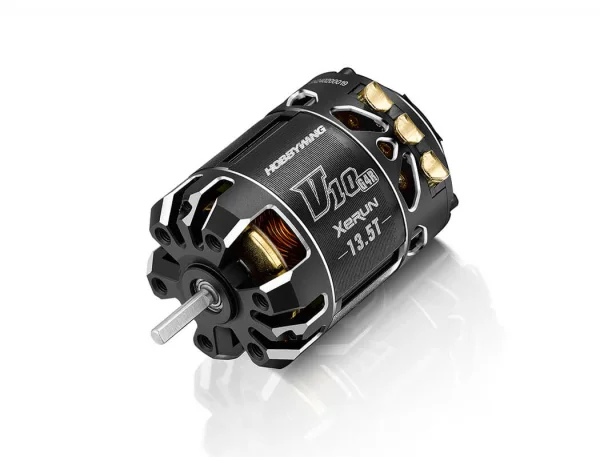

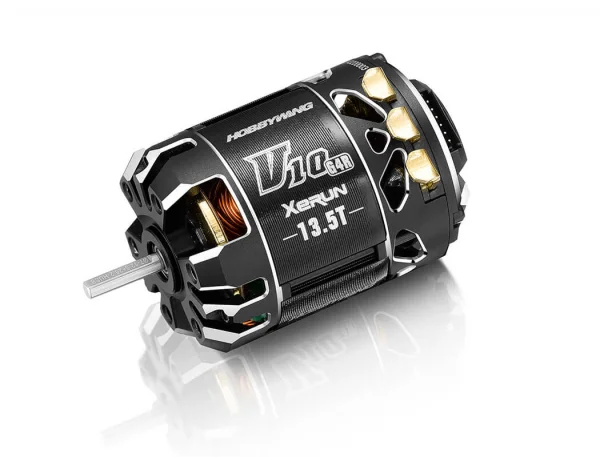

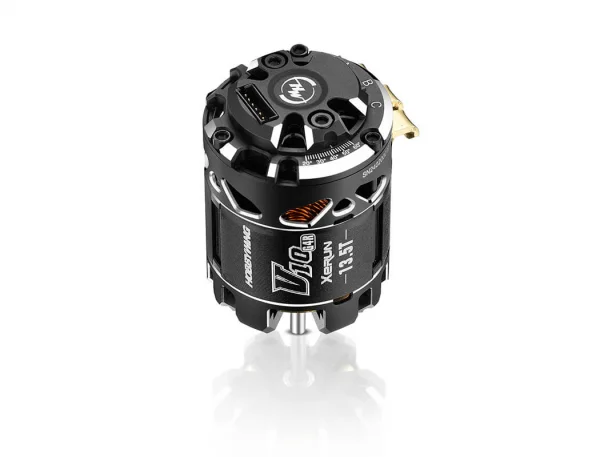

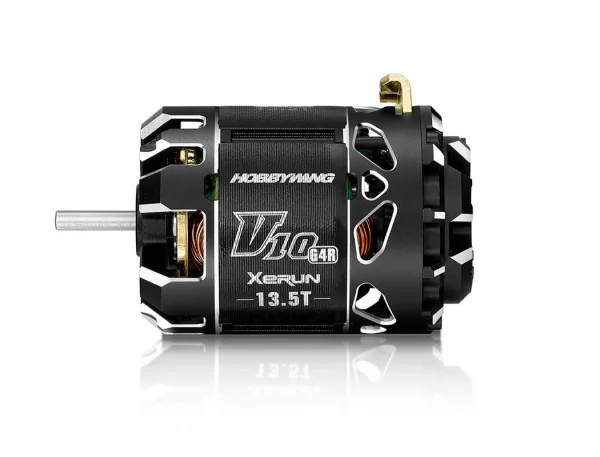

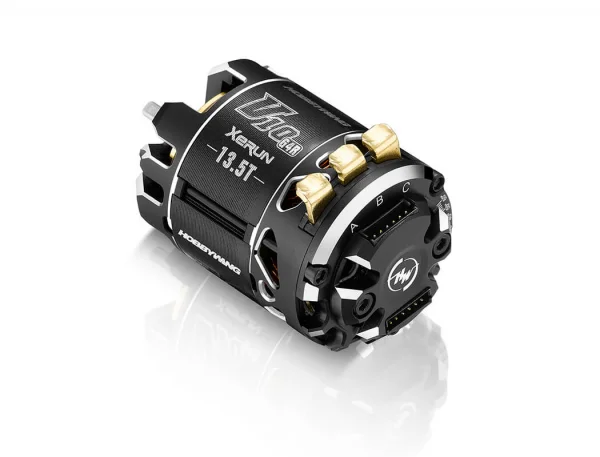

Hobbywing Xerun V10 13.5T G4R Black Motor

The Hobbywing Xerun V10 13.5T G4R Black Motor (HW30401749) is a sensored, 2‑pole brushless motor engineered for 1/10 and 1/12 stock racing. A fully exposed stator core design maximises heat dissipation, while precision internals and high‑temperature materials deliver smooth, linear power and durable performance. Dual sensor ports and widened copper bar spacing make installation and wiring straightforward.

Features

• Excellent performance, specially designed for 1/10 or 1/12 stock racing.
• Suggested compatibility includes pairing with the Hobbywing XR10 Stock Spec G2 ESC.
• Innovative outer diameter structure with a fully exposed stator core to maximise heat dissipation; rear end design further improves cooling.
• Dual sensor interface to suit varied wiring and layout requirements.
• Customised copper bar with widened spacing for easier soldering.
• High‑precision Hall sensor and balanced rotor for outstanding linearity.
• High-performance stator core, 220°C enamelled wire, precision high‑strength bearings, and copper solder tabs for strong current handling and durability.

Specifications

• Scale: 1/10th
• Motor Type: Brushless, Sensored
• Pole Count: 2
• KV Rating: 4100KV
• LiPo Cells: 1–2S LiPo
• No‑Load Current: 5.4 A
• Max Power Output: 297 W
• Current at Max Output: 70.7 A
• Outer Diameter (O.D.): 35.8 mm
• Length: 51.3 mm
• Shaft Diameter: 3.175 mm
• Weight: 158 g
• Front Bearing: D9 x D4 x T4
• Rear Bearing: D8 x D3 x T4
• Suggested ESC: XeRun XR10 G2S
• Suggested Vehicles: 1/12 – 1/10 stock
