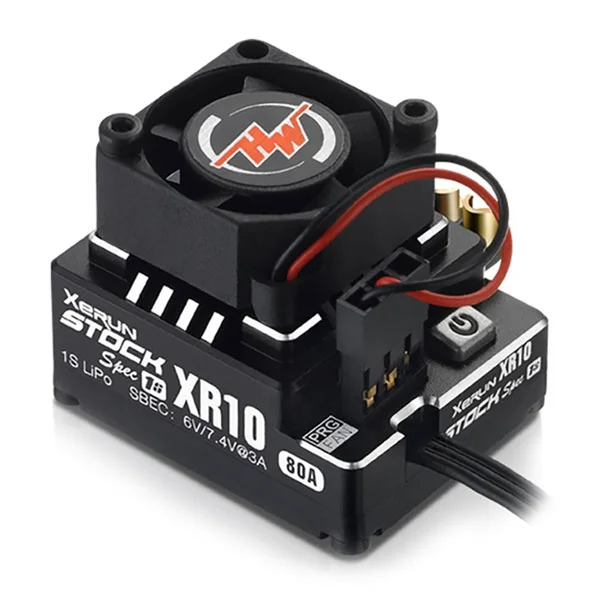

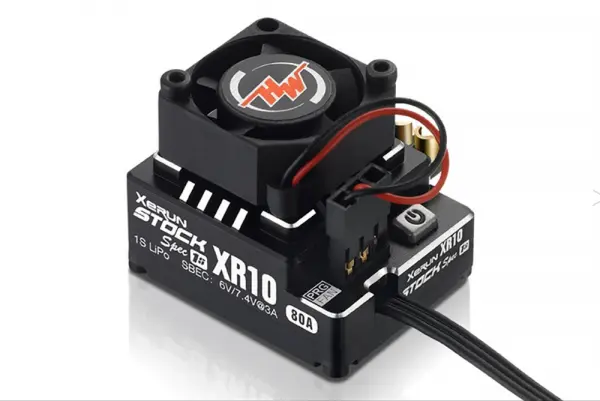

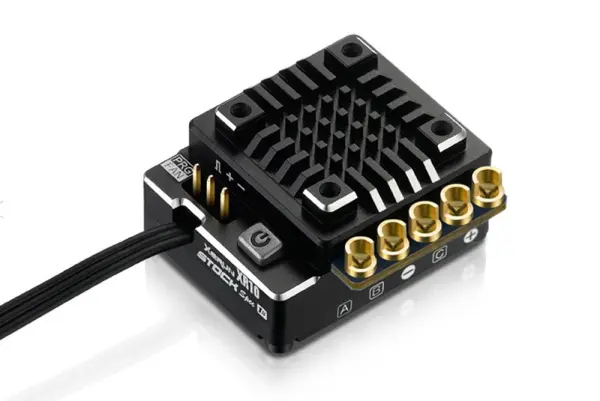

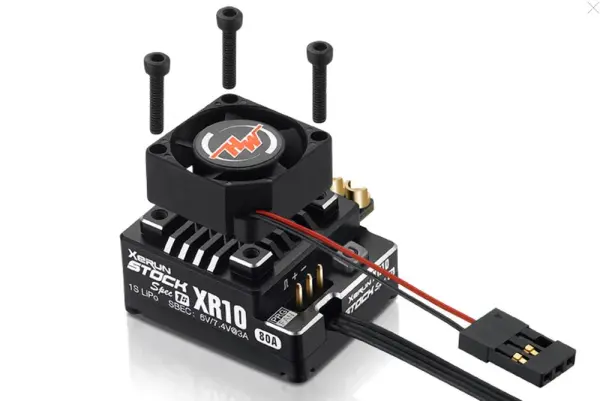

Hobbywin XERUN XR10 Stock Spec 1S ESC

HOBBYWING XERUN XR10 STOCK SPEC 1S SPEED CONTROL

The reliable hardware combined with powerful software (contains 5 common select-to-use profiles) provides an ideal power solution to the 1/10th , 1/12th Stcok 1S class racing. The independent and adjustable throttle & brake PWM frequencies guarantee users the precise and accurate throttle and brake control.

The small size (20% smaller than the standard version XeRun XR10 Pro 1S) saves space and the light weight (only 23.5g w/o wires) provides more weight margin when adjusting the balance of the chassis.

With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

This ESC features the data-logging function which will record the maximum ESC& motor temperatures, the maximum motor RPM, and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.

HobbyWing XeRun XR10 Pro Stock Spec 1S Features:

• Small & Lightweight
• Special Design for Stock 1S Class Racing
• Super Internal BEC
• Adjustable Throttle & Brake PWM Frequencies
• Programming/Upgrading/Data Reading Wirelessly
• Built-in Electronic Switch
• Data-logging Capability

Spec Check:

• Scale: 1/12th
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Waterproof: No
• Cont./Peak Current: 80A/380A
• Input Voltage: 1S Lipo/3-4 Cell NiMH
• BEC Output: 6V/7.4V@3A
• Input Wires: Black-14AWG-200mm*2
• Output Wires: Black-14AWG-200mm*3
• Input Connectors: No
• Output Connectors: No
• LCD Program Box: Supported
• WiFi Module: Supported
• Firmware Upgrade: Supported
• Size: 31.6x25.8x16.2mm
• Weight: 23.5g (w/o Wires)
