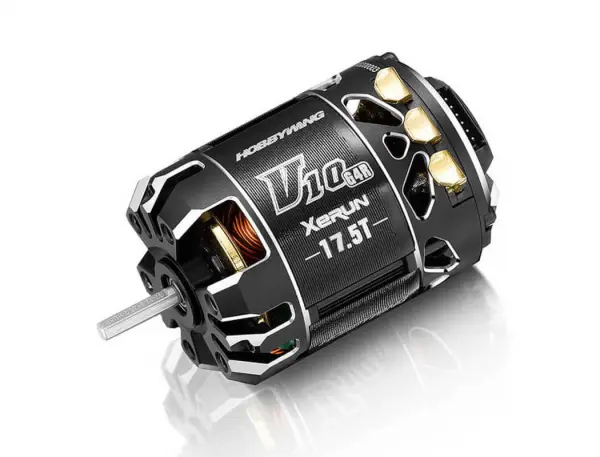

Hobbywing Xerun V10 17.5T G4R Black Motor
Brand: Hobbywing
Part No: HW30401748
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Xerun V10 17.5T G4R Black Motor
Description
The Hobbywing Xerun V10 17.5T G4R Black Motor (HW30401748) is a sensored brushless 17.5T unit engineered for 1/10 and 1/12 stock-class racing. Its fully exposed stator core increases the heat dissipation area, while the rear of the can is shaped to further improve cooling efficiency. The result is consistent on-track performance with stable temperatures across demanding runs.
Precision hardware underpins the V10 G4R. A high-precision Hall sensor and a carefully balanced rotor deliver smooth, linear throttle response. Premium materials – including a high‑performance stator core, 220°C high-temperature enamelled wire, high-strength bearings and copper solder tabs with exceptional current endurance – combine to offer durability and efficiency. A dual sensor interface supports flexible wiring layouts, and the widened spacing on the customised copper bar makes soldering motor wires easier and cleaner.
Features
- Excellent performance, specially designed for 1/10 or 1/12 stock racing
- Designed to pair with the Hobbywing XR10 Stock Spec G2 ESC (suggested compatibility)
- Innovative fully exposed stator core maximises heat dissipation; rear-end design further improves cooling
- Dual sensor interface for flexible wiring and layout requirements
- Customised copper bar with widened spacing to simplify soldering
- Built-in high-precision Hall sensor and balanced rotor for outstanding linearity
- High-performance stator core, 220°C enamelled wire, high-precision bearings and copper solder tabs for performance and durability
Specifications
- Scale: 1/10th
- Type: Brushless (sensored)
- Pole Count: 2
- KV Rating: 3150KV
- LiPo Cells: 1–2S LiPo
- No-load Current: 4.6A
- Max Power Output: 213W
- Current at Max Output: 49.4A
- Outside Diameter: 35.8mm
- Length: 51.3mm
- Shaft Diameter: 3.175mm
- Weight: 158g
- Front Bearing: D9 × D4 × T4
- Rear Bearing: D8 × D3 × T4
- ESC (suggested compatibility): Hobbywing XeRun XR10 G2S
- Vehicles: 1/12 – 1/10 stock
Secured by Stripe
Hobbywing Xerun V10 17.5T G4R Black Motor Manuals & Guides
Specifications
- Excellent performance, specially designed for 1/10 or 1/12 STOCK racing.
- Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC.
- The innovative outer diameter structure of a fully exposed stator core maximizes the heat dissipation area, the rear end of the motor is designed in a way to further improve heat dissipation.
- Dual sensor interface is designed to meet various wiring/layout requirements.
- The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
- The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
- The use of high-performance stator core, 220°C high-temperature-resistant enamelled wire, high precision high strength bearings and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
KV Rating: 3150KV
LiPo Cells: 1-2S LIPO
No-load Current(A): 4.6A
Max Power Output(W): 213W
Current at Max Output(A): 49.4A
O.D.(mm): 35.8
Length (mm): 51.3
Shaft Diameter (mm): 3.175
Weight (g): 158g
Front Bearing: D9 x D4 x T4
Rear Bearing: D8 x D3 x T4
ESC: XeRun XR10 G2S
Vehicles: 1/12 - 1/10 Stock
Key Info:
- Brand: Hobbywing
- Part No: HW30401748
- Barcode: 6938994429153
