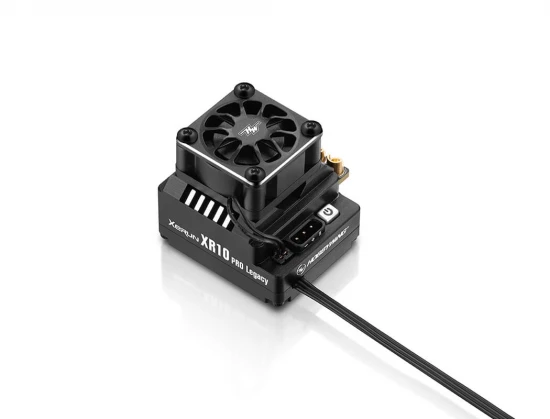

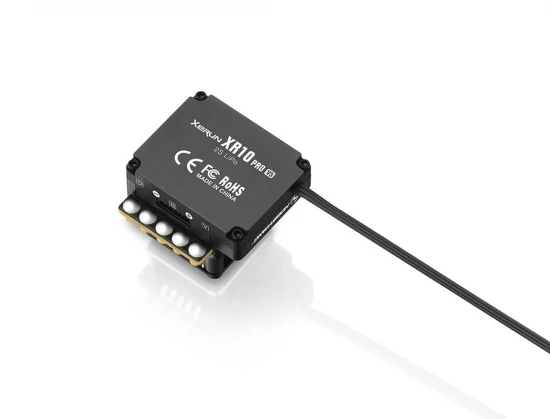

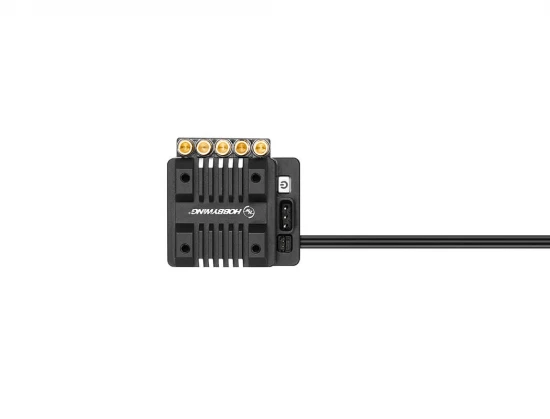

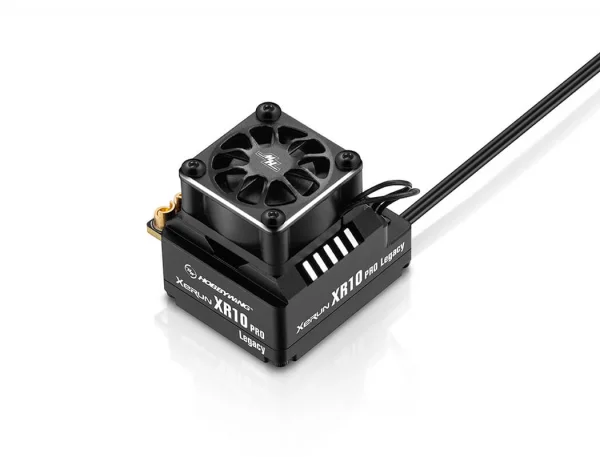

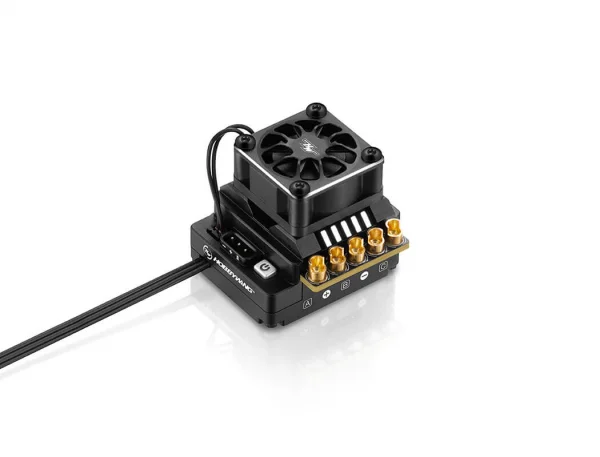

Hobbywing XERun XR10 Pro Legacy Speed Control - Black

Legendary Design, Proven Performance, Amazing Value.

Built-in Reverse Polarity Protection.

Equipped with a built-in reverse polarity protection circuit, the ESC offers worry-free operation by preventing damage from incorrect battery connections, ensuring reliability and peace of mind every time you power up.

Note: Full reverse polarity protection of the entire power system can only be achieved when using the optional non-polarized capacitor. The standard ESC is equipped with capacitor that is not protected against reverse polarity. If the battery is connected incorrectly, the capacitor may be damaged; however, the ESC itself will not be affected.

Competition-Ready, Driven by a Powerful Core.

Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimisation and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.

Smart Fan Circuitry.

The Legacy now includes Smart Fan technology that runs the fan only when needed. This temperature controlled fan circuit prolongs fan life and improves overall performance.

Softening Function for Enhanced Control.

Updated to include HOBBYWING's patended Softening, the Legacy now includes a useful tool for tuning tricky track conditions.

External OTA Makes Parameter Tuning and Firmware Upgrades More Convenient.

Pair the ESC with the OTA Bluetooth module to access wireless connectivity with your smartphone.

Using the mobile app, you will effortlessly adjust parameters, read data, and upgrade firmware improving quality of life.

Real-time Data Logging Function for Easy Access to Power System Status.

Connect the ESC to the OTA Bluetooth module and pair it with the HW Link mobile app to access real-time data monitoring. Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in memory records everything for detailed post-race analysis to fine-tune performance like never before.

Note: Due to Bluetooth transmission limits, the effective range is approximately 5 meters.

Designed for All Forms of Racing.

Built on the stable and powerful XR10 Pro series platform, this ESC is perfect for 1/10th on-road and off-road racing across both Modified and Stock classes.

Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: No
Cont./Peak Current: 150A/1000A
Input Voltage: 2S LiPo
BEC Output: 5V-7.4V,5A
Input Wires: Black-13AWG-200MM*2
Output Wires: Black-13AWG-200MM*3
Input Connectors: No
Output Connectors: No
ESC Programing via:-
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Independent program port
Data Recording:-
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 37.7*37.0*33.2mm
Weight: 94.2g( Included wires & connectors)
Motors: Sensorless Brushless/Sensored Brushless Motor
Vehicles: 1/10th On-Road/Off-Road Racing,1/10th Drift/F1/Rally
KV Rating/T Count: 3650 (540) size 2-pole motor, On-Road ≥ 4.5T≥ Off-Road ≥ 5.5T

Visit our ESC Compare Centre and find the ideal speed controller for your needs.

• Brand: Hobbywing
• Part No: HW30112800
• Barcode: 6938994408769
• Motor Type: Brushless
• LiPo Compatible: Yes
