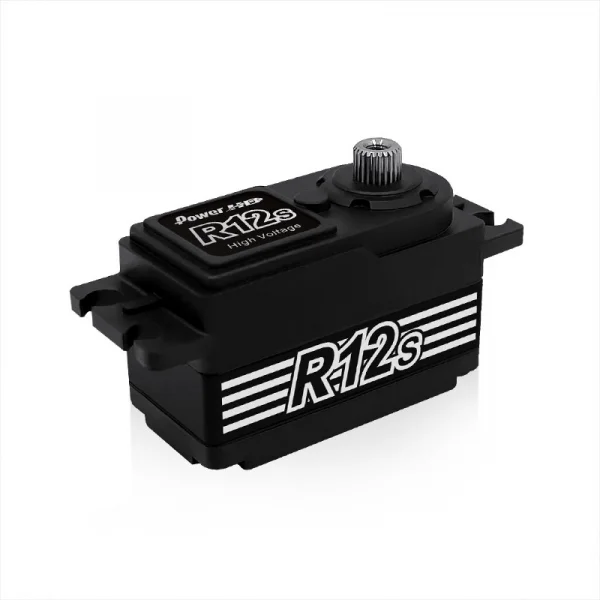

Power HD R12S Metal Gear Digital Servo - 12kg - 0.06s

The Power HD R12S (HD-R12S) is a high-voltage, coreless, digital servo housed in an aluminium case with a robust metal gear train. Delivering up to 12.0 kg-cm of torque at 7.4V with a rapid 0.06s transit time, it offers smooth, precise control aided by dual ball bearings. Its compact 41.0 x 20.0 x 26.4 mm footprint and 48 g weight make it a versatile choice where speed, power and durability are essential.

Specifications

• Torque: 9.0 kg-cm (125.0 oz/in) @ 6.0V; 12.0 kg-cm (166.6 oz/in) @ 7.4V
• Speed: 0.07 s @ 6.0V; 0.06 s @ 7.4V
• Operating voltage: 6.0–8.4V DC (HV)
• Motor type: Coreless
• Control: Digital
• Bearing type: Ball bearing x 2
• Gear type: Titanium & aluminium
• Case: Aluminium
• Working frequency: 1520μs / 333Hz
• Operating temperature: -20℃ to 60℃
• Size: 41.0 x 20.0 x 26.4 mm (1.61 x 0.79 x 1.04 in)
• Weight: 48.0 g (1.69 oz)
