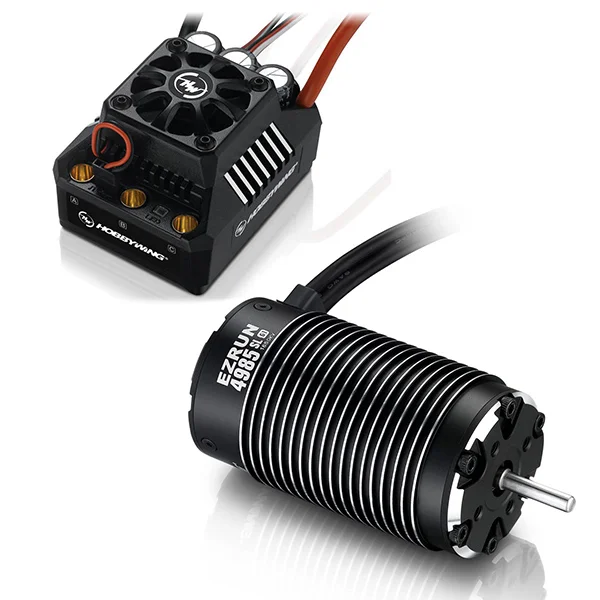

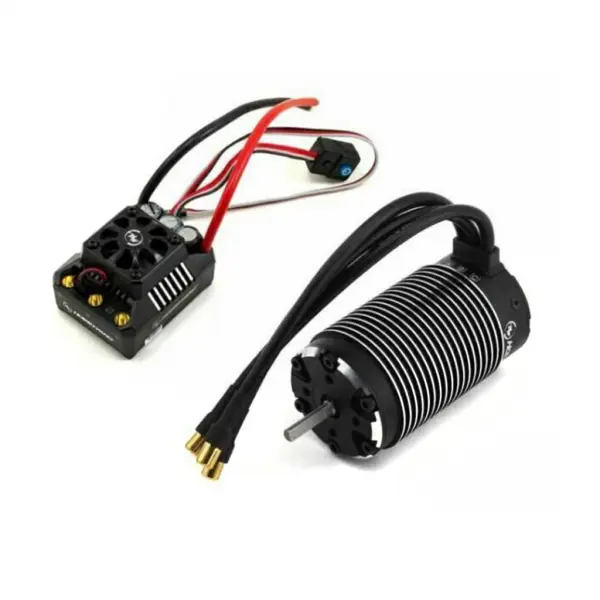

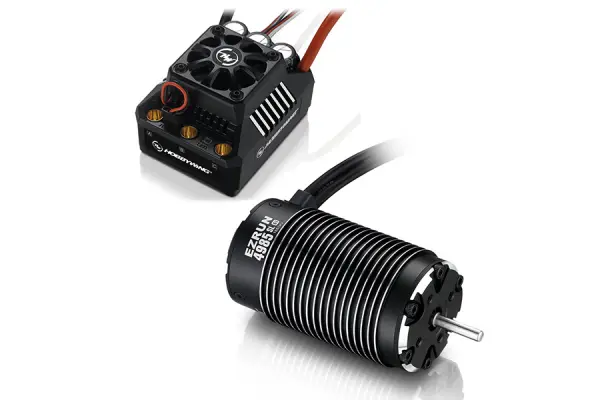

Hobbywing MAX6 ESC Combo With 4985-1650Kv Motor
Brand: Hobbywing
Part No: HW38010801
In Stock: Usually ships same day
The Hobbywing EZRun MAX6 ESC Combo with 4985‑1650Kv motor (HW38010801) delivers heavy‑duty 8S brushless performance for large‑scale RC. Built with rugged components and advanced firmware, the MAX6 provides immense punch, stable output and precise control, paired with the high‑torque 4985 sensorless motor for powerful acceleration and high‑speed runs.
The MAX6 ESC features a waterproof, dust‑proof and shock‑resistant design, an advanced electronic on/off switch rated for over 50,000 cycles, and built‑in anti‑spark circuitry to protect high‑voltage battery connectors. A switchable 6V/7.4V high‑voltage BEC supports demanding servos, while extensive parameter tuning and support for the optional WiFi module make setup quick and flexible.
Key Features
- High reliability and durability for large‑scale RC applications
- Waterproof and dust‑proof construction for all‑weather running
- Built‑in anti‑spark system for safer high‑voltage connections
- Advanced, secure electronic switch with long service life
- High‑voltage, switch‑mode BEC with selectable 6V/7.4V output
- Regular firmware updates (free of charge) for ongoing improvements
- Maintenance‑free design
- High‑torque, high‑efficiency 4985 sensorless brushless motor
- Solid construction with quality materials
ESC Specifications (EZRun MAX6)
- Scale: 1/6th, 1/7th
- Type: Brushless, sensorless
- Waterproof: Yes
- Continuous/Peak Current: 160A / 1050A
- Input: 3–8S LiPo or 9–24 cells NiMH
- BEC Output: Switch mode, 6V/7.4V, 6A
- Input Wires: Red 10AWG 200mm ×1 / Black 10AWG 200mm ×1
- Output Wires: Black 10AWG 200mm ×3
- Input Connectors: None
- Output Connectors: 6.5mm female gold connectors (pre‑soldered to PCB)
- Cooling Fan: 35×35×10mm; voltage range 5–7.4V
- Program Port: FAN/Program port; WiFi module supported
- Size: 70.0 × 56.0 × 46.5mm
- Weight: 240g
Motor Specifications (EzRun 4985‑1650Kv)
- Scale: 1/6th, 1/7th
- Type: Brushless (sensorless)
- Pole Count: 4
- KV Rating: 1650Kv
- LiPo Cells: 3–6S
- No‑load Current: 5.4A
- Diameter: 49.0mm
- Length: 86.5mm
- Shaft Diameter: 5.0mm
- Weight: 587g
Suggested Compatibility
- Large 1/6th and 1/7th scale vehicles
- Examples often cited include models such as the Traxxas XO‑1 and CEN GST‑E
With instant full‑torque start‑ups, rock‑solid throttle stability and robust thermal and electrical protection, this combo is an excellent choice for aggressive bashing and high‑speed on‑road or off‑road builds that demand reliable 8S power.
Secured by Stripe
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error. This ESC is applicable to various 1/6th & 1/7th scale vehicles like the Traxxas XO-1, and also suitable to various 1/8th scale heavy vehicles like the CEN GST-E. It's the ideal option for high-end aggressively powered builds.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles. The MAX6 also features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).
The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- High Voltage Built-in BEC
- Advanced and Secure Electronic Switch
- Regular Firmware Updates - Free of Charge
- Built-in Anti-Spark System
- Maintenance Free
- Scale: 1/6th, 1/7th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 160A/1050A
- Input: 3-8S LiPo/9-24 Cells NiMH
- BEC Output: Switch Mode: 6V/7.4V,6A
- Input Wires: Red-10AWG-200mm*1/Black-10AWG-200mm*1
- Output Wires: Black-10AWG-200mm*3
- Input Connectors: No
- Output Connectors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
- Fan Size: 35.0x35.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Size: 70.0x56.0x46.5mm
- Weight: 240g
- High Torque
- High Efficiency
- Solid Construction
- Quality Materials & Excellent Design
- Scale: 1/6th, 1/7th
- Brushed/Brushless: BL
- Sensored/Sensorless: SL
- Pole Count: 4
- KV Rating: 1650
- LiPo Cells: 3-6S
- No-load Current(A): 5.4
- O.D.(mm): 49.0
- Length (mm): 86.5
- Shaft Diameter (mm): 5.0
- Weight (g): 587
Key Info:
- Brand: Hobbywing
- Part No: HW38010801
- Barcode: 6938994407465
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
Totally amazing
WRITE A REVIEW
Questions & Answers
I am sorry we do not sell one that will fit.
You would look at something like this P-CC110004
If you can physically get it in yes it would work fine but it is larger than the original motor so may need an aftermarket motor mount (which we do not supply).
That motor is too big - something like this would work nicely HW38020376
Gearing is a very personal choice depending on what you are doing with the car etc, with the 1650kv motor you will be able to gear this fairly high.
Running this motor on 6s you could gear this fairly high, so something like a 29 tooth ARA311049
I would use the standard gearing that comesfrom the factory if you are not looking for overall top speed.
you will need to solder the battery connector on to this ESC
This motor would be to big for the standard motor mount on the sledge.
Some soldering will be required with this combo
Yes, I've seen customers run these in the EXB with great results
Hard to quantify exactly how much more speed, but this would produce a lot more power
I think 6S is probably your sweet spot, MAX5 would be safe on 8S
Apologies but at present under the pandemic we are not soldering sorry
These don't have a connector - they are ready for you to solder on your choice :-)
Likely a bit big for the VS - you'd be better with say HW38010400
These do not have a battery connector
I believe so yes
Yes we can do this for you - just give our team a call on 01543 577278
The motor is 49mm diameter, 86.5mm long.
The ESC is 70 x 56 x 46.5mm
