Brand: Hobbywing

Part No: HW38010400

£179.99 RRP £199.99

In Stock: Usually ships same day

Collect Instore

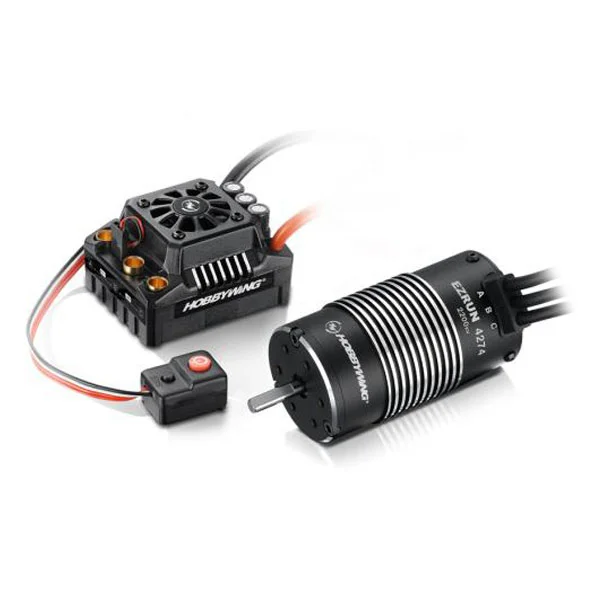

HOBBYWING EZRUN MAX8 T-PLUG & EZRUN 4274SL SENSORLESS MOTOR COMBO

The MAX8 ESC provides the optimal upgrade solution for many popular 1/8th scale monster trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT. It’s also applicable to other trucks and buggies. The whole ESC except the cooling fan is basically maintenance free. Besides, the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.

Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.

The ESC has strong outbreak and stable output, so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up.

The world’s 1st 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output voltage (6V/7.4V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers. The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.

Outstanding waterproof and dust-proof capability makes the MAX8 applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.

HobbyWing EzRun MAX8 V3 Features:

  • High Reliability & Durability
  • Great Flexibility & Versatility
  • Advanced and Secure Electronic Switch
  • Applicable to All Weather Conditions
  • Super Built-in BEC
  • Plug and Play
  • Almost Maintenance Free

ESC Spec Check:

  • Scale: 1/8th
  • Brushed/Brushless:BL
  • Sensored/Sensorless: SL
  • Waterproof: Yes
  • Cont./Peak Current: 150A/950A
  • Input: 3-6S LiPo/9-18 Cells NiMH
  • BEC Output: Switch Mode:6V/7.4V,6A
  • Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
  • Output Wires: Black-10AWG-200mm*3
  • Input Connectors: XT90
  • Output Connecotors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
  • Fan Size: 30.0x30.0x10.0mm
  • Fan Voltage Range: 5-7.4V
  • WiFi Module: Supported
  • Program Port: FAN/Program Port
  • Size: 59.8x48.0x36.8mm
  • Weight: 174g

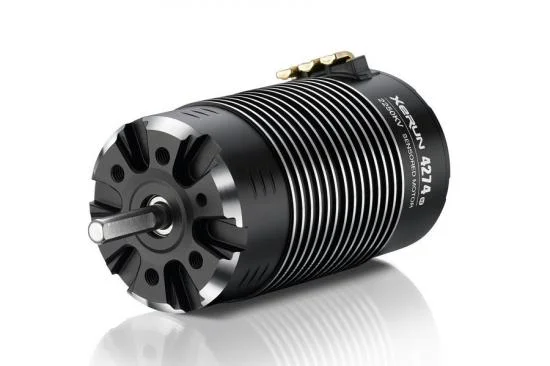

The 4 pole design of the EzRun 4274 will guarantee the motor to produce very large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain.

Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% meaning that if the energy consumption of the motor is at 1000 watts your guaranteed that 900 watt of that power will be available and no less

The motor housing is made from hard anodized aluminum, motor windings are wound from pure oxygen-free double insulated copper wire, the advanced rotor structure is designed to handle high temperature from the use of rare earth magnets, output shaft from high quality polished alloy steel and the imported bearings which are implemented are high precision metal caged for a minimum to zero friction which in turn will guarantee strength, outstanding performance, high durability and smoothness of the motor.

This motor can also provide a powerful upgrade solution for all popular 1/8th scale monster trucks such as TRAXXAS E-REVO, E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT plus other trucks and buggies.

HobbyWing EzRun 4274SL G2 Features:

  • High Torque
  • High Efficiency
  • Solid Construction
  • Quality Materials & Excellent Design

Spec Check:

  • Scale: 1/8th
  • Brushed/Brushless: BL
  • Sensored/Sensorless: SL
  • Pole Count: 4
  • KV Rating: 2200
  • LiPo Cells: 2-6S
  • No-load Current(A): 5
  • O.D.(mm): 42.0
  • Length (mm): 74.0
  • Shaft Diameter (mm): 5.0
  • Weight (g): 418



  • Brand: Hobbywing
  • Part No: HW38010400
  • Barcode: 6938994407366
Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Reviews
5/5 (3 reviews)
16th March 2019

Anyone who buys this for hobao mt I have found the a 17t pinion and 32t spur works perfect 16t the motor gets a little warm and a 18t it starts to get fairly warm to hot after a while if you have a cooler (castle creations) on it it should be fine but wouldn't recomend it 17t I have found is the sweet spot (2200kv motor) for tempreture and power it's an amazing bundle overall for the price plenty of power for a 1/8 Truck lots of fun just need another set of battery's as have so much fun and get decent run times verry happy

1st May 2020

amazing fitted this in to an old school rex-x with a bit of tinkering here and there and a 3s lipo this thing pops faster then the old nitro it ust to be big thanks..

3rd November 2021

Hi haven’t seen this question yet, so can I run 2x 2s lipo batts? As I have a good few of these batts, tia

WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Would this be any more powerful than the arrma Notorious stock motor and ESC
Rafferty / 10th August 2024

That would give similar performance.

Rich @ Wheelspin Models
Hi ive got a hobao hyper ss and ive been trying to find the best combo would this be better and faster than Hobbywing EZRUN MAX8 G2 ESC Combo With 4278SD 2250Kv G2
Steven / 26th November 2023

That is slightly less kv so would be slightly slower , the  EZRUN MAX8 G2 ESC Combo With 4278SD 2250Kv G2 would be the best one.

Steve @ Wheelspin Models
will this fit the Traxxas Maxx V1?
Luis Amor / 23rd May 2023

Yes this will fit in that car, it would be a tight squeeze with the bigger motor and ESC

Si @ Wheelspin Models
will this fit the Traxxas Maxx
Luis Amor / 22nd May 2023

Yes, this will fit in that car

Si @ Wheelspin Models
Hi, would this combo work in a rc8b4e buggy, for leisure use not competition. If not, can you suggest what would work. Thanks, Neil Davies
Neil Davies / 3rd May 2023

Yes that would be perfect.

Steve @ Wheelspin Models
What main spur gear is suitable for this motor for bashing and with and 15-16 pin gear without the motor overheating
Leon / 27th March 2023

This would depend on things such as surface, are you bashing or speed running.

Gearing is something that is not set in stone and very personal to the individual driver,

Si @ Wheelspin Models
How would I go about changing the XT90 adaptor to deans adaptor to fit my deans lipo battery's
Leon / 27th February 2023

Use these O-LGL-ADAPT17

Steve @ Wheelspin Models
What lipo battery connection does this have and also will this combo need programming??
Leon Hollings / 20th February 2023

These come with XT90 connectors, it will work straight from the box and not need any programming to get working.

Si @ Wheelspin Models
Hobbywing EZRUN MAX8 ESC Combo With 2200kv 4274SL Motor - XT90 Connector. Does this come with an extra catpack? Thanks
Luke Creed / 14th September 2022

Yes the cap pack is included and needs soldering if running 6s lipo.

Steve W @ Wheelspin Models
what dual fan would fit onto this motor ?
Josh / 17th July 2022

Not a dual fan but these would fit for you.  P-CC110004   or  HW86080130

Si @ Wheelspin Models
Will this fit straight into the traxxas maxx and can I still use the pin set up on the motor mount?
Neil Stow / 27th April 2022

No,  due to the motor mount setup on the Maxx you would only be able to use the Traxxas motor, without changing to an aftermarket motor mount.

Si @ Wheelspin Models
Does this come with a single connector or 2 in a loop , ready to take 2 battery’s ??
Kern Death / 23rd November 2021

This is set to take 2 lipos , but you also get a loop connection.

Anthony @ Wheelspin Models
Hi would this fit onto my e revo 2.0?
Dean / 14th October 2021

It would do yes, you would just need to stick the esc down to the chassis as it will not screw into place like the VXL-6s esc.

Anthony @ Wheelspin Models
Does this combo run its esc battery terminals in series.. ie two 3s lipos on deans
Chris / 19th May 2021

Yes is runs 2x XT90 connections.

Anthony @ Wheelspin Models
Is it only xt90 you have in-store?
Daniel Hunter / 26th April 2021

Yes, that's all these are available with from Hobbywing now.

Ben @ Wheelspin Models
Do these have connectors soldiered on and what are they
Charlie / 15th April 2021

Yes, these have twin XT90 connectors pre fitted

Ben @ Wheelspin Models
Could I put xt-60 plugs on this esc because that's what I have get on my lipo's and what batteries would you recommend for all round bashing
Wayne / 14th April 2021

You can if you wish. XT90 would be better suited for the current draw however.

We normally use say 2577XT90 or O-GC3S5000-50X9 packs with these (2 each)

Ben @ Wheelspin Models
Hi there im looking at the hobbywing esc max 8 combo. It comes with the xt90 connectors, but i run traxxas connectors.
Steven / 11th April 2021

Sure, you can cut those off and solder on some Traxxas connectors eg 3070X

Ben @ Wheelspin Models
Can I just plug and go with one 4S or do I need a specific connector to run a single lipo?
Clarence / 29th March 2021

These have twin XT90 connectors fitted, so you would just need an XT90 loop connector if you wanted to run a single pack - eg OL-3288 or AR390204

Ben @ Wheelspin Models
What would be better x2 3s or x1 6s running in a converted Protech RS 1/6
Neal Rhodes / 14th March 2021

Either will work - we tend to prefer 2 x 3S for ease of use

Ben @ Wheelspin Models
How much faster would this make an E Revo 2.0 with stock power system?
Stuart Fletcher / 24th February 2021

This will be similar to the Traxxas 6S system

Ben @ Wheelspin Models
HobbyWing EzRun MAX8 V3 is the motor fully waterproof?
Adrian / 13th February 2021

The motors are inherently fine underwater. But just bear in mind additional maintenance will be required to prevent rust etc

Ben @ Wheelspin Models
Hi does this come with 2 x xt90 connectors or 1
Daniel Ward / 6th February 2021

Dual connectors on the last batch that we had in :-)

Ben @ Wheelspin Models
Hi what 6s battery's do you recommend for this sys
Kallum / 1st February 2021

The # OL-2577XT90 or O-GC3S6500-60X9 or O-GC3S4500-40X9 work well

Ben @ Wheelspin Models
What battery plug are on is it xt90
Kev / 27th December 2020

Yes these are xT90

Ben @ Wheelspin Models
would this work well with a mojave/kraton exb?
Alexander Ocarroll / 3rd December 2020

Yes these will fit in the EXB's

Ben @ Wheelspin Models
Would this be a good upgrade on a typhon 6s
Mark Evans / 19th August 2020

Yes that would work nicely in there

Ben @ Wheelspin Models
will this fit into the Arrma Typhon 3s blx
Shaun Smith / 2nd August 2020

No this is a 1:8 system, you'd need a 1:10 scale system

Ben @ Wheelspin Models
Will this fit the kyosho scorpion xxl kit and if not could you suggest what would?
Daniel M / 22nd April 2020

Yes that should fit

Ben @ Wheelspin Models
Will this motor fit my TT02?
Paul Atkinson / 27th February 2020

No sorry, it's a 1:8 size motor

Ben @ Wheelspin Models
Do you stock these in store for collection?
Christopher Russell / 31st December 2019

Yes. Feel free to pop an order through and choose "instore collect" at checkout.

Ben @ Wheelspin Models
Can you supply this with EC5 connectors
Aiden / 6th December 2019

You would ideally need an adaptor to allow this to work , as you would not want to void the warranty.

Anthony @ Wheelspin Models
Hi dose this already have the connectors to run 2 3s packs or do i need to get a separet cable.
Dan / 8th May 2019

Yes it includes 2 x deans connectors. Ideal for running 2 x 3S packs.

Ben @ Wheelspin Models
If you put a loop in one of the connectors can you run off just 1 4s or 6s battery or does it have to be 2 batteries
Daniel Robinson / 12th February 2019

No you can run a single 4S or 6S if you wish.

Ben @ Wheelspin Models
Would this fit a 1/5 scale redcat rampage? Cheers
Ryan / 20th November 2018

We don't sell that car, so can't really advise fully... However this is a 1:8 scale system, you sound like you'd want a 1:5 scale system

Ben @ Wheelspin Models
Do you have the 2000kv version of this bundle and would it be any good for the hobao mt with 14 tooth pinion or would the 2200kv be alright
Andrew Robinson / 15th November 2018

At time of writing, it doesn't look like Hobbywing offer this as a combo with 2000kv motor sorry.

The 2200kv should however be fine in that truck.

Ben @ Wheelspin Models
What kv is this bundle and does it include a program card and would it be good for the hobao mt as converting it to electric
Andrew Robinson / 14th November 2018

This is a 2200kv motor.

Yes, it includes program card.





Ben @ Wheelspin Models
I deans sono 2 in uscita esc? Per poterci collegare già 2 lipo 3s
Giuseppe / 6th September 2018

It includes 2 deans connectors

Ben @ Wheelspin Models
does this include the program card ?>
Gary / 16th June 2018

Yes I beleive so.

They are also WIFI compatible.

Ben @ Wheelspin Models
Would this be ok for Hobao Hyper VS?
Daniel / 4th June 2018

Yes, that would be OK for that vehicle.

Ben @ Wheelspin Models
Could I fit this in a traxxas bandit?
Nathan / 24th October 2017

Not directly, this is a 1:8 scale system so will be too large.

Ben @ Wheelspin Models
Can you use 2 x 3s lipos with this if you use a 1 in to 2 Deans harness? Regards
Stuart Baxter / 10th July 2017

Yes, this can handle upto 6S, so 2 x 3S packs in series will be OK.

Ben @ Wheelspin Models
ASK A QUESTION
Usually a few e-mails per month. We don't spam.
Use this form to ask us a quick one sentence question about this specific product. Do not enter anything you would not like displayed on our site.

For more in depth queries, please contact us.
