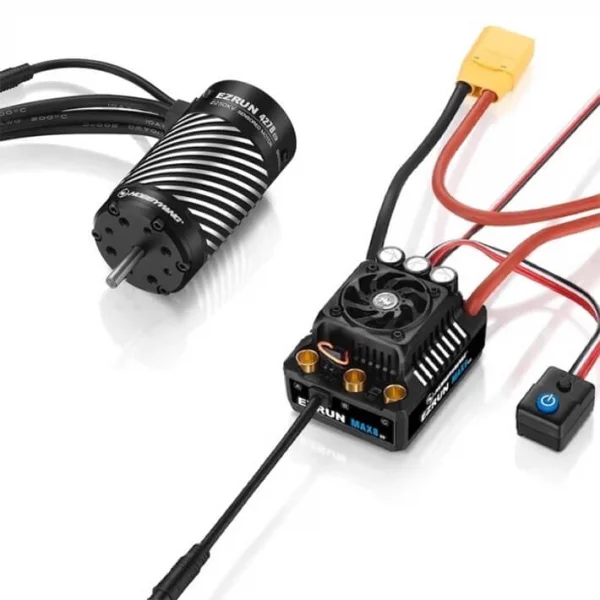

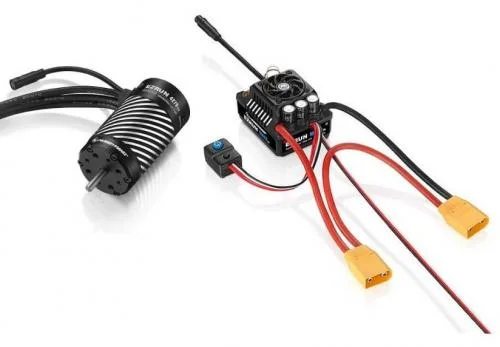

Hobbywing EZRun MAX8 G2 ESC Combo With 4278Sd 2250Kv Motor
Brand: Hobbywing
Part No: HW38020353
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #HW38010607 AS A REPLACEMENT
The Hobbywing EZRun MAX8 G2 ESC Combo pairs the MAX8 G2 160A waterproof ESC with the EZRun 4278SD 2250KV sensored brushless motor for smooth, high-power performance in 1/8 scale applications. Designed for durability and control, this HW38020353 set brings advanced tuning, robust protection features, and dependable hardware for demanding RC use.
ESC Highlights
- Waterproof and dust-proof construction for use in sediment, ice, snow and wet conditions.
- Robust electronic power switch resists dust, moisture and impact.
- Adjustable high-voltage BEC (6V / 7.4V / 8.4V) to support powerful servos.
- 32° turbo timing; with a matching motor (e.g. EZRun 4278SD) can increase maximum RPM by about 25%.
- Multiple protections: low-voltage cutoff, ESC/motor overheat, signal loss and current protection.
- Supports LED program card, LCD G2 program box and OTA Programmer (optional) for parameter setting.
- Real-time data logging via HW LINK app when used with the OTA Bluetooth module.
- Firmware upgradeable via LCD G2 program box or OTA Programmer (optional).
ESC Specifications
- Scale vehicles: 1/8
- Continuous/Peak current: 160A / 1050A
- Motor mode: Sensored and sensorless brushless
- Input: 3–6S LiPo
- Motor limit: 4S LiPo ≤ 3000KV; 6S LiPo ≤ 2400KV (4278 size motor)
- BEC output: 6V / 7.4V / 8.4V adjustable, 10A continuous (switch‑mode)
- Programming port: Shared with "Fab" interface
- Switch mode: Electronic
- Capacitor protection: Yes
- Waterproof: Yes
- Size (L×W×H): 60 × 48 × 40.5 mm
- Weight: 192 g
- Connectors: Input XT90; Output 6.5 mm gold plug (female)
Motor Highlights
- Advanced sensored brushless technology for precise control.
- Waterproof construction.
- Designed for speed and power with aggressive launch characteristics.
Motor Specifications
- Poles: 4
- KV (no‑load): 2250KV
- Resistance: 0.0048 Ω
- No‑load current: 5.0 A
- Motor size (D × L): 42 × 78 mm
- Shaft (D × L of projecting part): 5 × 18.5 mm
- LiPo: 3–6S
- Weight: 455 g (no wire)
- Best match: MAX8 G2 ESC
Suggested Compatibility
- 1/8 trucks and crawlers (as indicated under manufacturer applicability).
- 3–6S LiPo power systems within the stated motor limit and ESC specifications.
Secured by Stripe
Hobbywing EZRun MAX8 G2 ESC Features:
- The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, and snow, water accumulation.
- Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
- Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevent dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
- Support the 32 degree turbo timing setting. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%, easily win your rival. • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
- Support LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
- Real-time data logging to view various running data on the HW LINK app using the OTA Bluetooth module.
- Support the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions.
Hobbywing EZRun MAX8 G2 ESC Specifications:
Scale Vehicles: 1/8th
Cont./Peak Current: 160A / 1050A
Motor Mode: Sensored and sensorless brushless motor
Input: 3-6S Lipo
Motor Limit: 4S Lipo: KV≤3000; 6S Lipo: KV≤2400 4278 size motor
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming Port: Share with Fab interface
Switch Mode: Electronic Switch
Capacitor protection: Yes
Waterproof: Yes
Size (L.W.H) mm: 60(L) x 48(W) x40.5(H) mm
Weight (g): 192g
Input/Output: Input:XT90 Output:6.5mm gold plug(female)
Motor Features:
- Advanced Sensored brushless technology
- Waterproof, advanced sensored motor
- Designed for SPEED & POWER
- Aggressive Launch
Motor Specifications:
Pole: 4
KV(No-load): 2250KV
R. (Ω): 0.0048Ω
Current No-load(A): 5.0A
Motor D.&L(mm): 42mm / 78mm
Shaft D.&L of the projecting part(mm): 5mm / 18.5mm
LiPo(S): 3-6S Lipo
Weight (g): 455g (no wire)
Applicable: 1/8 truck, crawler
Best match with: MAX 8 G2 ESC
Key Info:
- Brand: Hobbywing
- Part No: HW38020353
- Barcode: 6938994407557
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
The 2250kv system will run 4s or 6s depending on the application. It has XT90 plugs on it.
No, this is for a 1/8th scale car. you can look at something like this for the Zorro HW38020344
I am sorry we do not know that vehicle but this is a very good 1/8 brushless system and we recommend 2x 3s lipos like this SCH-CR780
It will run with either but you would need a loop connector to run one battery if it has 2 connectors.
Yes this would work in that car for you.
Yes this one HW38010404
No, this is only available with the XT90 connectors
The g2 is the latest version :)
No this is pre soldered with xt90 connectors on it.
