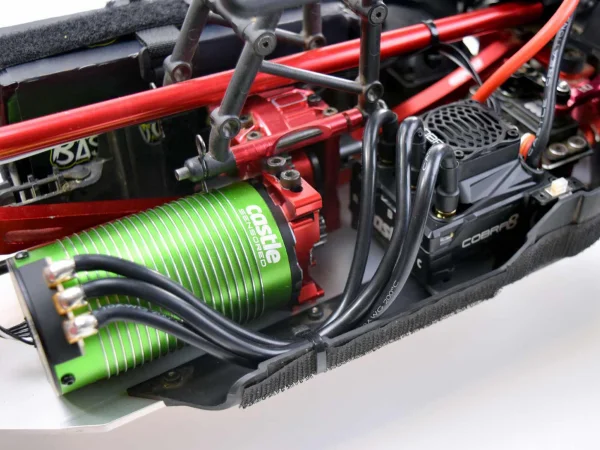

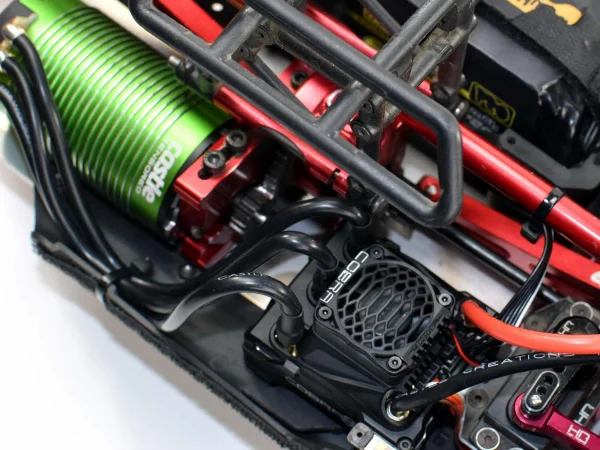

Castle Creations Cobra 8 ESC Combo With 1512-1800Kv Sensored Motor
Brand: Castle Creations
Part No: P-CC010-0172-01
Out Of Stock
Request Stock NotificationThe Castle Creations Cobra 8 ESC Combo With 1512-1800Kv Sensored Motor (P-CC010-0172-01) introduces Castle’s next-generation control for demanding surface builds. Designed for 1:8 scale applications up to 6.8 kg, the Cobra 8 pairs a rugged, CNC-machined aluminium ESC with a Castle 1512-1800Kv 4‑pole 12‑slot sensored brushless motor for smooth startups, strong torque and efficient high‑RPM power.
Powered by a 32‑bit dual‑core processor, the ESC delivers precise throttle response, extensive data logging and advanced thermal management via CRYO‑DRIVE. An 8A peak adjustable BEC (5.0–8.0V) supports power‑hungry servos, while waterproof epoxy potting, a forged heatsink and a thermally controlled 30 mm fan help keep performance consistent in all weather.
In The Box
- Cobra 8 ESC
- 1512-1800kv Sensored Brushless Motor
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
ESC Features
- 32‑bit processing for smoother motor control and improved response
- Enhanced data logging:
- Double the max sample frequency vs older generations
- 8× increased logging time
- Data points for ESC electrical motor timing and acceleration (onboard accelerometer)
- Looping feature and per‑session downloads
- Additional tuning options:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC (5.0–8.0V in 0.1V steps)
- Castle Link V4 USB programmer included (USB‑C, requires Windows 10+)
- Input voltage: 6.0–25.2V (2S–6S LiPo)
- SmartSense, Sensored Only and Brushed motor operation modes
- CRYO‑DRIVE technology for improved thermal performance at partial throttle
- CNC aluminium case, waterproof epoxy potting and forged heatsink with elliptical fins
- Thermally controlled 30 mm cooling fan
- Aux wire for on‑the‑fly adjustments via transmitter
- Audible alerts and convenient transmitter programming (e.g., cutoff voltage, drag brake)
Motor Features
- 4‑pole 12‑slot sensored design for high efficiency and reduced heat
- Proprietary stator winding for low internal resistance and cooler running
- Dual sensor ports for optimal installation
- Oversized NMB bearings with vibration dampening for extended life
- High‑strength, high‑temperature neodymium magnets with Kevlar wrap for rotor integrity
Suggested Compatibility
- 1:8 scale vehicles up to 6.8 kg (15 lbs)
- 1:8 scale off‑road and on‑road vehicles
- 1:10 scale 4WD short course trucks up to 4 kg (9 lbs)
SmartSense provides smooth sensored launches before transitioning to Castle’s efficient sensorless operation, while CRYO‑DRIVE optimises component use thousands of times per second to reduce heat build‑up. With comprehensive data logging, on‑the‑fly AUX tuning, and the included Castle Link V4 USB‑C programmer, the Cobra 8 combo offers deep insight and control for fine‑tuning performance.
Secured by Stripe

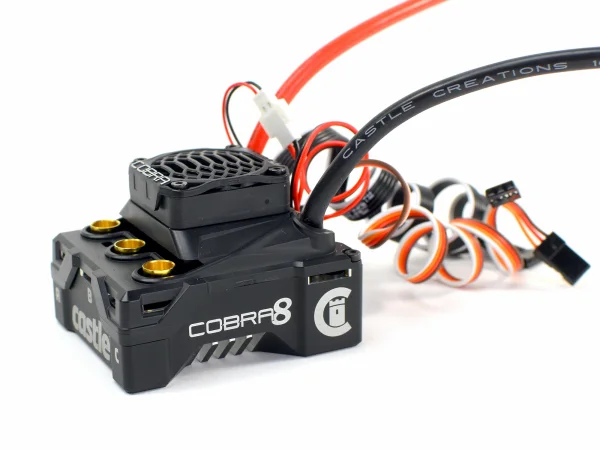

Introducing the Cobra 8, Castle's next generation electronic speed controller for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 6.8Kg (15 lbs).
The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminium bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

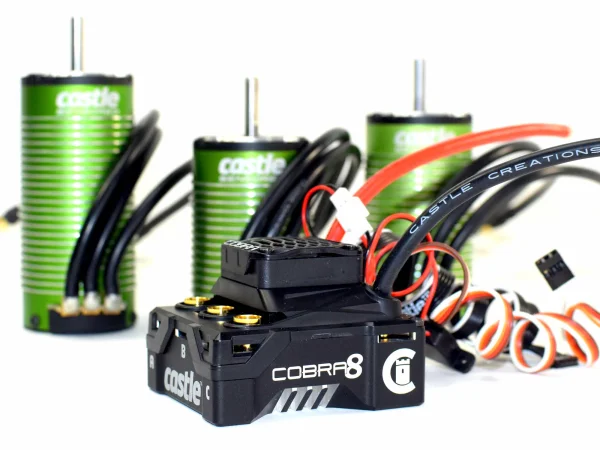

The Cobra 8 has been packaged with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles, this combo includes a Castle 1512-1800Kv Sensored Motor and is ready to overpower 1:8th scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 4Kg (9 lbs).
In The Box
- Cobra 8 ESC
- 1512-1800kv Sensored Brushless Motor
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
ESC Features
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
- SmartSense, Sensored Only and Brushed Motor Operation Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminium case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 30mm cooling fan
- Waterproof design for all weather conditions
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Includes Castle Link V4 USB adapter for Windows.
Motor Features</br />
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the COBRA 8 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
The COBRA 8 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
The COBRA 8 contains NEW DATA LOGGING FEATURES:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.

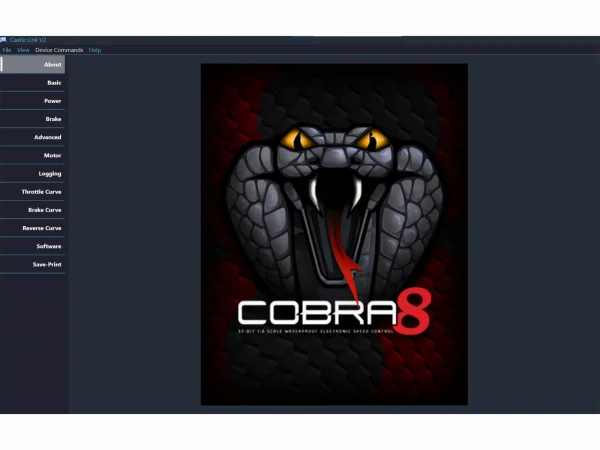

For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
The COBRA 8 is housed in a rugged CNC-machined aluminium case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
COBRA 8 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0172-01
- Barcode: 0819326012938
