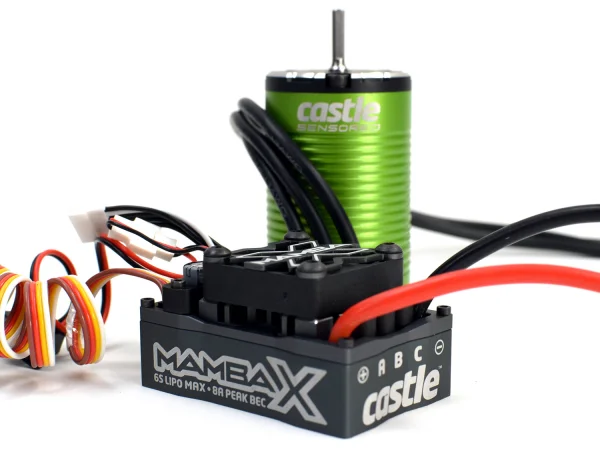

Castle Creations Mamba X SCT ESC Combo With 1412 3200Kv Motor

The Castle Creations Mamba X SCT ESC Combo With 1412 3200Kv Motor (P-CC010-0155-12) pairs Castle’s flagship Mamba X waterproof 1:10 ESC with a 1412-3200Kv 4‑pole, 12‑slot sensored brushless motor. Designed around versatility, reliability and performance, this system delivers smooth sensored launches, robust torque and efficient running for demanding surface applications.

The Mamba X ESC supports 2S–6S LiPo operation (4S max with the included 1412‑3200Kv motor). Castle’s SmartSense technology with QUIETSENSE uses the motor’s sensors for ultra-smooth low-speed control, then transitions seamlessly to highly efficient sensorless drive as RPM rises. A rugged CNC‑machined aluminium case is fully potted for waterproofing and excellent heat dissipation, aided by a removable 30mm cooling fan.

Fine-tune on the bench or on the move: Castle Link software provides deep parameter control, while the AUX wire enables convenient “on‑the‑fly” adjustments from your transmitter for torque control, maximum throttle, maximum brake and drag brake. Built‑in data‑logging captures RPM, current, voltage, temperatures and throttle input so you can review runs and optimise gearing and setup. The ESC is telemetry‑ready and can relay real‑time data when used with compatible systems such as the Castle Telemetry Link for Futaba S.BUS2.

Practical details include integrated capacitors, 4mm bullet connectors, 12 AWG power leads and a waterproof switch. Audible and LED alerts assist with quick diagnostics. The Mamba X ESC is ROAR and RECON G6 certified.

Key Features

• ESC operating range: 2S–6S LiPo (4S max with included motor)
• 1412‑3200Kv sensored brushless motor (4‑pole, 12‑slot)
• Waterproof ESC with rugged CNC aluminium case and epoxy potting
• 8A adjustable BEC (5.25V–8.0V)
• SmartSense with QUIETSENSE for smooth starts and efficient running
• Data‑logging for RPM, current, voltage, temps and throttle
• Castle Link programming support and convenient transmitter programming
• AUX wire functionality for real‑time tuning (torque control, max throttle/brake, drag brake)
• Removable 30mm cooling fan, integrated capacitors
• Integrated 4mm bullet connectors and 12 AWG power wires
• Waterproof switch, audible and LED alerts
• Telemetry ready (e.g. via Castle Telemetry Link for Futaba S.BUS2)
• ROAR Certified and RECON G6 Certified ESC

What’s Included

• Mamba X ESC with sensor harness
• 1412‑3200Kv 4‑pole 12‑slot sensored motor
• Coupon for free Castle Link USB
• Mamba decals
• Driver's Ed and Quick Start Guide
• Gearing chart for Castle motors

Suggested Compatibility

• 1/10 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3S LiPo and weighing up to approx. 6.5 lb; can be used on 4S with conservative gearing and close temperature monitoring.
• Lighter 1/10 2WD stadium trucks and buggies running up to 4S LiPo.
• In 1/8 off‑road racing buggies up to approx. 9 lb, the Mamba X ESC is suggested at 4S max when paired with Castle 1512‑1800Kv or 1515‑2200Kv motors (not included) and appropriate gearing.
