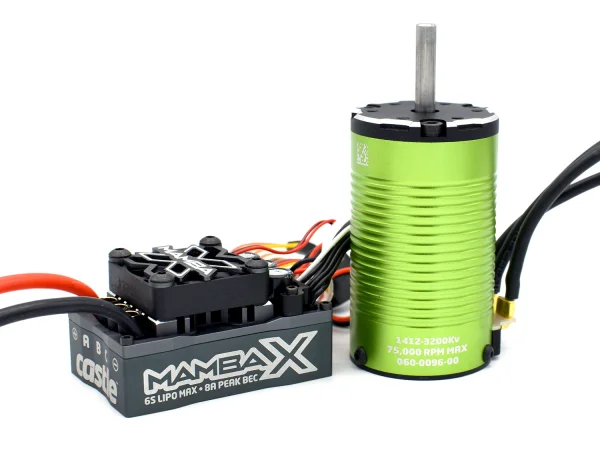

Castle Creations Mamba X SCT ESC Combo With 1412-3200Kv 5mm Motor

The Castle Creations Mamba X SCT ESC Combo with 1412‑3200Kv 5mm sensored motor (P-CC010-0155-13) delivers a versatile, reliable and high‑performance brushless system for modern 1:10 applications. The waterproof ESC operates from 2S to 6S LiPo and is housed in a rugged CNC‑machined aluminium case with a removable 30 mm cooling fan and waterproof switch. SmartSense start‑up, extensive tuning via Castle Link, and built‑in data logging provide smooth control and detailed insight to help refine your setup.

An 8A adjustable BEC (5.25–8.0V), integrated capacitors, integrated 4 mm bullet connectors and 12 AWG power wires round out a robust package. Convenient transmitter programming and an AUX wire enable real‑time adjustments, while audible and LED alerts simplify diagnostics. The ESC is ROAR and RECON G6 certified and telemetry ready for compatible Futaba T4PX systems via the Castle Creations Telemetry Link for S.BUS2 (sold separately).

With SmartSense enabled, the system uses motor sensors for smooth start‑ups, excellent torque and low‑speed drivability, then transitions seamlessly to Castle’s efficient sensorless running. Via Castle Link you can assign the AUX wire to parameters such as torque control, maximum throttle, maximum brake and drag brake for fine tuning straight from your transmitter. The controller also records performance data, including motor RPM, battery current and voltage, ESC/motor temperatures and throttle input, which can be reviewed through Castle Link to optimise gearing, performance and battery life.

Features

• ESC voltage range: 2S–6S
• 1412‑3200Kv sensored motor with 5 mm shaft (4‑pole, 12‑slot)
• Waterproof design; potted electronics
• 8A adjustable BEC (5.25V–8.0V)
• Data logging
• Rugged CNC aluminium case
• Castle Link programming support and convenient transmitter programming
• AUX wire functionality for "on‑the‑fly" adjustments
• SmartSense Technology; QUIETSENSE motor design
• Integrated capacitors
• Removable 30 mm cooling fan
• Integrated 4 mm bullet connectors
• 12 AWG power wires
• Waterproof switch
• Audible and LED alerts for diagnostics
• ROAR Certified ESC
• RECON G6 Certified ESC
• Telemetry ready for Futaba T4PX via Castle Telemetry Link for S.BUS2

What’s Included

• Mamba X ESC with sensor harness
• 1412‑3200Kv 4‑pole 12‑slot sensored motor (5 mm shaft)
• Coupon for free Castle Link USB
• Mamba decals
• Driver’s Ed and Quick Start Guide
• Gearing chart for Castle motors

Suggested Compatibility

• 2WD and 4x4 short course trucks, monster trucks and rock racers on up to 3S LiPo; vehicles up to approximately 6.5 lb
• May be run on 4S LiPo with very conservative gearing and careful temperature monitoring
• Lighter 1/10 2WD stadium trucks and buggies on up to 4S LiPo
• In 1/8 off‑road racing buggies up to 9 lb, the Mamba X ESC is intended for 4S max and is recommended with Castle 1512‑1800Kv (060‑0062‑00) or 1515‑2200Kv (060‑0063‑00) motors with appropriate gearing
