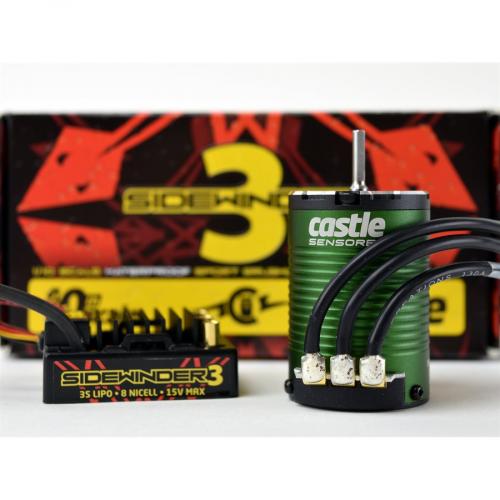

Castle Creations SV3 Sidewinder Waterproof Combo With 1406-4600KV Motor
Brand: Castle Creations
Part No: P-CC010-0115-05
Out Of Stock
Request Stock NotificationThe Castle Creations SV3 Sidewinder Waterproof Combo with 1406-4600KV Motor (P-CC010-0115-05) pairs the Sidewinder 3 ESC with a 1406-4600KV sensored brushless inrunner, delivering fast response and dependable performance for 1/10 scale RC vehicles on 2–3S LiPo.
Overview
This water-resistant system features updated circuitry in the SV3 for quicker throttle response and improved reliability. The included 1406-4600KV motor is sensored and rebuildable, allowing modelers to service and even replace damaged motor wires. While the SV3 operates sensorless, the combo offers smooth, strong power and is ready to run out of the box.
Suggested Compatibility & Use
- 1/10 off-road, on-road and rock crawlers on up to 3S LiPo (sensorless operation with SV3).
- 2WD short course trucks on 2S LiPo with conservative gearing.
- 1/10 2WD stadium trucks and buggies on 2S for general bashing; limited 3S running as temperatures can rise quickly.
- 1/10 on-road cars on 2S–3S LiPo.
- Not suggested for 4WD short course trucks.
Programming & Tuning
Out of the box, the SV3 is transmitter-programmable. Expanded settings and firmware updates are available via a Windows PC using the Castle Link USB adapter or a Field Link card (both sold separately). Tune brake and throttle curves, throttle response, drag brake and more.
Key Specifications
- Motor Type: Brushless (sensored motor; runs sensorless on SV3)
- ESC: Brushless sensorless, brushed compatible
- Input Voltage: 6–8 cell NiMH, 2–3S LiPo
- BEC: Yes, 5V
- Connector Type: 4mm bullet
- KV Rating: 4600KV
- Poles: 4
- Brakes: Proportional; Forward/Reverse: Yes
- Bushing/Bearing: Bearing
- Motor Design: Inrunner
- Dimensions (approx.): Length 1.93" (49 mm), Width 1.48" (38 mm), Height 0.79" (20 mm), Outer Diameter 1.417" (36 mm)
- Shaft: 3 mm diameter, 15 mm length
- Weight: 1.96 oz (55.5 g)
- Water-Resistant: Yes
What’s Included
- SV3 Sidewinder Waterproof ESC
- 1406-4600KV Brushless Motor
Required to Complete
- Battery connector of chosen type
- (Optional) Castle Link programmer
Waterproofing Notes
Designed to handle wet conditions; not intended for operation while submerged. After exposure to water, rinse with fresh water and allow the system to fully dry.
Secured by Stripe
Sidewinder 3 with 1406-4600Kv sensored brushless motor is the perfect waterproof combo for 1:10 scale off-road, on-road, and rock crawlers running up to 3S LiPo. It sports updated circuitry for faster response time and improved reliability.
OverviewThe Sidewinder 3 is the perfect waterproof combo for 1/10 scale off-road and on-road vehicles running up to 3S LiPo. It sports updated circuitry for faster response time and improved reliability. This combo includes a Sidewinder 3 ESC and 1406-4600Kv sensored motor. This Sidewinder 3 Combo packs a lot power and will deliver exceptional response and performance right out of the box!
This combo now comes with the new sensored motor. While the sensored capabilities of the motor cannot be utilized with the Sidewinder 3, users will benefit as the sensored motor is rebuildable and this design even allows modelers to replace damaged motor wires. The Sidewinder 3 Combo will give you exceptional response and performance right of the box!
The 1406-4600kv motor is a great motor for 2WD short course trucks on 2s LiPo and geared conservatively. It makes a great combo for 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s; temperatures will climb quickly on 3s. It makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.
The Sidewinder 3 is ready to run out of the box and is programmable via your transmitter. There are also many more programmable features that may be accessed using your Windows™ PC and a Castle Link USB adapter (sold separately) or a Field Link card (sold separately). Drivers can tune their favorite settings such as brake and throttle curves, throttle response, drag brake and many other parameters as well as download new firmware updates and feature upgrades as they become available.
Sensored capabilities of the motor cannot be utilized with the Sidewinder 3. If you require sensored operation you will need a sensored ESC like the Mamba X.
Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Castle Creations SV3 Sidewinder Waterproof Combo With 1406-4600KV Motor Specfications:
- Connector Type: 4mm Bullet
- Product Length: 1.93" (49 mm)
- Motor Type: Brushless
- Speed Control: Brushless - Sensorless
- Product Weight: 1.96 oz. (55.5 g)
- Shaft Diameter: 0.125" (3 mm)
- Water-Resistant: Yes
- BEC: Yes
- BEC Voltage: 5V
- Drive Type: Brushless & Brushed Compatible
- Input Voltage: 6-8 cells NiMH, 2-3S LiPo
- Product Height: 0.79" (20 mm)
- RPM/Volt (Kv): 4600Kv
- Shaft Length: 0.590551" (15 mm)
- Number of Poles: 4 Poles
- Forward: Yes
- Reverse: Yes
- Bushing Or Bearing: Bearing
- Brakes: Proportional
- Programmable: Yes
- Outer Diameter: 1.41732" (36 mm)
- Product Width: 1.48" (38 mm)
- Motor Design: Inrunner
- (1) SV3 Sidewinder Waterproof ESC
- (1) 1406-4600Kv Brushless Motor
- Battery Connector of Chosen Type
- (Optional) Castle Link Programmer
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0115-05
- Barcode: 819326011566
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes that would fit in a Typhon - just watch your gearing though as 4600kv is relatively high for a buggy
Yes, that would work fine in your drift car.
Yes, this is a standard 540 size motor so would fit your Fazer.
As I understand Castle don’t put battery connections on any of their ESC units.
4mm gold motor connections pre-installed so can fit to ESC unit.
Yes, that would work well on a Rustler.
