Description

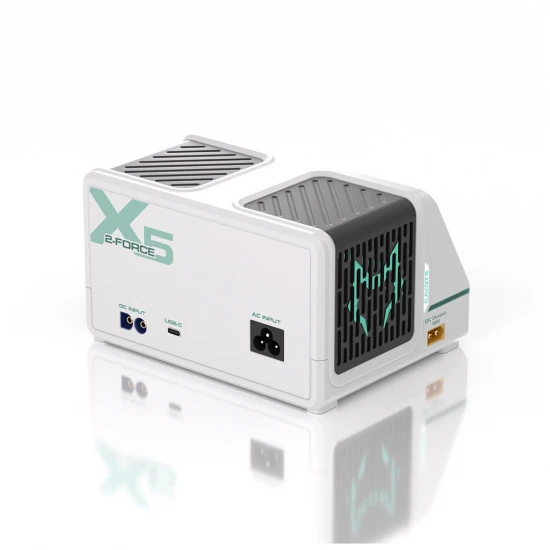

The Cayote 2-Force X5 dual-channel smart charger is engineered for professional RC model racing, blending high-performance power management with clear, efficient operation. Designed to activate and support high-intensity race packs, it delivers robust power, stable performance and versatile modes to streamline pit work. Part number SCH-CYEG1024.
Design & Build
- Easy to carry and fit into your workstation or racing pit area.
- Approx. weight: 1.5 kg.
- Dimensions: 172 mm (L) × 130 mm (W) × 101 mm (H).
- High-gloss coated polymer shell with scratch-resistant surface treatment for a sleek, durable finish.
Charging Performance
- Particularly designed for high‑C rate competition batteries for fast, safe and efficient charging.
- Maximum charging current: 40A (normal), up to 55A (synchronous).
- Charging power: up to 500W on AC; up to 700W × 2 on DC (maximum 1400W).
- 2A balancing current for faster, more accurate voltage equalisation and improved consistency.
Dual-Channel & Multi-Mode Functions
- Independent dual-channel design for synchronised battery management and improved efficiency.
- Extended functions include external discharge, two-in-one charging and digital power supply modes.
Safety & Thermal Management
- Comprehensive protection: over-voltage, reverse connection, over-current, over-temperature and short-circuit.
- Intelligent cooling fan system with large ventilation openings for stable operation in high-power or hot conditions.
Interfaces & Outputs
- Servo testing interface for quick checks and on-site calibration.
- 12V DC multi-function output to power auxiliary devices such as tyre warmers, soldering irons and other RC tools.
- USB-C firmware upgrade support to keep the charging experience up to date.
Specifications
- Input voltage: AC 100–240V 50/60Hz, 6.5A (max); DC 12–30V, 65A (max).
- Output voltage: DC 5–30V.
- Max charging power: AC 500W / DC 700W × 2 (AC charging limited to 400W when 12V DC output is active).
- Max discharge power: 70W × 2 (internal), 500W (external).
Secured by Stripe
Specifications
2-Force X5 is a dual-channel smart charger designed for professional RC model racing users, combining high-performance power management technology, exceptional user interaction, and a variety of operational modes.
Whether for battery activation before high-intensity races or multi-task power support on-site, the 2-Force X5 delivers robust power and stable performance, ensuring reliable support for every RC racer.
Design & Compatibility
Easy to carry and fit into your workstation or racing pit area.
Weighs 1.5kg
Measuring
172 mm (L)
130 mm (W)
101 mm (H)
High-gloss coated polymer shell with scratch-resistant surface treatment, providing a glossy and sleek exterior that reflect quality and style.
Charging Performance
Particularly designed for high-C rate competition batteries, fast, safe, and efficient, with a maximum charging current of 55A, and supporting charging power up to
AC - 500W
DC - 1400W
2A power balancing current: Built-in performance improving balancing system for faster and more accurate voltage regulation, therfore improving battery power output, consistency and extending its lifespan.
Dual-Channel Independent Operation
Independent circuit design supports synchronized battery management, improving charging efficiency.
Multi-Mode Functions
The 2-Force X5 offers multiple extended functions, including external discharge, two-in-one charging, and digital power supply modes, meeting diverse needs from daily maintenance to race tuning. It reduces racer workload and enhances overall value.
Safety & Protection
Comprehensive safety features include over-voltage, over-current, short-circuit, reverse polarity, and over-temperature shutdown.
These protections ensure reliable performance under any condition.
- Over-voltage
- Reverse Connection
- Over-current
- Over-temperature
- Short-circuit
Thermal Management & System Stability
Efficient Cooling System: The intelligent cooling fan system, paired with large ventilation holes, offers superior thermal management to ensure stable operation during high-power or extreme thermal conditions.
Additional Features & Interfaces
Servo Testing Interface
Equipped with a dedicated servo test port for easy operation and quick testing of servo functionality and response, ideal for on-site calibration.
12V DC Multi-Function Output
Provides stable 12V DC output, powering auxiliary devices such as tire warmers, soldering irons, and other RC tools for race and maintenance needs.
USB-C Firmware Upgrade
Easily upgrade the firmware via the USB-C
port to continuously optimize the charging experience.
Specification
Input Voltage - AC 100-240V 50/60Hz 6.5A (Max)DC 12-30V 65A (Max)
Output Voltage - DC 5-30V
Max Charging Power - AC 500W / DC 700W × 2(AC charging limited to 400W when DC 12V output is active)
Max Charging Current - 40A (normal), 55A (Synchronous)
Max Discharge Power - 70W × 2 (internal), 500W (external)
Key Info:
- Brand: Cayote
- Part No: SCH-CYEG1024
- Barcode: 5051294211653
- Input Voltage:
• 12V
• 240V (UK mains) - Chemistry: LiPo
- Included Connectors: XT90
