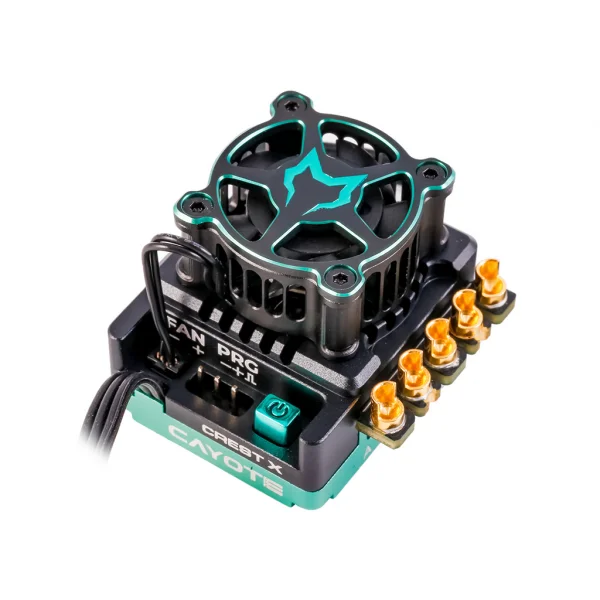

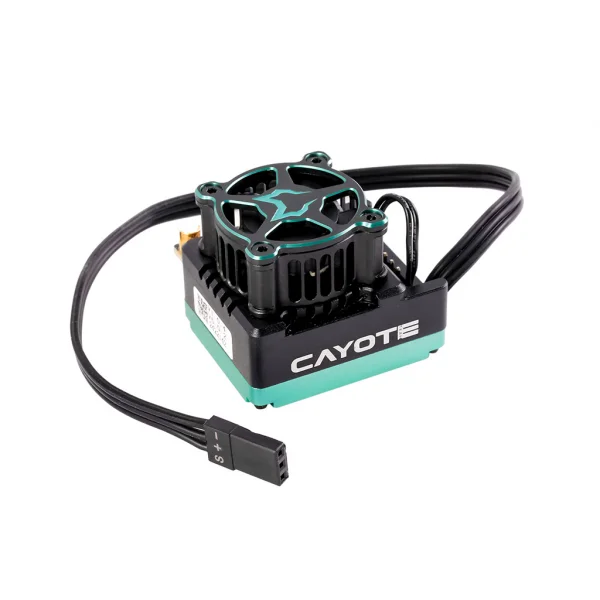

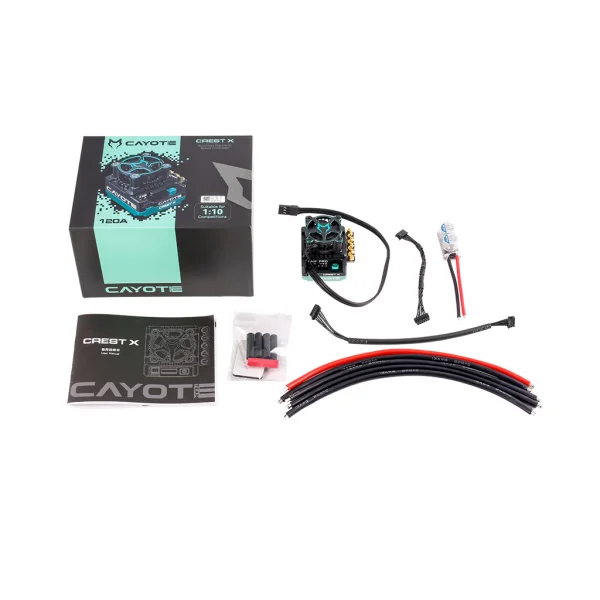

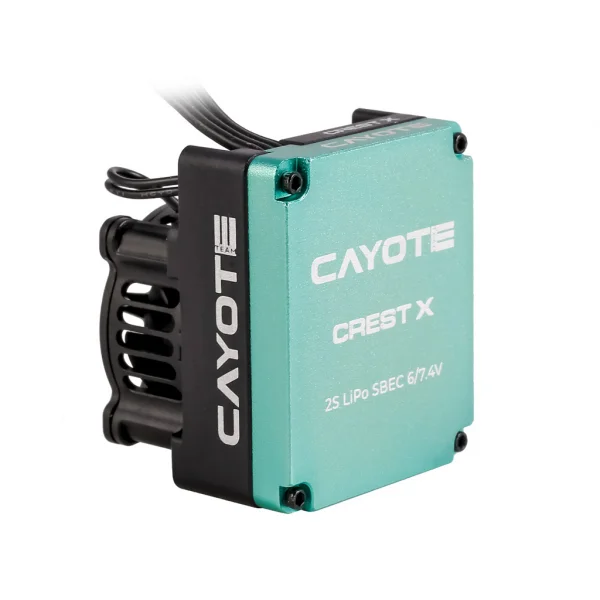

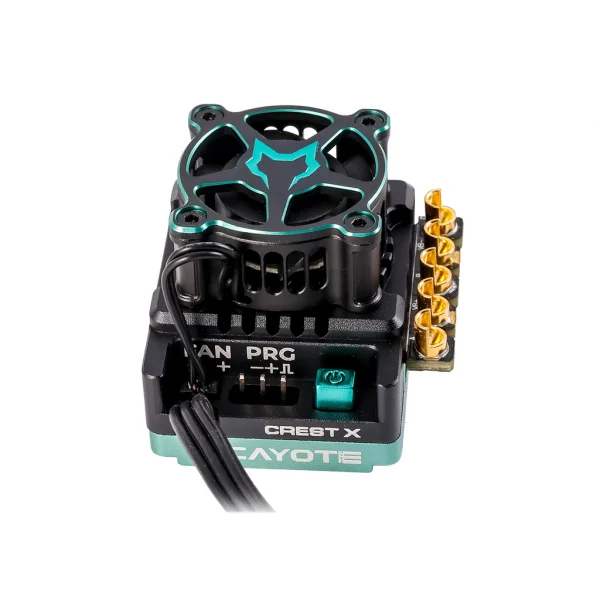

Cayote Crest X 160A ESC

The Cayote Crest X 160A ESC (SCH-CAA11001) delivers high performance and reliable current transmission for smooth, efficient operation in 1/10-scale RC vehicles. An advanced cooling system and a wide range of tuning functions combine smart technology with user-friendly operation. Pair it with a Cayote motor and battery for best performance.

Key Features

• Super large 48-degree Boost & Turbo Timing for increased power output and optimised motor efficiency
• Offline Data Recording to track ESC performance and make informed decisions
• Over 33 adjustable parameters supporting various power and drive modes
• Built-in Super Switching Mode BEC with 6.0V/7.4V adjustable output to suit high-power BEC needs
• Built-in professional reversing shutdown (active in forward with brake and forward/reverse with brake modes)
• Multiple protection functions including low voltage and ESC/motor overheat protection
• BRCA legal

Specifications

• Scale: 1/10
• Mode: Sensor/Sensorless
• Continuous Current: 160A
• Peak Current: 1100A
• Battery: 2S LiPo
• BEC Output Voltage: 6.0/7.4V
• BEC Output Current: 8A continuous / 12A peak
• Firmware Upgrade: Supported
• Data Recording: Extreme value and real-time data
• Size: 37.9 x 31.4 x 30 mm
• Weight: 55 g

Suggested Compatibility

• Motor: 1/10th TC ≥ 4.5T; 1/10th Off Road ≥ 5.5T
• Vehicle: 1/10th TC; 1/10th Off Road/Etc.

Wiring And Cooling

• Output Wires: Black 13AWG, 180 mm × 3
• Input Wires: Red 13AWG, 180 mm × 1; Black 13AWG, 180 mm × 1
• Cooling Fan: 25 × 25 × 10 mm, 5–8.4V BEC powered

ESC Programming Via

• Xlink Program Box compatible
• B-Tune Connect (optional)
• Internal program port (APP control)

Designed for serious 1/10 touring and off-road applications, the Cayote Crest X provides the tuning depth, protection features, and robust 160A capability demanded by modern RC setups, all in a compact 55 g package.
