Description

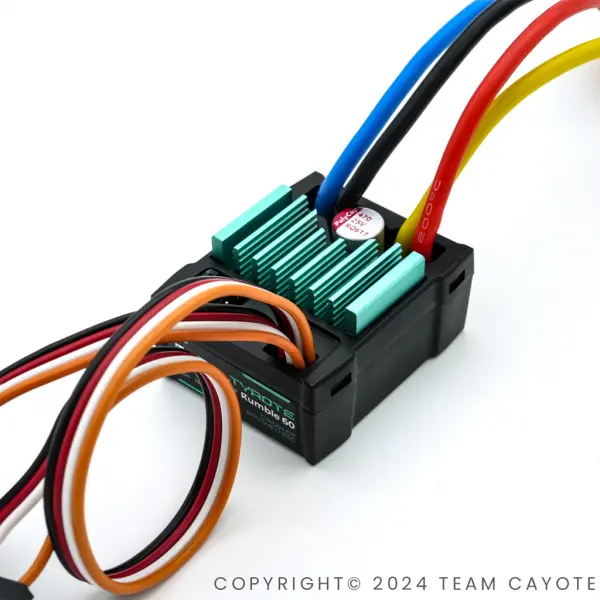

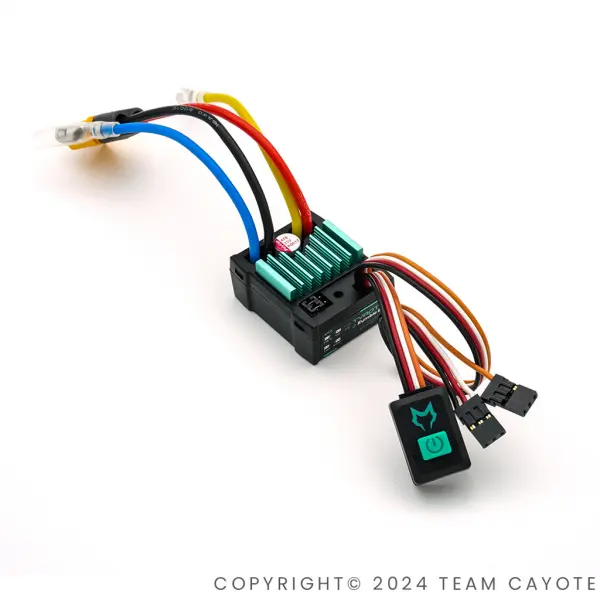

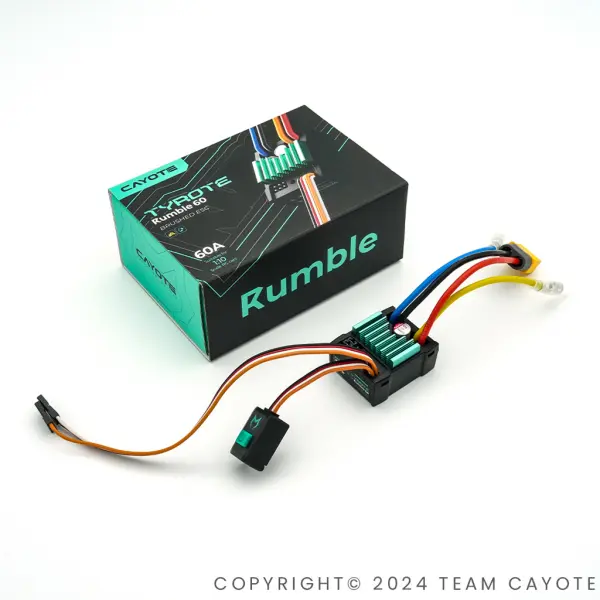

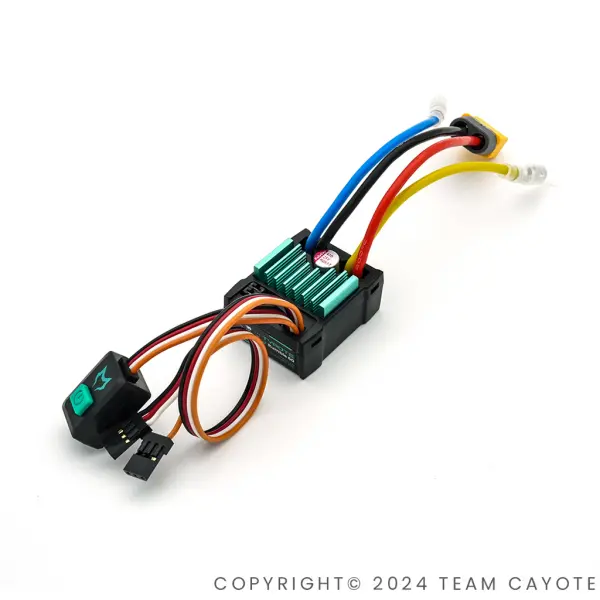

The Cayote TYROTE Rumble 60 1:10 W/P Brushed ESC, part number SCH-CYEA21002, is a waterproof brushed electronic speed controller for 1/10 scale radio-controlled vehicles. It is designed for simple setup, with quick jumper adjustments and three operating modes: forward, reverse; forward, brake, reverse; and forward, brake. The controller uses a fully sealed design with an IP67 rating for resistance to dust and water ingress during outdoor driving.
Features
The Rumble 60 is intended for crawling and off-road environments, including trails, rocky terrain and muddy surfaces. Its electronic power switch avoids common mechanical switch problems associated with corrosion, sticking and interruptions caused by impacts. Protection functions monitor low voltage, throttle signal loss and overheat conditions. When abnormal voltage, high temperature or signal loss is detected, the ESC can automatically power off to help protect the controller and connected vehicle electronics.
After 30 minutes without operation, the automatic power-off function switches off the ESC to reduce battery drain and the possibility of over-discharge. Suggested compatibility includes 1/10 brushed RC crawlers, trail trucks, short course trucks, monster trucks and other off-road vehicles. The controller supports 2S or 3S LiPo batteries and 6- to 9-cell NiMH packs, with support for 540- and 550-size brushed motors within the stated motor limits.
Specifications
- Forward continuous/peak current: 60A/360A
- Reverse continuous/peak current: 30A/180A
- Battery support: 2–3S LiPo or 6–9-cell NiMH
- Motor support: 540/550-size brushed motors
- Motor limit: 2S LiPo ≥12T; 3S LiPo ≥18T
- BEC output: 3A/6V switching regulator
- Dimensions: 39.3 × 33 × 21.3 mm
- Weight: 54.5 ± 3 g
The IP67 rating was verified under controlled laboratory conditions to GB/T 4208-2017 and IEC 60529 standards. Protection can reduce with wear, impact or ageing, and the ESC should not be used for prolonged submersion.
Secured by Stripe
Specifications
1/10 WATERPROOF BRUSHED ESC EASY SETUP · EASY DRIVING
Take Your Crawler To The Next Level
A SIMPLE UPGRADE PATH
Upgrade your setup with Rumble 60
Enjoy easier tuning and a more reliable driving experience with quick jumper adjustments.
THREE OPERATING MODES
• Forward
• Reverse
Forward
Brake
Forward
Brake
Reverse
Fully Sealed Protection
Ready for the Outdoors
IP67 RATING
WATER & DUST RESISTANCE
The Rumble 60 features a fully sealed IP67-rated design,providing reliable protection against dust and water ingress during outdoor use.
Designed for crawling and off-road environments, it helps maintain stable performance on trails, rocky terrain, and muddy surfaces.
Note: The IP67 protection rating was verified under controlled laboratory conditions according to GB/T 4208-2017 (China) and IEC 60529 (International) standards. Protection performance may decrease over time due to wear, impact, or aging. Do not use the product for prolonged submersion.
Electronic power switch
Eliminates common mechanical switch issues such as corrosion, sticking, and power interruption caused by impact.
Multiple Protections
More Worry-Free Driving
low-voltage Protection
Throttle signal loss protection
Overheat Protection
AUTO POWER-OFF
During extended outdoor use, the ESC automatically activates protection when abnormal voltage, high temperature, or signal loss is detected, helping protect the ESC and vehicle electronics.
AUTO POWER-OFF
After 30 minutes without operation, the ESC automatically powers off to reduce unnecessary battery drain and the risk of over-discharge, making everyday driving more worry-free.
Versatile Compatibility More Ways to Drive
Compatible with a wide range of 1/10 brushed RC vehicles, including crawlers, trail trucks, short course trucks, monster trucks, and more.
From outdoor crawling to everyday off-road adventures, Rumble 60 delivers simple setup and reliable performance.
Specifications
"Fwd. Cont. /Peak Current: 60A / 360A
Rev. Cont. /Peak Current: 30A/180A
Recommended Vehicle: 1/10 Scale RC Cars/Off-Road Vehicles/Trucks/Rock Crawlers
Battery Cells: 2-3S LiPo or 6-9 Cell NiMH
Supported Motor: 2S LiPo: ≥12T；3S LiPo: ≥18T；540/550-size Brushed motors
BEC Output: 3A/6V (Switching Regulator Mode)
Dimensions/Weight: 39.3*33*21.3mm/54.5±3g"
Key Info:
- Brand: Cayote
- Part No: SCH-CYEA21002
- Barcode: 5051294221942
- Motor Type: Brushed
- LiPo Compatible: Yes
