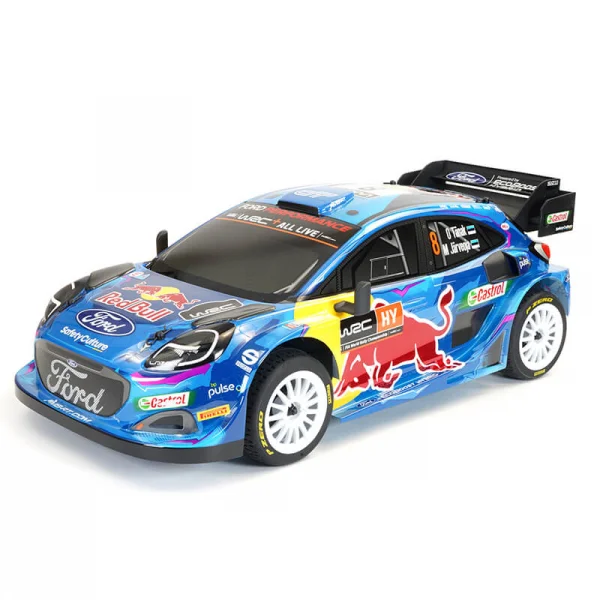

CEN 2023 M‑Sport Ford Puma Rally 1:8 RTR – CEN8999
Brand: CEN
Part No: CEN8999
Usually ships next day
Finance options available at checkout.
Save with a Combo Package
Our recommended kit, bundled at a combined priceLiPo batteries are the latest craze to hit the RC scene and provide approximately 20% more runtime and power than comparable NiCd/NiMh batteries.
Fancy insane speed? Then look no further than 3 cell LiPo packs, delivering a huge 11.1v of power!
1× eTronix PowerPal EZ-4 50W LiPo Charger
1× Overlander 4000mah Hard Case Low Profile 3S 11.1V 50C LiPo Pack - Deans
Upgrade to a higher performance battery pack and charger with this pro spec combo
1× Voltz 4000mAh Hard Case LiPo - 7.4v 2S 50C - Deans
1× eTronix Powerpal 3.0 AC/DC Performance Charger/Discharger - 80W 10A
Upgrade to a higher performance battery pack and charger with this pro spec combo
1× Voltz LiPo Charge Sack Bag - Medium 22cm x 18cm- 1× Overlander 4000mah Hard Case Low Profile 3S 11.1V 50C LiPo Pack - Deans
- 1× eTronix Powerpal 3.0 AC/DC Performance Charger/Discharger - 80W 10A
Frequently Bought With
Other items customers often buy with the CEN 2023 M-Sport Ford Puma Rally 1:8 RTR
Description
The CEN 2023 M‑Sport Ford Puma Rally 1:8 RTR (CEN8999) brings officially licensed WRC styling together with a durable 4WD platform and brushless power. A Hobbywing-powered 100A ESC pairs with a 3658 3000KV sensorless motor for responsive performance on 2–3S LiPo or 6–9 cell NiMH, while a Savox 12kg metal gear servo handles precise steering. The detailed 2023 M‑Sport Ford Puma Rally1 body completes the authentic look.
Electronics
- ESC: WP‑MAX10 SCT 100A (Hobbywing), T‑Plug, waterproof and dust‑proof
- Supports 2–3S Li‑Po or 6–9 cell Ni‑MH
- Switch‑mode BEC with 6V / 7.4V output, built‑in capacitor module
- Auto throttle range calibration, Li‑Po/NiMH low‑voltage cut‑off
- Over‑heat and signal loss protection, 5 punch levels, 9 brake levels
- Motor: CEN Racing 3658 3000KV brushless (sensorless)
- Servo: Savox 12kg metal gear, 25T spline (0.26s/60° at 4.8V, 0.23s/60° at 6.0V)
- Radio: AMP‑30 2.4GHz 3‑channel transmitter with digital trims, ST D/R and EPA; requires 4x AA (not included)
- Receiver: AMP30 3‑channel, 2.4GHz, DC 4.8–6.0V

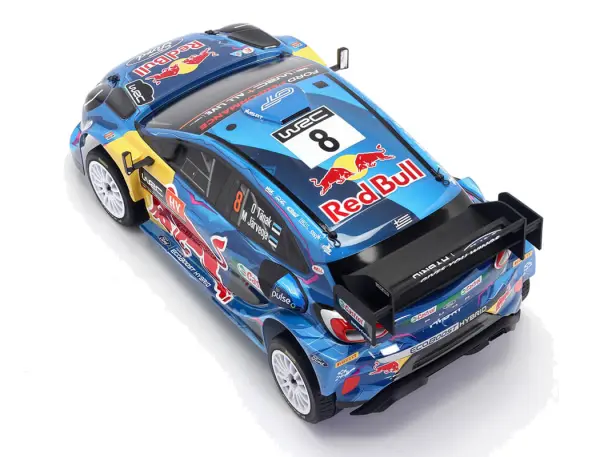

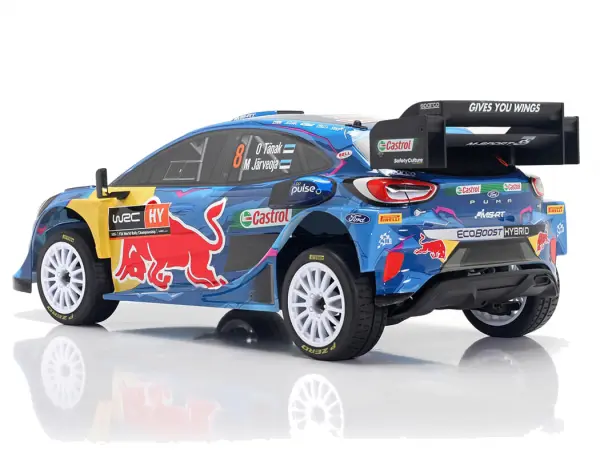

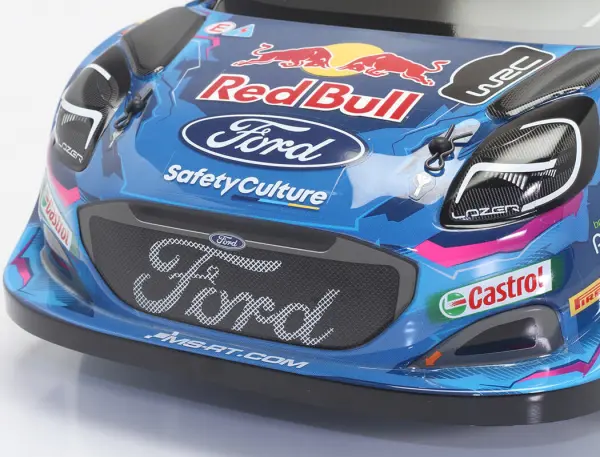

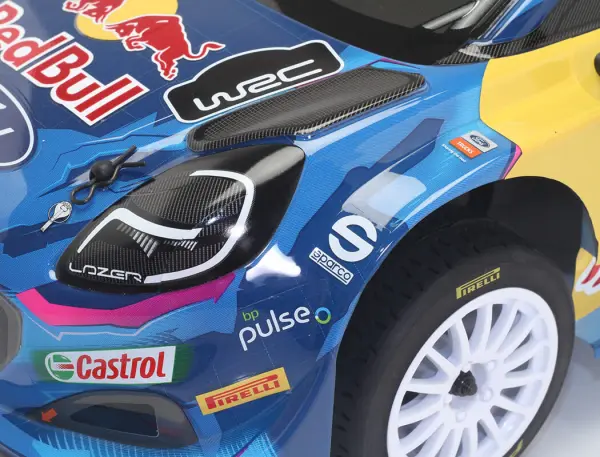

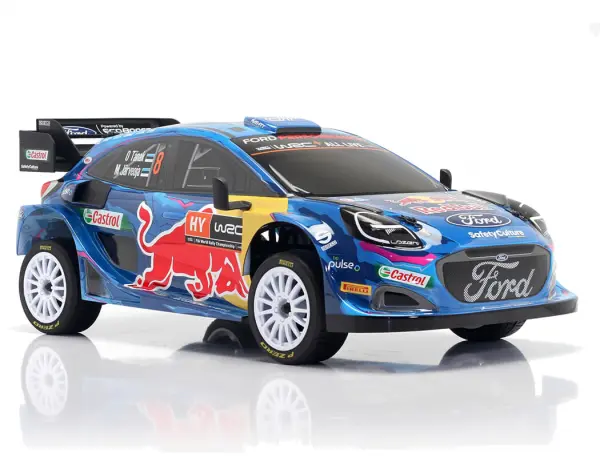

Body

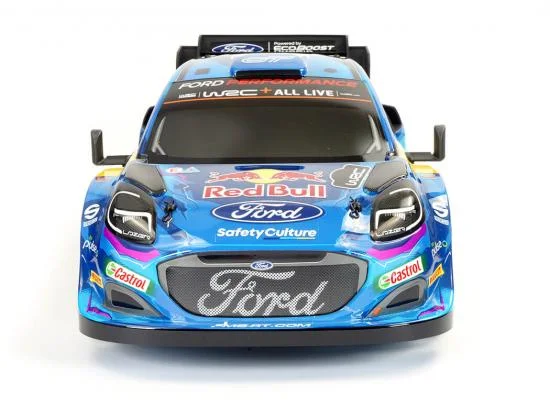

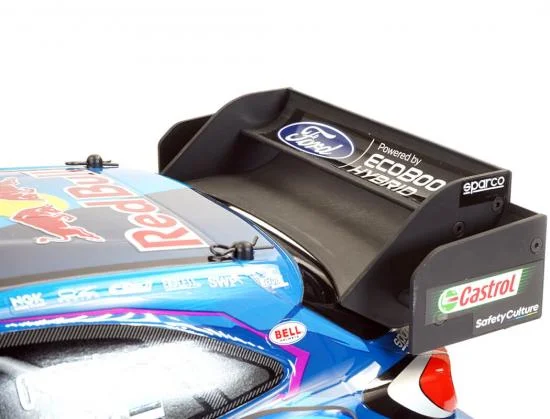

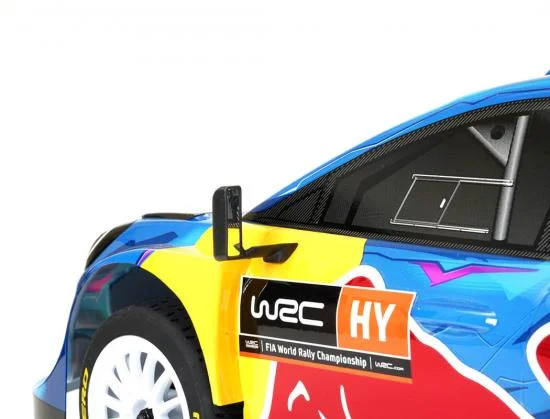

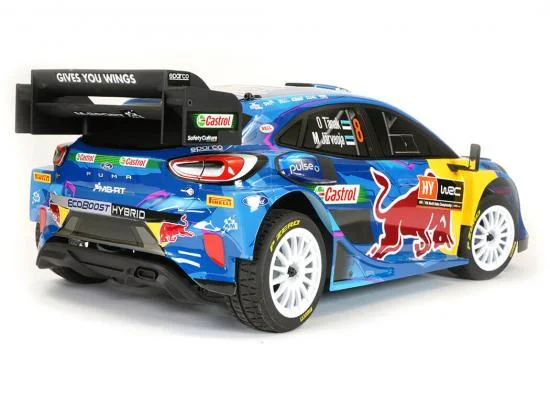

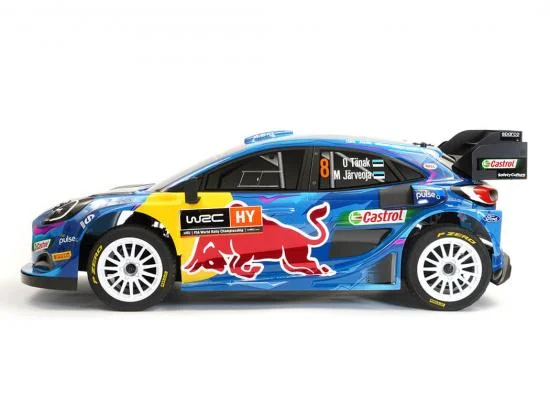

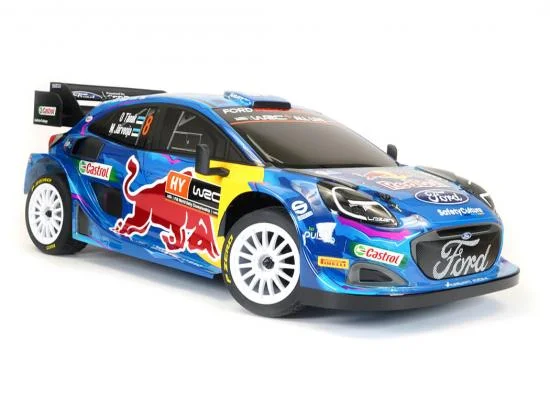

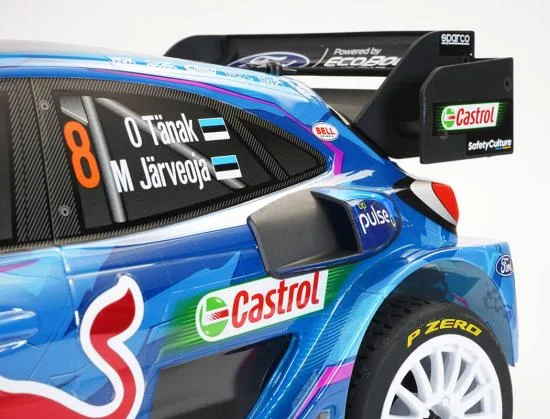

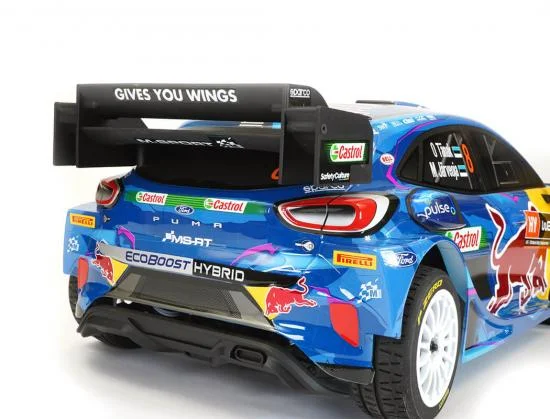

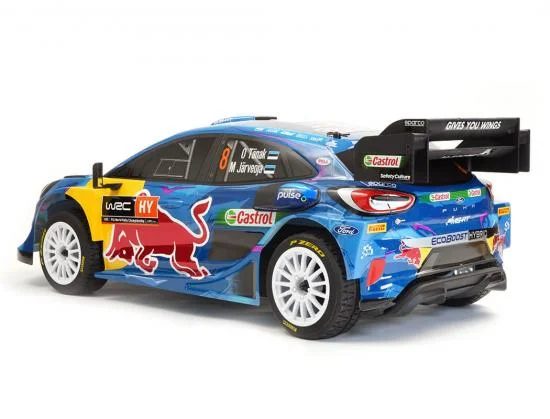

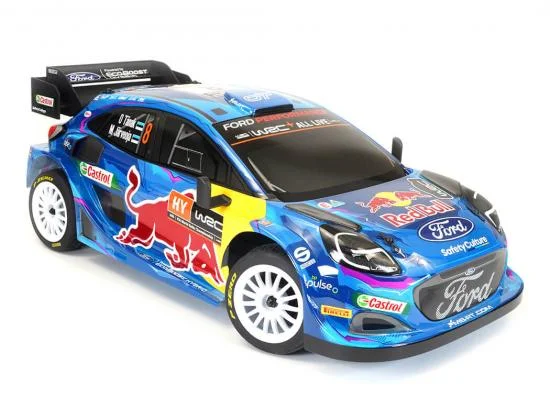

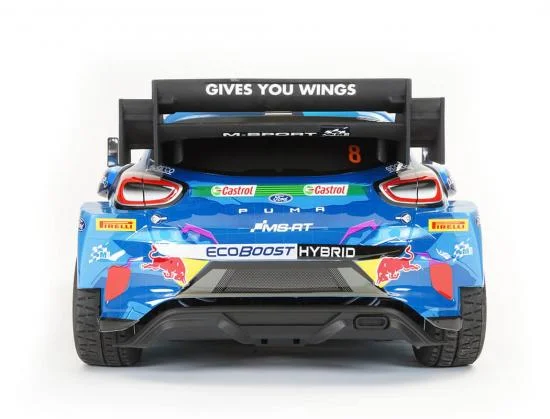

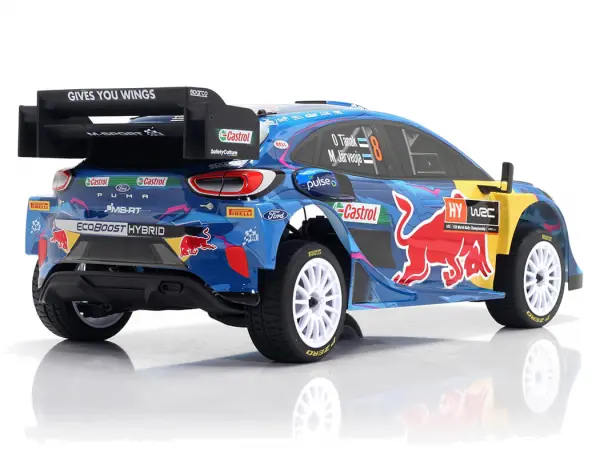

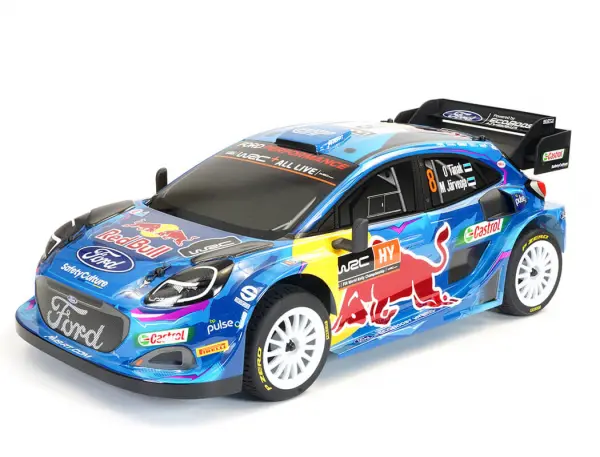

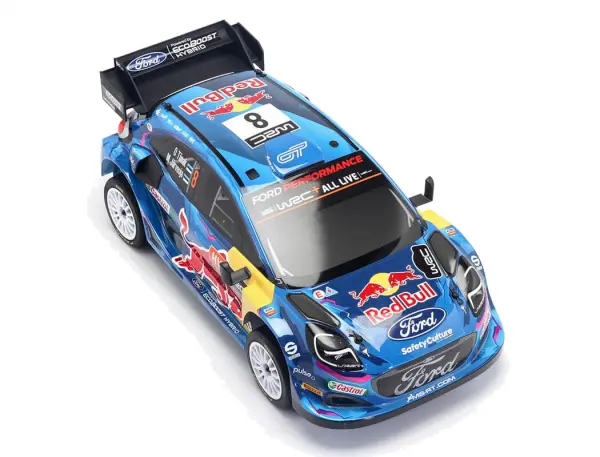

- Officially licensed 2023 M‑Sport Ford Puma Rally 1 edition
- Fully detailed injection‑moulded accessories
- Approx. size: Length 510mm / Width 240mm
Chassis & Suspension
- 3mm aluminium chassis with front and rear 3mm aluminium shock towers
- Aluminium arm brace and full precision ball bearings
- Wider body mount positions with foam‑backed front skid/bumper
- Injection‑moulded rear diffuser
- Easy‑access battery tray (142mm x 48mm)
- Aerodynamic lower arm design
- Big‑bore, oil‑filled, adjustable coilover shocks
- 12mm oversize shock bodies with 3mm hardened, polished shafts
- Racing springs, adjustable turnbuckles
- Adjustable wheelbase ±6mm
Drivetrain & Transmission
- Full‑time 4‑wheel drive with centre shaft drivetrain
- Metal transmission gears and aluminium adjustable motor mount
- Oil‑filled two‑differential system with centre direct drive
- High‑efficiency transmission with 6‑gear bevel differentials
- Hardened steel front/rear dog bones and outdrives
- Gear ratios: Spur/Pinion 46/14T (3.29:1), Ring & Pinion 40/17T (2.35:1)
Wheels & Tyres
- High‑impact, lightweight WRC racing wheels (56 x 35.50mm)
- High‑performance rubber compound tyres (56 x 80 x 35.50mm)
Specifications
- Chassis length: 460mm (18.11in)
- Chassis width: 230mm (9.06in)
- Wheelbase: 300mm (11.80in)
- Ground clearance: 25mm (0.98in)
- Weight: 2.5kg (5.51lb)
Required to Complete
- Battery and charger (recommended 2S–3S Li‑Po)
Secured by Stripe
CEN 2023 M-Sport Ford Puma Rally 1:8 RTR Manuals & Guides
Manuals & Guides
Specifications
CEN 2023 M-Sport Ford Puma Rally 1:8 RTR Features
ESC
- 100A WP-MAX10-SCT-100A-3S RTR Sensorless with T-Plug (powered by HobbyWing).
- 2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.
- Water-Proof and Dust-Proof for All Weather.
- Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.
- Built-In Capacitor Module.
- Automatic Throttle Range Calibration.
- Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
- Over-Heat Protection and Throttle Signal Loss Protection.
- 5 Levels of acceleration/punch.
- 9 Levels of maximum brake force.
Motor
- CEN Racing High Performance 3658 3000KV Brushless Motor (Sensorless).
Servo
- 12Kg Metal Gear Servo (By Savox).
- 4.8V - 0.26 sec/60° 10.0 kg-cm.
- 6.0V - 0.23 sec/60° 12.0 kg-cm.
- With 25T Horn Gear Spline.
Radio System
AMP-30 TX 3-Channel Transmitter.
- Frequencies: 2.4GHz.
- Digital Trimming.
- Steering Dual-Rate (ST D/R) Adjustment.
- End Point Adjustment (EPA).
- Build in Failsafe.
- Power Supply: 4 x AA Batteries (Not Included).
AMP30 RX 3-Channel Receiver.
- Frequency: 2.4GHz.
- Power Supply: DC 4.8 ~ 6.0V.
- Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).
Body
- Official Licensed 2023 M-Sport Ford Puma Rally 1 Edition
- Fully Detailed Injection-Molded Body Accessories Body Details
- Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)
Chassis
- 3mm Aluminum Chassis
- Front and Rear 3mm Aluminum Shock Towers
- Aluminum Arm Brace
- Full Precision Ball Bearing Support
- Wider Body Mount Positions for Better Support
- Front Skid plate with Durable Foam Bumper
- Injection-Molded Rear Diffuser
- Easy Access Battery Tray
- Battery Tray Size 142mm x 48mm
Suspension
- Aerodynamic Lower Arm Suspension Design
- Big Bore Oil Filled Adjustable Coil Over Shocks
- 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft
- Racing Spring
- Adjustable Turnbuckles
- Adjustable Wheelbase +/- 6mm
Gear Ratio
- Spur / Pinion 46/14T 3.29:1
- Ring & Pinion 40/17T 2.35:1
Drivetrain
- Full Time 4-Wheels Drive
- Center Shaft Drivetrain for more power transferred to the wheels
Metal Transmission Gears
- Aluminum Adjustable Motor Mount
- Oil Filled Two Differential Drive System
- Center Direct Drive
- Hight Efficient Transmission System
- 6 Gear Bevel Gear Type Differential
- Front / Rear Harden Steel Dog Bone and outdrives
Wheel
- High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.
Tyres
- High Performance Racing Rubber Compound Tyres 56 x 80 x 35.50 mm.
Specifications
Chassis Length: 18.11 inches (460mm)
Chassis Width: 9.06 inches (230mm)
Wheelbase: 11.80 inches (300mm)
Ground Clearance: 0.98 inches (25mm)
Weight: 5.51 lb. 2.5kg
Needed To Complete
- Battery and charger (Recommend 2S - 3S Lipo Battery)
Key Info:
- Brand: CEN
- Part No: CEN8999
- Barcode: 4717873089990
- Scale: 1:8
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushless
- Surface Type: Off Road
- Vehicle Type: Touring / Rally Car
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
I visited the shop today 12 October 2024 and purchased 2 7.2 volt batteries for my 1/14 Tamiya Scania r620 6x4 highline blue edition. I got excellent advice about using a clear storage box from Argos as a transport box and display box, by turning it upside down and fitting a board in it to stop the truck moving in transport to a location. Travelled from Coventry CV6
I recently purchase this RC Car (my first in a very long time) and I can honestly say I am blown away by the looks and performance (I am running 3S Lipo). The Service from Wheelspin Models was great, no issues at all.
Highly recommended!
Questions & Answers
Here are the wheels: CEN-CM0601
And the tyres: CEN-CM0501
Those dog bones are 56mm from pin to pin.
There are several options available to you on our website - there are either PayPal pay in three, or finance options when you go to the checkout.
Yes this one will work well SCH-SK-600142-02
No upgrades have been release yet as soon as they are they will be under the spares section as optional parts.
Stock statuses including due dates if know are below the add to cart button.
For more in depth queries, please contact us.
