CEN Ford Ranger MS-RT 1:10 RTR Truck – Command Grey
Brand: CEN
Part No: CEN8972
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The CEN CML Ford Ranger MS-RT 1:10 RTR Truck in Command Grey blends officially licensed scale detail with durable engineering for confident trail performance. Built around a steel frame CMS chassis and sealed 4WD drivetrain, it comes factory-equipped with proven electronics and precision hardware. Part number CEN8972.
Electronics
- Hobbywing SC-60A WP-1060 brushed ESC: waterproof and dust-proof, built-in capacitor module, automatic throttle range calibration, LiPo/NiMH low-voltage cut-off, overheat and signal-loss protection, easy jumper programming
- Mabuchi RS-550 high-torque brushed motor
- 12kg servo (O.E.M. by Savox): 4.8V 0.26s/60° 10.0 kg-cm; 6.0V 0.23s/60° 12.0 kg-cm; 25T horn spline
- AMP 30 3-channel pistol-grip transmitter with digital trims, steering dual rate (ST D/R), end point adjustment (EPA) and built-in failsafe
Chassis & Suspension

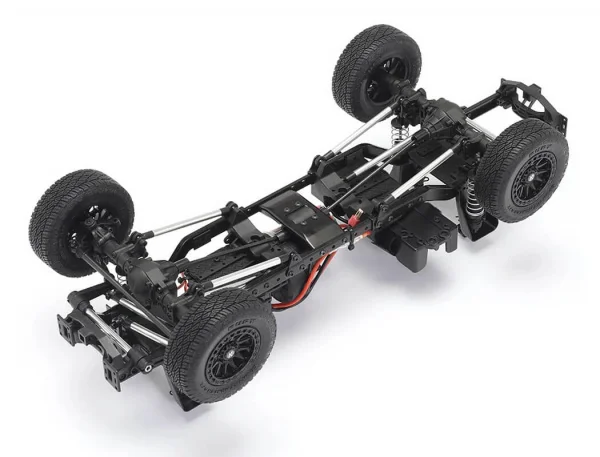

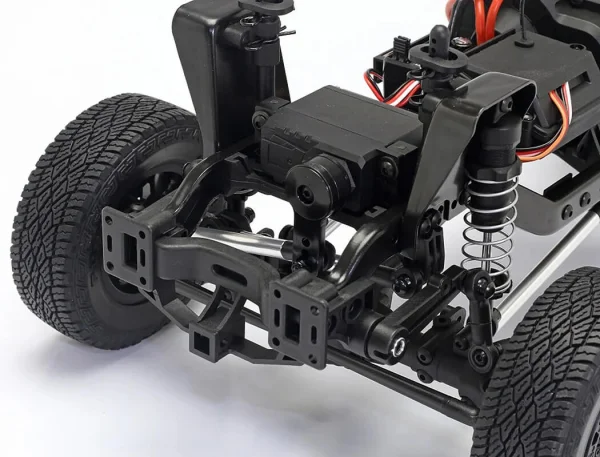

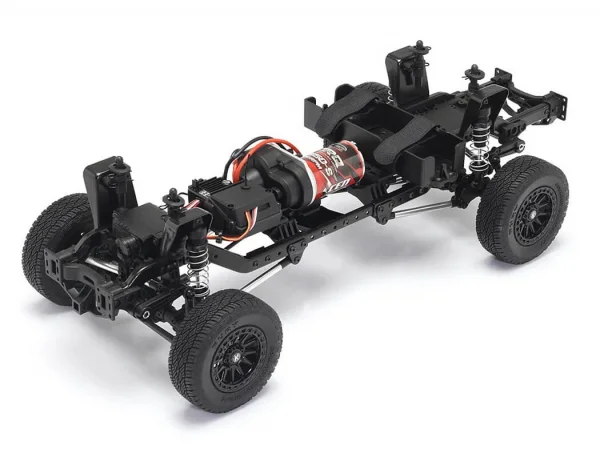

- Steel frame with CMS (chassis-mounted servo) layout
- Stamped steel shock hoops and steel skid plate
- Full precision ball bearing support and adjustable turnbuckles
- 78 mm big-bore, oil-filled, adjustable coilover shocks
- 12 mm oversized shock bodies with 3 mm hardened polished shafts

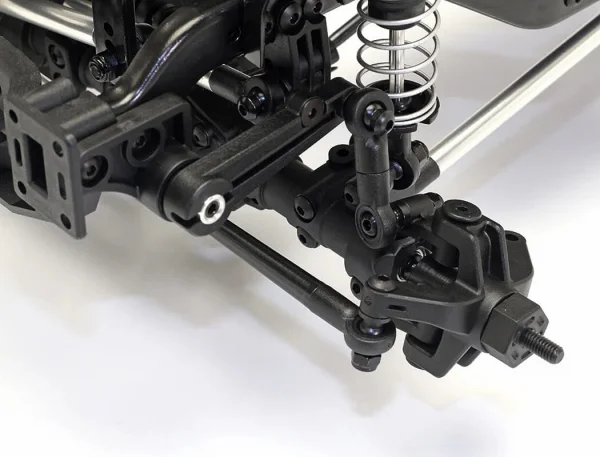

- Hardened steel steering drag link and CNC-machined 6 mm aluminium linkage
- Front and rear sway bars
Drivetrain
- Sealed transmission case and sealed axle housings
- 4-wheel drive with centre shaft driveline for efficient power transfer
- Highly efficient, wide-range, easy-change gearbox design
- 5 mm hardened steel axle shafts
- Metal transmission gears
- Planetary gear-type differentials with differential centre locker (front/rear)
- Sway bar included
Tyres & Body
- Official licensed Fury Tyres – Country Hunter R/T (46 x 91 x 31 mm)

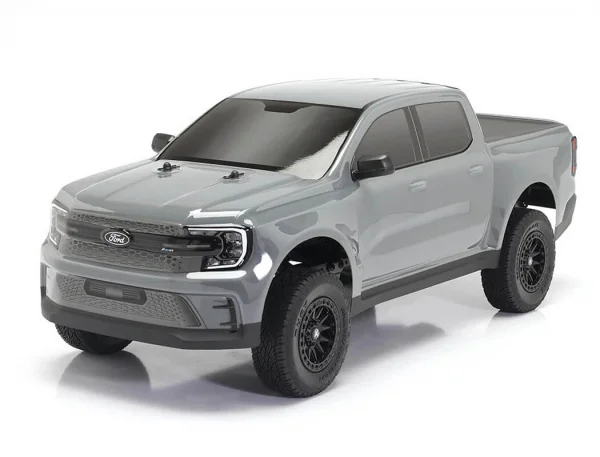

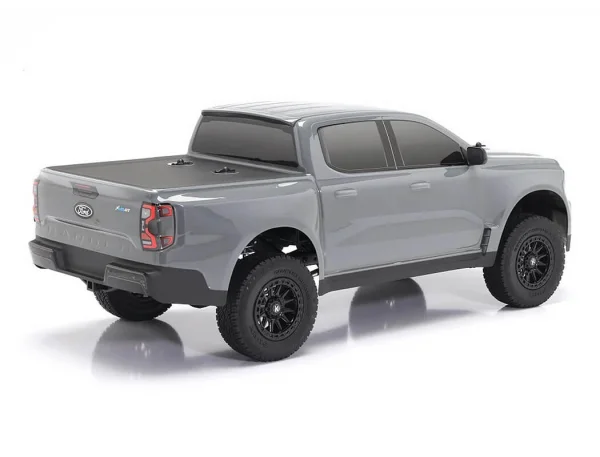

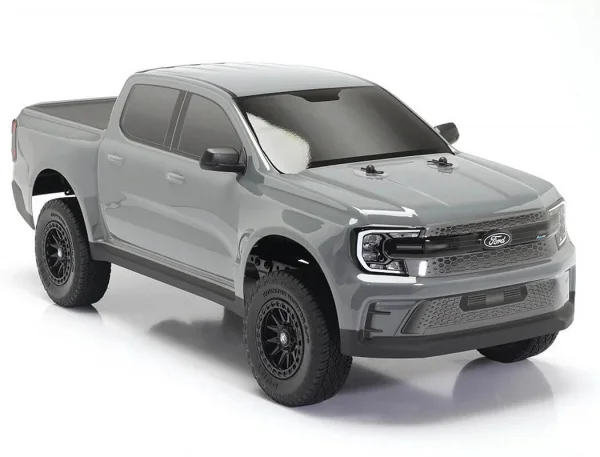

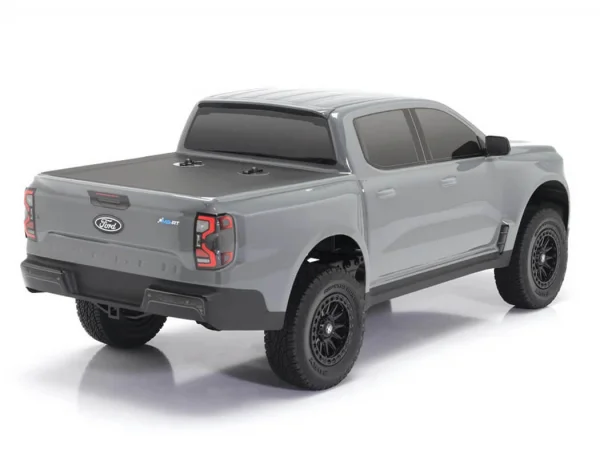

- Officially licensed by Ford Motor – Ford Ranger MS-RT

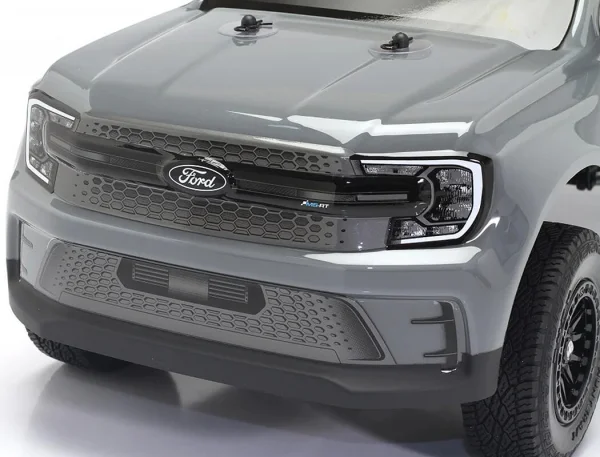

- Scale body details with injection-moulded mirrors and roof spoiler
Specifications
- Length: 550 mm (21.65 in)
- Width: 230 mm (9.1 in)
- Wheelbase: 329 mm (12.95 in)
- Ground clearance: 55 mm (2.2 in)
- Weight: 2.15 kg (4.7 lb)
- Gear ratios: High speed 1.56:1; High torque 2.8:1; Spur/Pinion 32p 85/10T; Ring & Pinion 30/15T (2:1)
Required to Complete
- Battery and charger
Secured by Stripe
CEN Ford Ranger MS-RT - Command Grey Manuals & Guides
Specifications
SC-60A WP-1060-Brushed (Powered by HobbyWing):
- Water-proof and dust-proof for all weather
- Built-In Capacitor Module
- Automatic throttle range calibration
- Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
- Over-Heat protection and throttle signal loss protection
- Easily programmed with jumpers
Motor-RS-550 high Torque Motor - Power By Mabuchi Motor
Servo -12Kg Servo O.E.M. by Savox:
- 4.8V 0.26 sec/60deg 10.0 kg-cm
- 6.0V 0.23 sec/60deg 12.0 kg-cm
- 25T Horn Gear Spline
Radio System:
- Pistol-Grip AMP 30 3 Channel Transmitter
- Digital Trimming
- Steering Dual-Rate (ST D/R) Adjustment
- End Point Adjustment (EPA)
- Built in Failsafe
Chassis:
- Steel Frame
- CMS (Chassis Mounted Servo) Chassis Design
- Stamped Steel Shock Hoops
- Steel Skid Plate.
- Full Precision Ball Bearing Support
- Adjustable Turnbuckles
- Steel skid Plate
Suspension:
- 78mm Big Bore Oil Filled Adjustable Coil Over Shocks.
- 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
- Harden Steel Steering Drag Link.
- CNC Machined 6mm Aluminium Linkage.
- Front / Rear Sway Bar.
Drivetrain:
- Sway bar included
- 4 Wheel Drive
- Center Shaft Drive Train for more power transferred to the wheels
- Highly Efficient Transmission System
- Wide Range Easy Changeable Gear Box Design
- Sealed transmission eliminates dirt and dust
- Sealed Axle housing
- Sealed Transmission Case
- 5mm Hardened Steel Axle shaft
- Differential Center Locker Front/Rear Planetary Gear Type
- Metal Transmission Gears
- Planetary Gear type Differential
Tyres:
- Official Licensed Fury Tyres
- Country Hunter R/T Tyre
- 46mm x 91mm x 31mm
Official Licensed by Ford Motor
- Ford Ranger MS-RT
- Scale Body Details

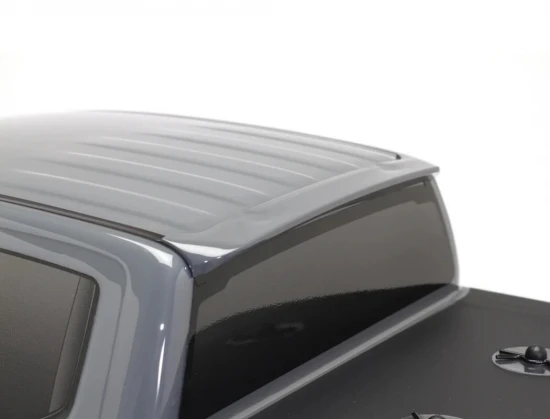

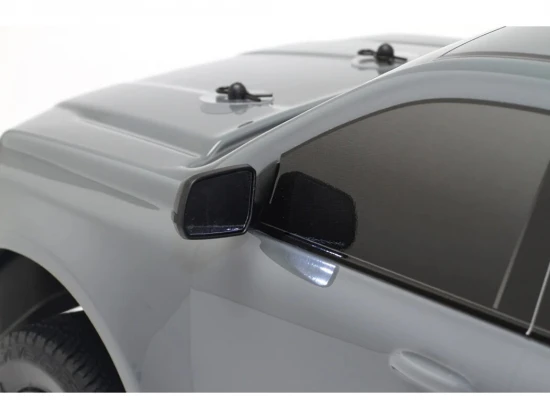

- Injection Molding Mirror and Roof Spoiler
Length: 21.65 inch (550mm)
Width: 9.1 inch (230mm)
Wheelbase: 12.95 inch (329mm)
Ground Clearance: 2.2 inch (55mm)
Weight: 4.7 lb. 2.15kg
Gear Ratio:
- Hi / Speed Ratio 1.56:1
- Hi / Torque Ratio 2.8:1
- Spur / Pinion Gear 32p85/32p10T
- Ring & Pinion Gear 30/15T 2:1
- Battery and Charger
Key Info:
- Brand: CEN
- Part No: CEN8972
- Barcode: 4717873089723
- Scale: 1:10
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushed
- Surface Type: Off Road
- Vehicle Type: Short Course Truck
