CEN Ford Ranger MS-RT 1:10 RTR Truck – Fast Blue
Brand: CEN
Part No: CEN8973
Shadow Stock: Usually ships next day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the CEN Ford Ranger MS-RT - Fast Blue
Description

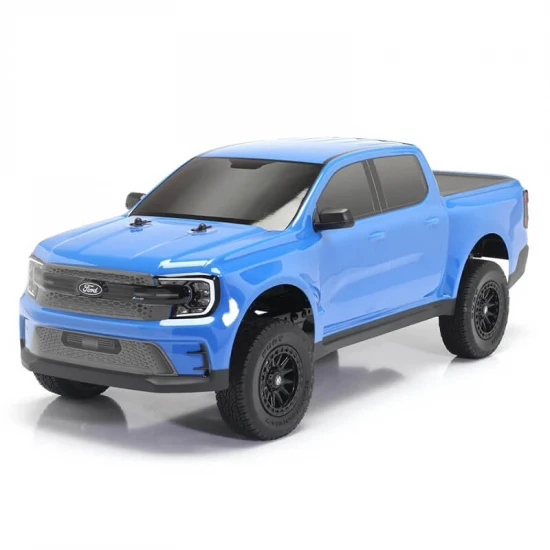

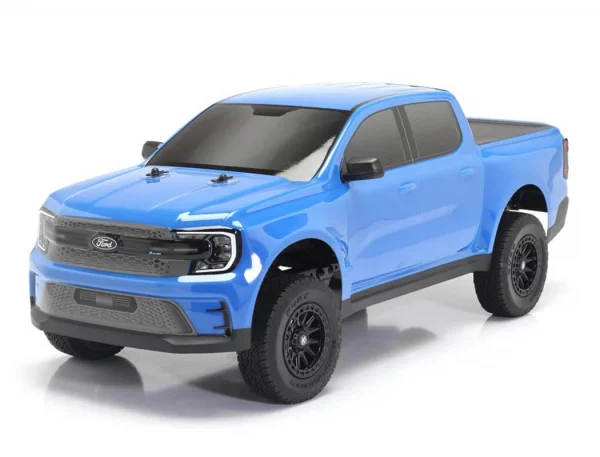

The CEN Racing Ford Ranger MS-RT 1/10 RTR Truck in Fast Blue (CEN8973) blends officially licensed Ford styling with a robust steel-frame 4WD chassis. From CEN CML, this ready-to-run platform pairs a waterproof Hobbywing WP-1060 ESC with an RS-550 high-torque motor and a 12kg Savox OEM servo for dependable, precise control. An AMP 30 3-channel pistol transmitter with trims, EPA and failsafe completes the electronics package.
Radio, ESC and Motor
- SC-60A WP-1060 brushed ESC (Hobbywing): water- and dust-proof, built-in capacitor module, auto throttle range calibration, LiPo/NiMH low-voltage cut-off, over-heat and signal-loss protection, jumper programming.
- RS-550 high-torque motor (Mabuchi).
- 12kg servo OEM by Savox: 0.26s/60° at 4.8V (10.0 kg-cm); 0.23s/60° at 6.0V (12.0 kg-cm); 25T horn gear spline.
- AMP 30 3-channel pistol transmitter with digital trimming, steering dual-rate, end point adjustment and built-in failsafe.
Chassis, Suspension and Drivetrain

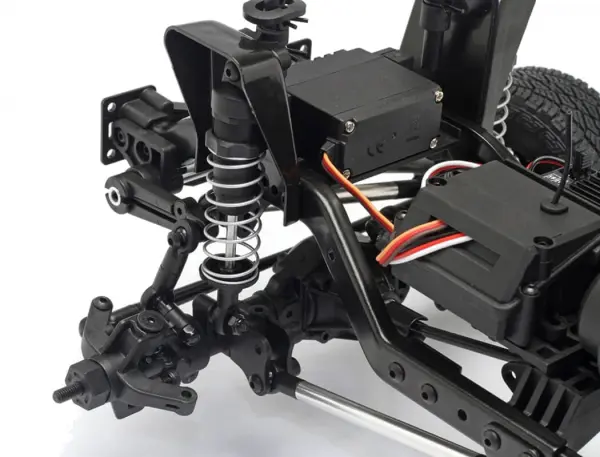

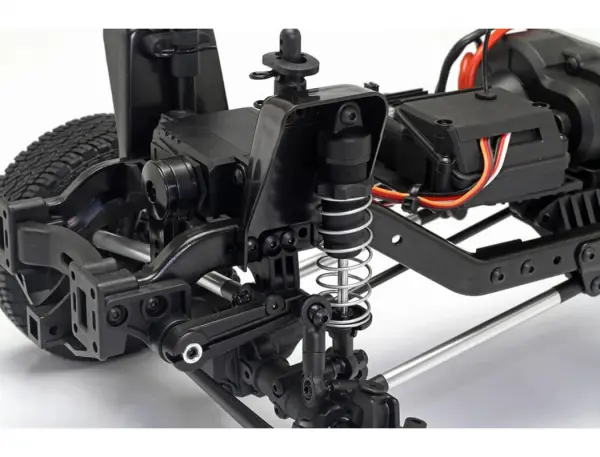

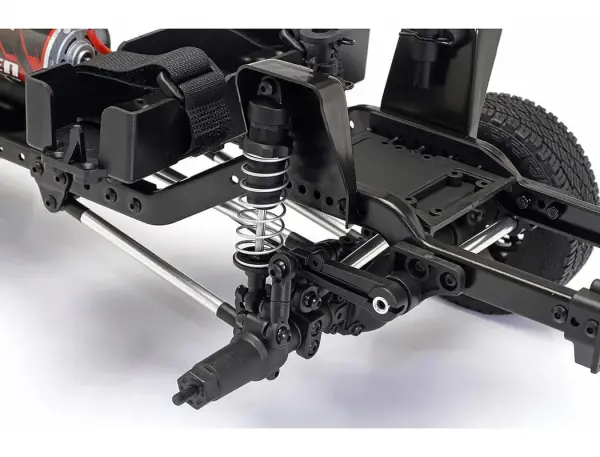

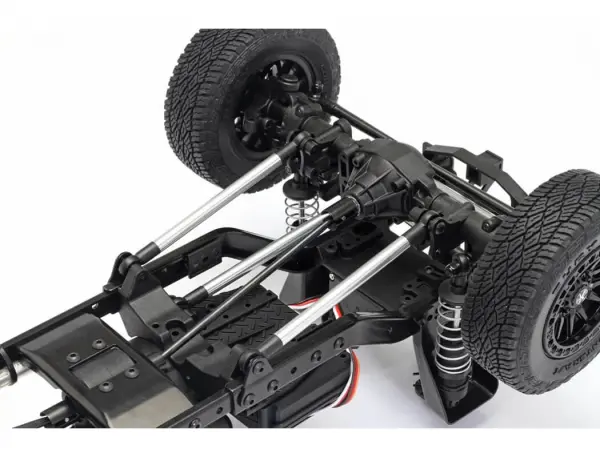

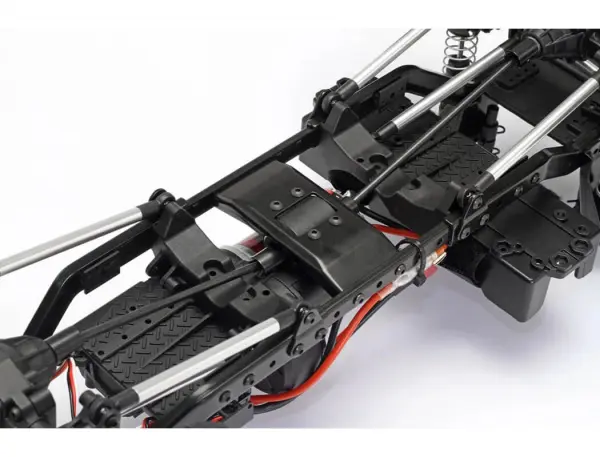

- Steel frame CMS chassis with stamped steel shock hoops and steel skid plate, adjustable turnbuckles and full precision ball bearing support.
- 78 mm big bore oil-filled adjustable coilover shocks with 12 mm bodies and 3 mm hardened steel polished shafts.
- Hardened steel steering drag link and CNC-machined 6 mm aluminium linkage; front and rear sway bars.
- 4WD centre shaft drivetrain and highly efficient transmission system with metal transmission gears.
- Wide-range, easy-changeable gearbox; sealed transmission case and axle housings.

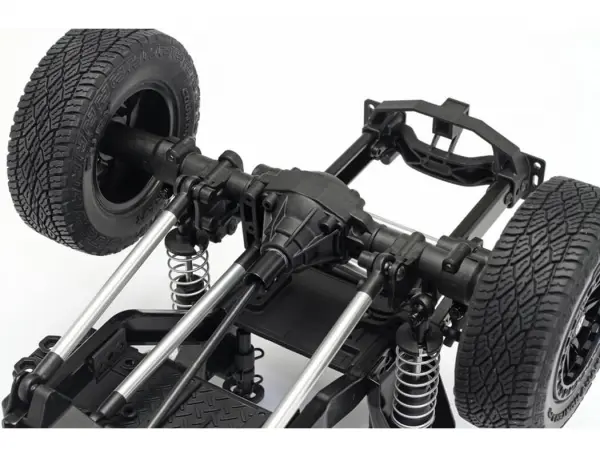

- 5 mm hardened steel axle shafts; planetary gear-type differentials with differential centre locker.
Tyres and Body
- Official licensed Fury Country Hunter R/T tyres, 46 × 91 × 31 mm.

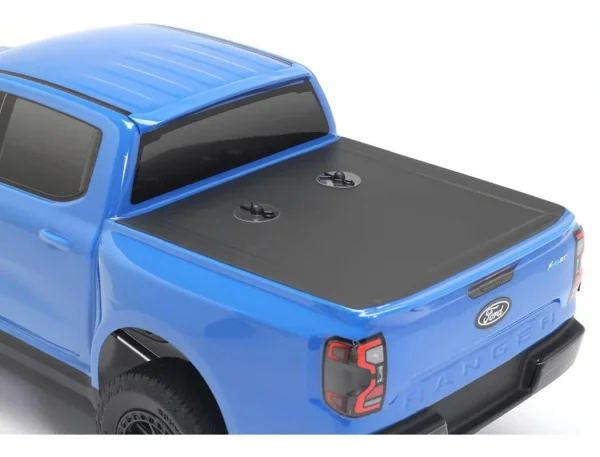

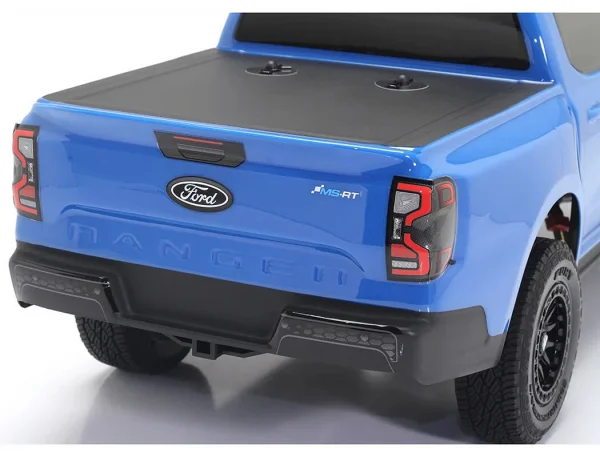

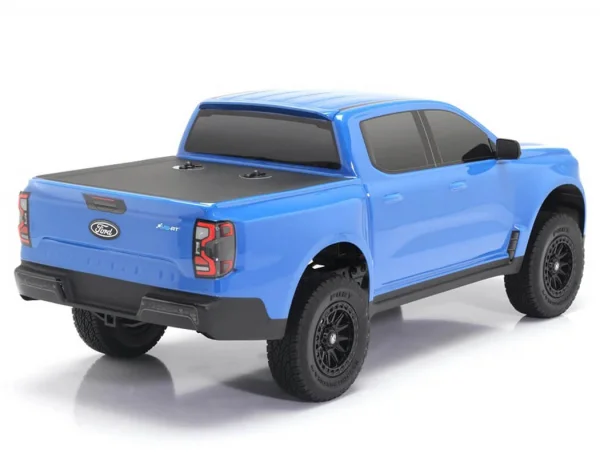

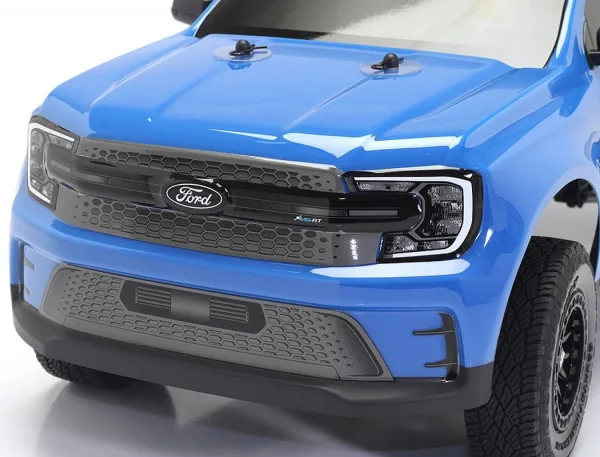

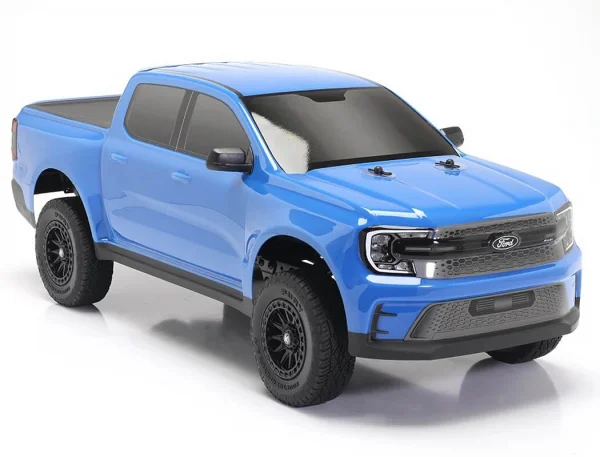

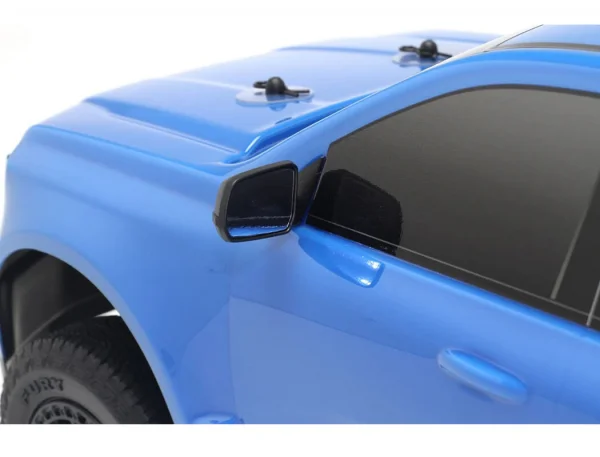

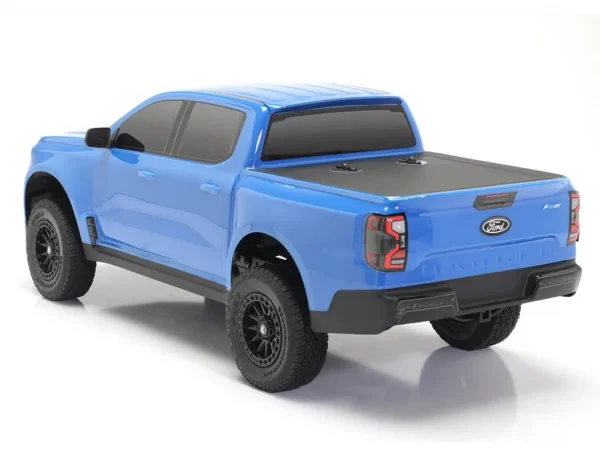

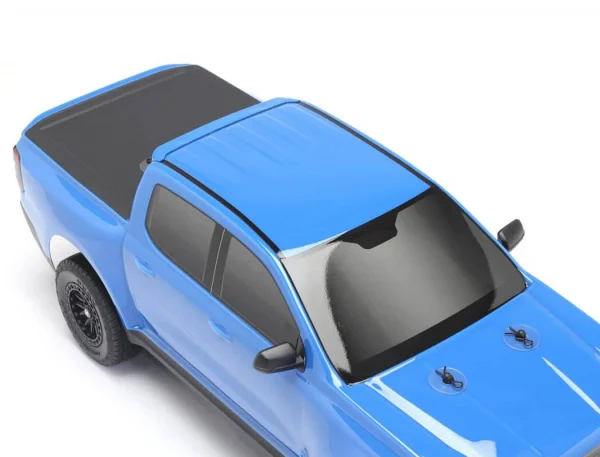

- Officially licensed Ford Ranger MS-RT body with scale details, plus injection-moulded mirrors and roof spoiler.
- Factory-finished Fast Blue colourway.
Specifications
- Length: 21.65 in (550 mm)
- Width: 9.1 in (230 mm)
- Wheelbase: 12.95 in (329 mm)
- Ground Clearance: 2.2 in (55 mm)
- Weight: 4.7 lb (2.15 kg)
- Gear Ratio: Hi/Speed 1.56:1; Hi/Torque 2.8:1; Spur/Pinion 32p85/32p10T; Ring & Pinion 30/15T 2:1
Needed To Complete
- Battery and charger
Secured by Stripe
CEN Ford Ranger MS-RT - Fast Blue Manuals & Guides
Specifications
CEN RACING FORD RANGER MS-RT 1/10 RTR TRUCK - FAST BLUE
Features
SC-60A WP-1060-Brushed (Powered by HobbyWing):
- Water-proof and dust-proof for all weather
- Built-In Capacitor Module
- Automatic throttle range calibration
- Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
- Over-Heat protection and throttle signal loss protection
- Easily programmed with jumpers
Motor-RS-550 high Torque Motor - Power By Mabuchi Motor
Servo -12Kg Servo O.E.M. by Savox:
- 4.8V 0.26 sec/60deg 10.0 kg-cm
- 6.0V 0.23 sec/60deg 12.0 kg-cm
- 25T Horn Gear Spline
Radio System:
- Pistol-Grip AMP 30 3 Channel Transmitter
- Digital Trimming
- Steering Dual-Rate (ST D/R) Adjustment
- End Point Adjustment (EPA)
- Built in Failsafe
Chassis:
- Steel Frame
- CMS (Chassis Mounted Servo) Chassis Design
- Stamped Steel Shock Hoops
- Steel Skid Plate.
- Full Precision Ball Bearing Support
- Adjustable Turnbuckles
- Steel skid Plate
Suspension:
- 78mm Big Bore Oil Filled Adjustable Coil Over Shocks.
- 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
- Harden Steel Steering Drag Link.
- CNC Machined 6mm Aluminium Linkage.
- Front / Rear Sway Bar.
Drivetrain:
- Sway bar included
- 4 Wheel Drive
- Center Shaft Drive Train for more power transferred to the wheels
- Highly Efficient Transmission System
- Wide Range Easy Changeable Gear Box Design
- Sealed transmission eliminates dirt and dust
- Sealed Axle housing
- Sealed Transmission Case
- 5mm Hardened Steel Axle shaft
- Differential Center Locker Front/Rear Planetary Gear Type
- Metal Transmission Gears
- Planetary Gear type Differential
Tyres:
- Official Licensed Fury Tyres
- Country Hunter R/T Tyre
- 46mm x 91mm x 31mm
Official Licensed by Ford Motor
- Ford Ranger MS-RT
- Scale Body Details

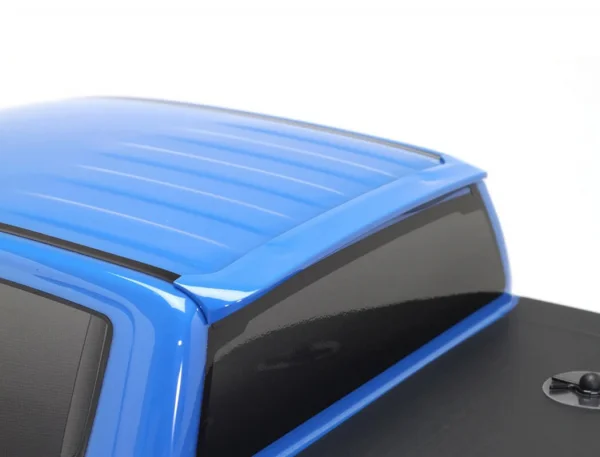

- Injection Molding Mirror and Roof Spoiler
Specifications
Length: 21.65 inch (550mm)
Width: 9.1 inch (230mm)
Wheelbase: 12.95 inch (329mm)
Ground Clearance: 2.2 inch (55mm)
Weight: 4.7 lb. 2.15kg
Gear Ratio:
- Hi / Speed Ratio 1.56:1
- Hi / Torque Ratio 2.8:1
- Spur / Pinion Gear 32p85/32p10T
- Ring & Pinion Gear 30/15T 2:1
Needed To Complete
- Battery and Charger
Key Info:
- Brand: CEN
- Part No: CEN8973
- Barcode: 4717873089730
- Scale: 1:10
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushed
- Surface Type: Off Road
- Vehicle Type: Short Course Truck
