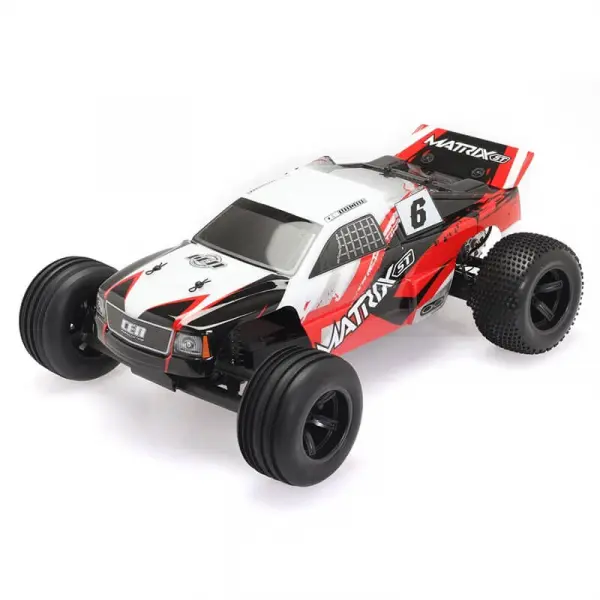

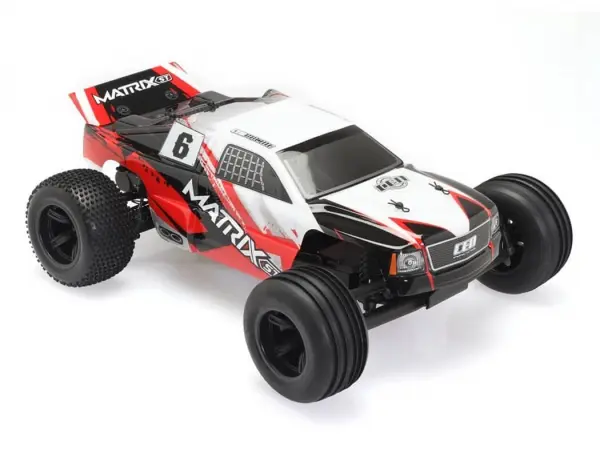

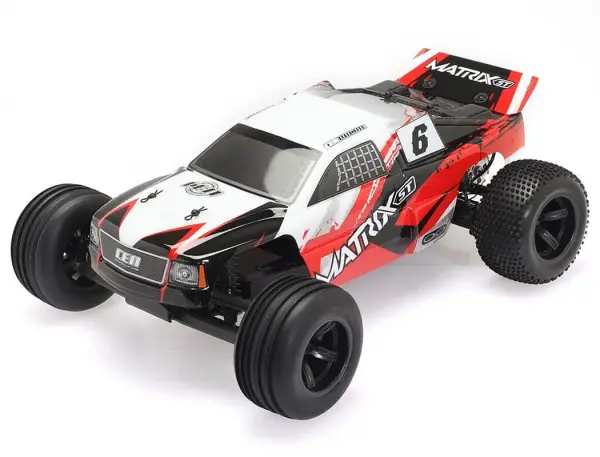

CEN Matrix E 1:10 2WD Stadium Truck RTR CEN8120

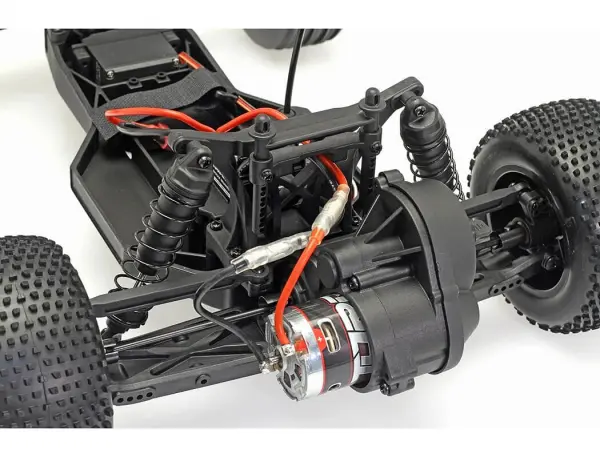

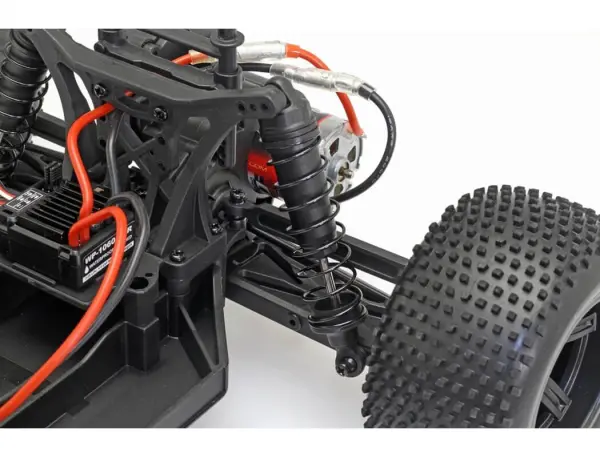

The CEN Racing Matrix E 1:10 2WD Stadium Truck RTR - Red, part number CEN8120, is a ready-to-run radio-controlled stadium truck. Its rear-mounted RS-550 high-torque brushed motor drives the two-wheel-drive transmission, while the full-metal transmission gears and slipper clutch system support the drivetrain. A 60A waterproof and dustproof brushed ESC, powered by HobbyWing, provides automatic throttle calibration, low-voltage cut-off for LiPo and NiMH batteries, overheat protection and throttle signal loss protection.

Features

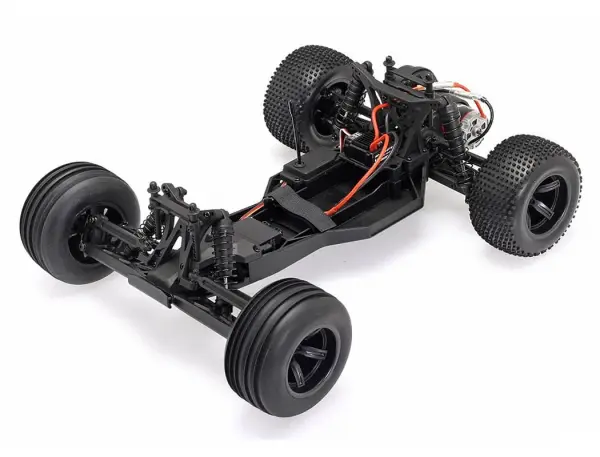

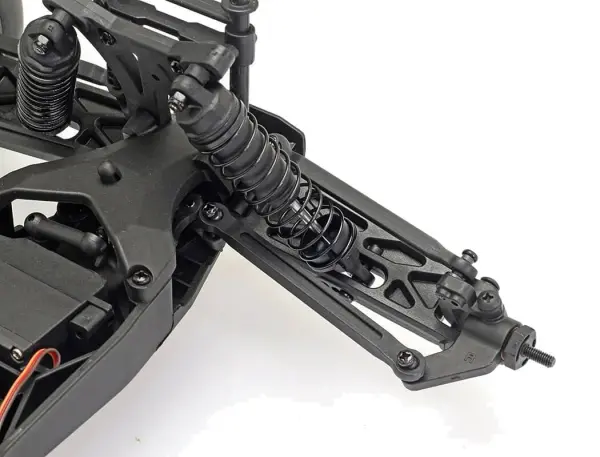

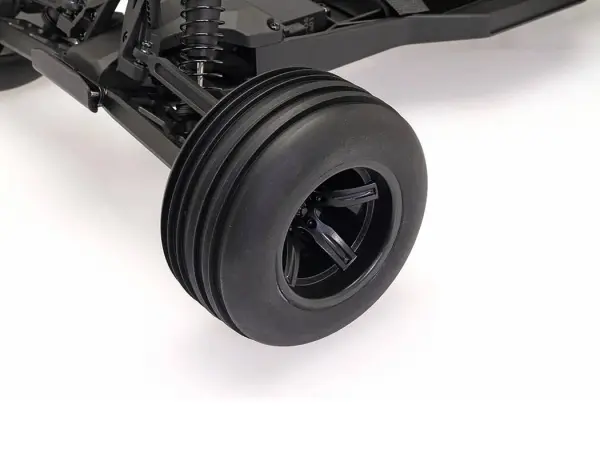

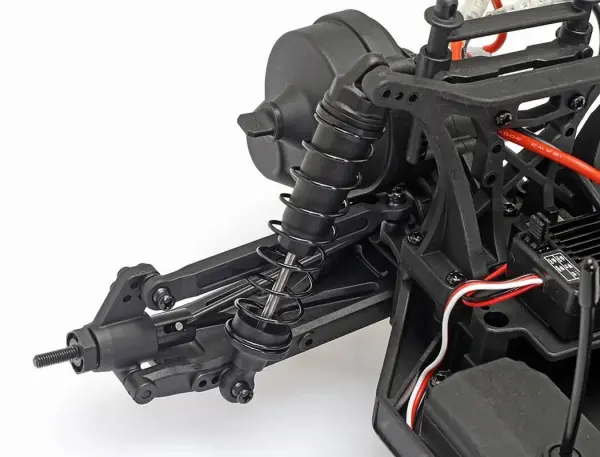

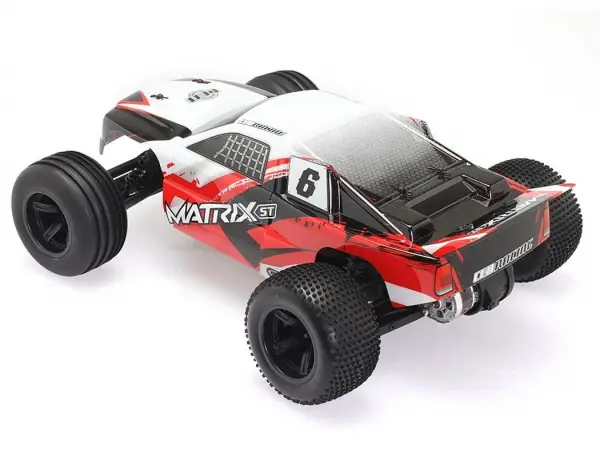

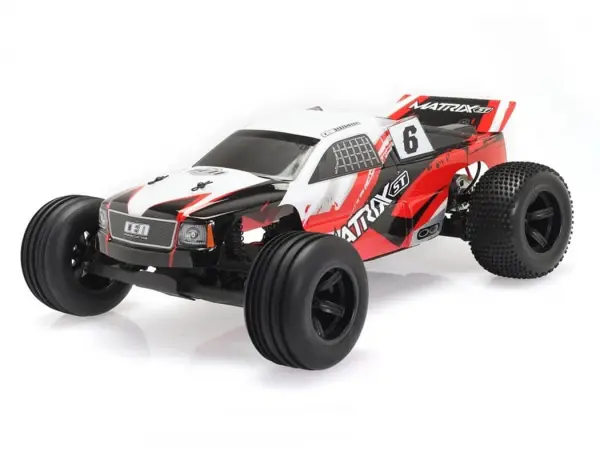

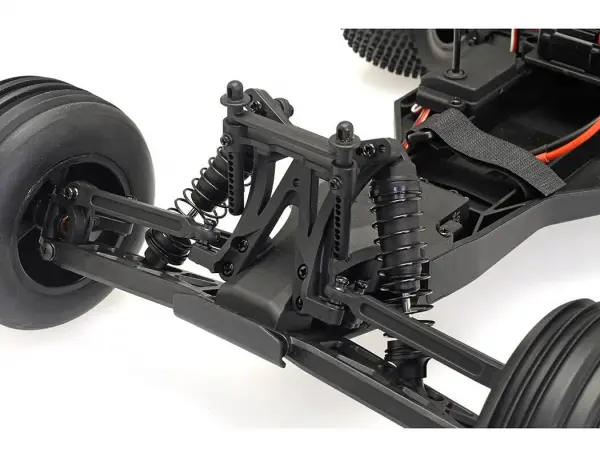

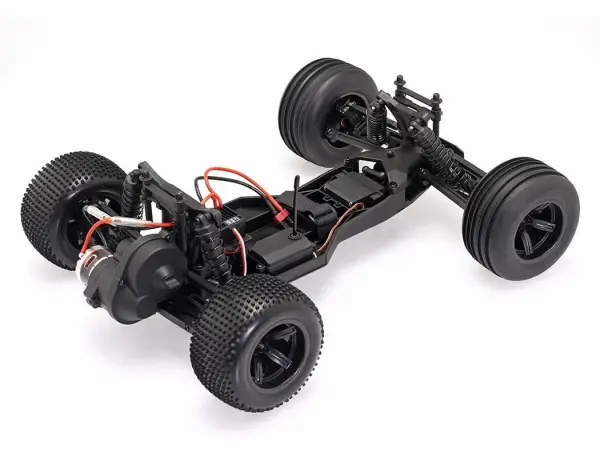

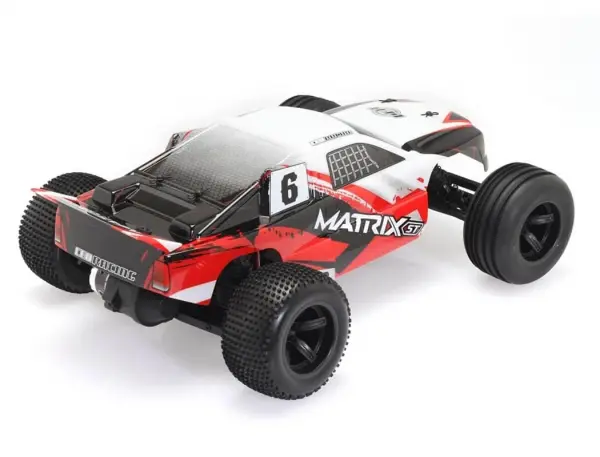

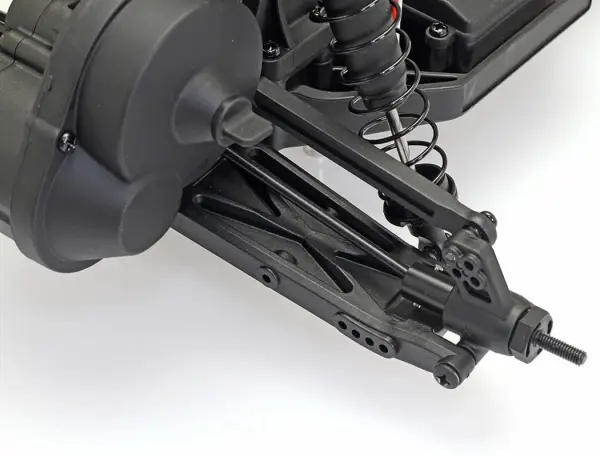

The truck uses a low-centre-of-gravity moulded composite chassis with full precision ball-bearing support and an easy-access battery tray measuring 160 x 48mm. Fully independent double-wishbone suspension is paired with big-bore, oil-filled adjustable coil-over shocks featuring oversized bodies and 3mm hardened steel polished shafts. The pre-painted racing-spec stadium truck body is mounted above 2.2-inch racing-spec tyres and wheels.

Control is provided by CEN's AMP30 three-channel 2.4GHz radio system, including digital trimming, steering dual-rate adjustment, end-point adjustment and a built-in failsafe. The receiver operates from a 4.8–6.0V DC supply, while the supplied steering servo is powered by Savox and uses a 25T horn gear spline. The transmitter requires four AA alkaline batteries, which are not included.

Specifications

• Scale: 1:10
• Drive: 2WD rear motor

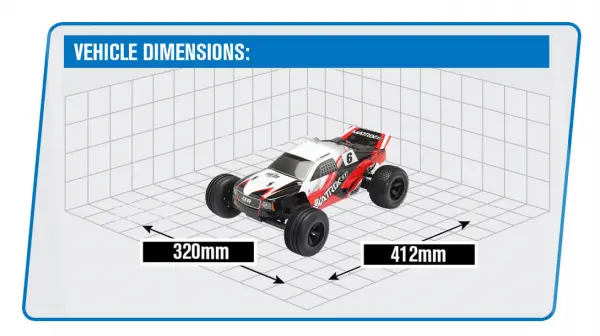

• Length: 412mm
• Width: 320mm
• Wheelbase: 294mm
• Ground clearance: 50mm
• Weight: 1.9kg

As an RTR model, the Matrix E is supplied with its pre-painted body, motor, electronic speed controller, steering servo and 2.4GHz transmitter and receiver system. The combination of adjustable oil-filled shocks, independent suspension and a rear-wheel-drive layout defines its stadium truck configuration.
