RC4WD R7 Crawler Transmission - Z-U0044

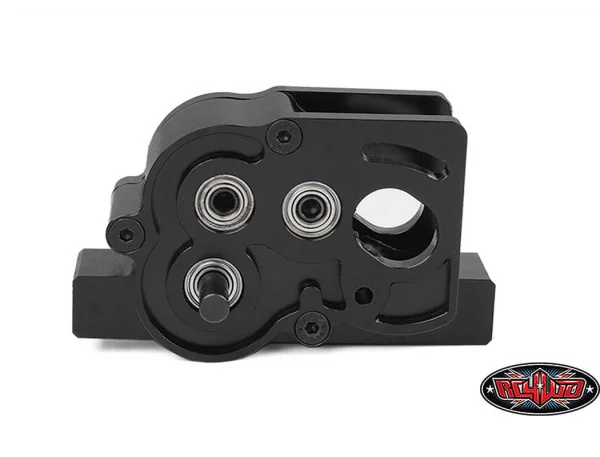

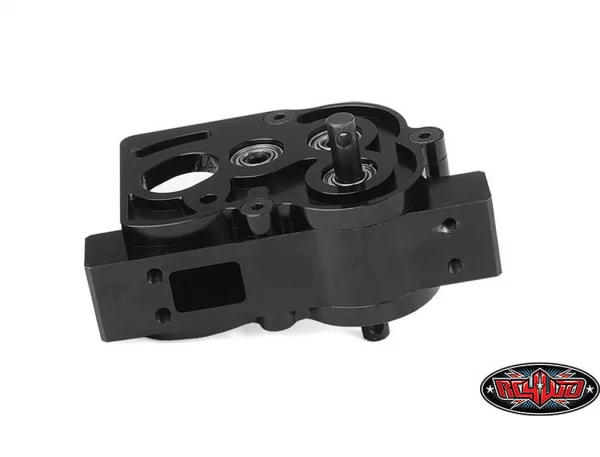

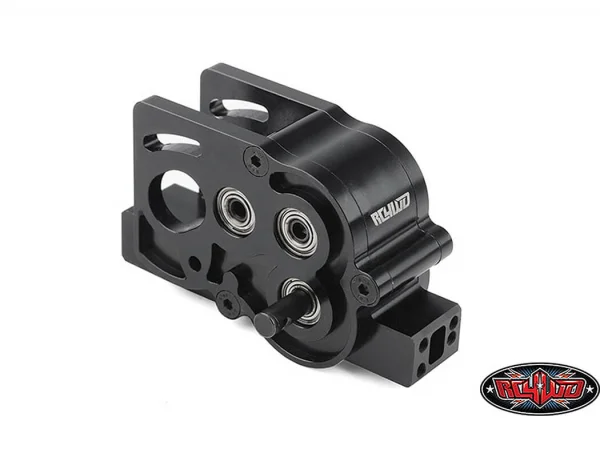

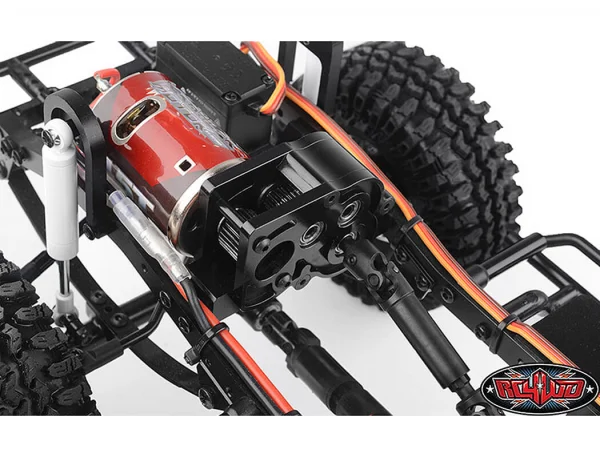

The RC4WD R7 Crawler Transmission (Z-U0044) delivers smooth, dependable drive for scale trail rigs. Built around a machined billet aluminium case and a single-speed 1:10.88 gear set, it balances durability with a compact footprint. With a 5mm output shaft and a lightweight 110.5g build, the R7 is proven by RC4WD team drivers Francesco Sequenzia (Italy) and Daniel Siegl (Austria).

Features

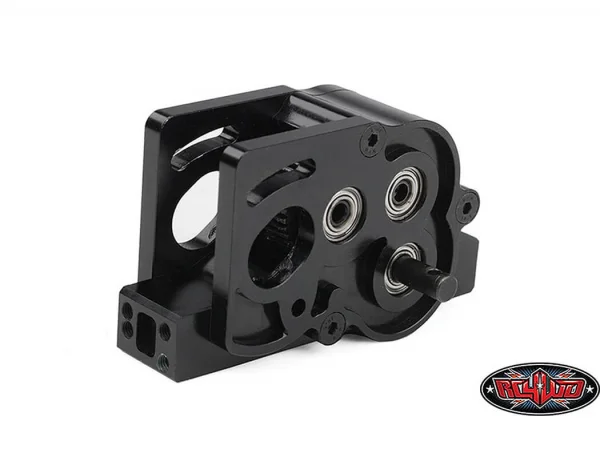

• Machined billet aluminium case
• Single-speed drivetrain
• Concept designed and tested by RC4WD Team Drivers: Francesco Sequenzia (Italy) & Daniel Siegl (Austria)

Specifications

• Body Width: 1.59in / 40.5mm
• Body Length: 2.83in / 71.9mm
• Body Height: 1.76in / 44.9mm
• Output Shaft OD: 0.19in / 5mm
• Gear Ratio: 1:10.88
• Weight: 3.89oz / 110.5g

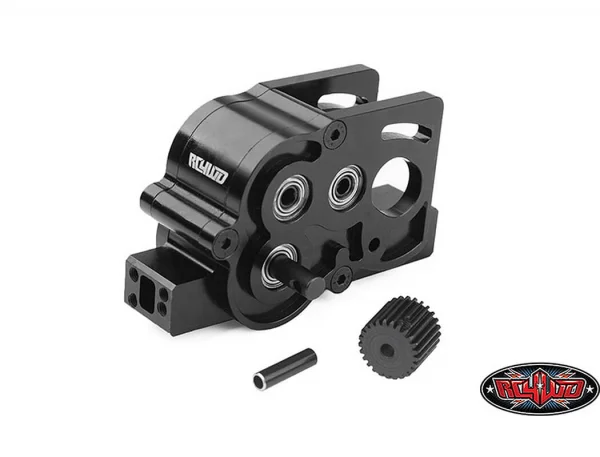

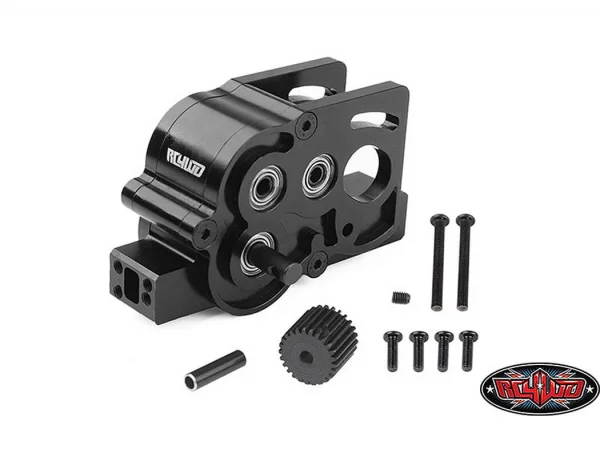

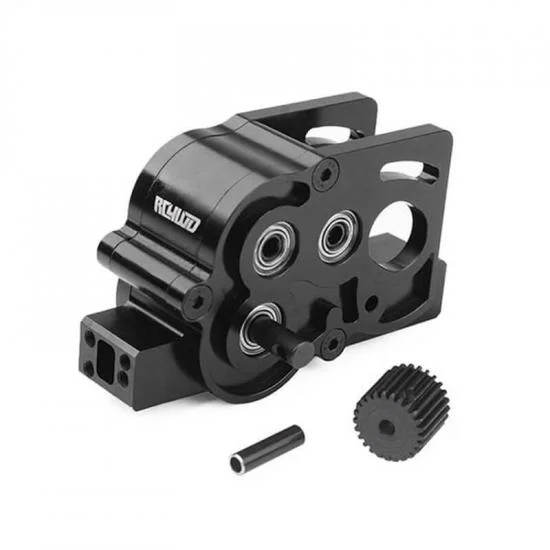

What’s Included

• 1 x RC4WD R7 Crawler Transmission
• 1 x M2 x 8mm Pin

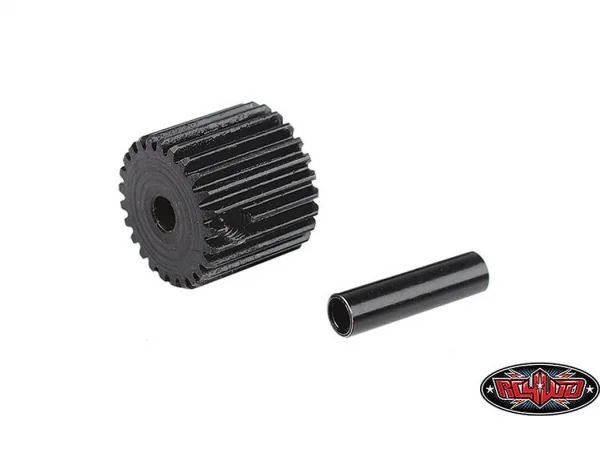

• 1 x Pinion Gear
• 4 x M3 x 10mm Steel Button Head Cap Screws (Z-S0653)
• 2 x M3 x 28mm Steel Button Head Cap Screws (Z-S1286)
• 1 x M3 X 3mm Set Screw (Z-S0124)

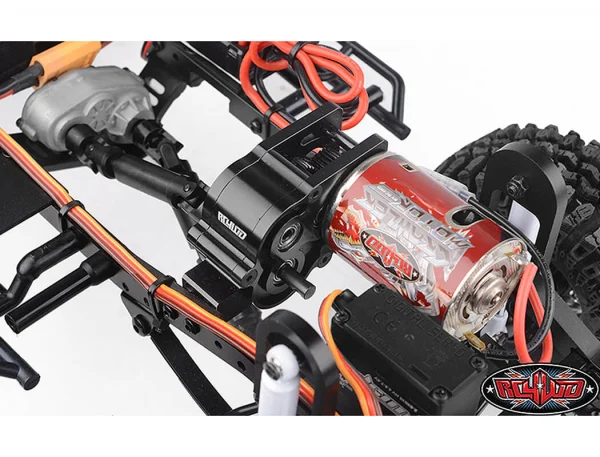

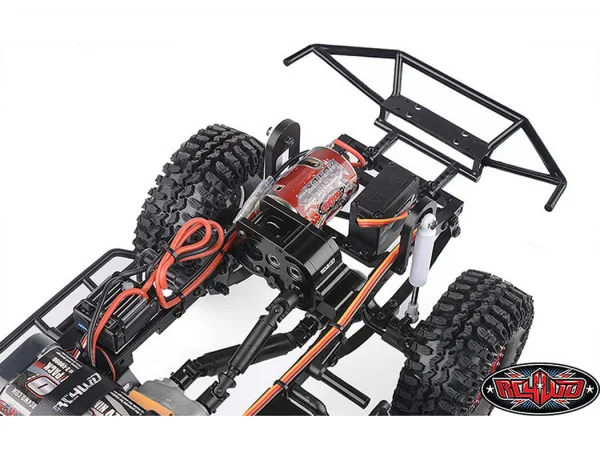

Suggested Compatibility

• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition) (Z-RTR0054)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• RC4WD Trail Finder 2 Truck Kit (Z-K0054)
• RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059)
