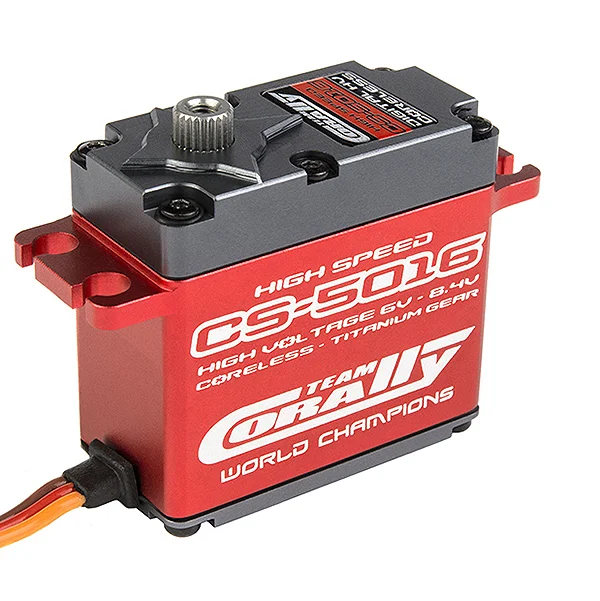

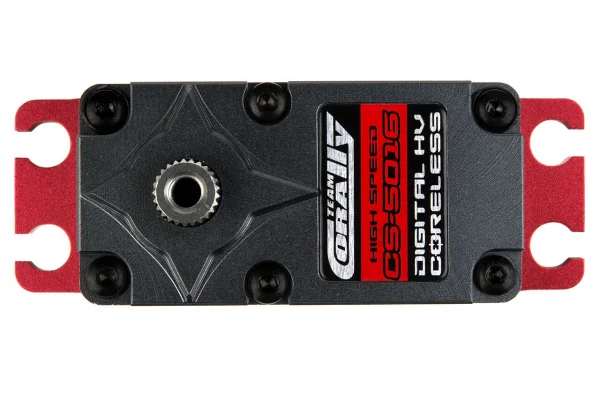

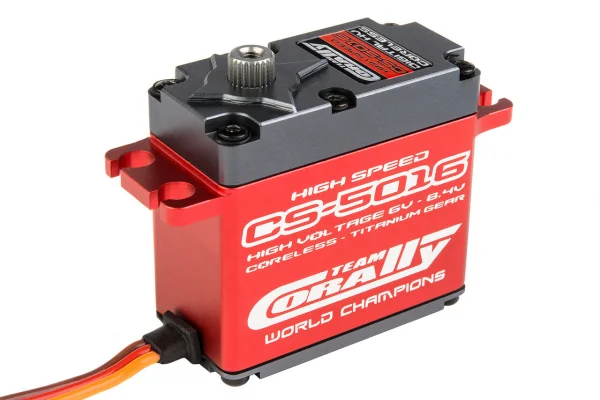

Corally Cs-5016 HV High Speed Servo - High Voltage -

Corally Cs-5016 HV High Speed Servo - High Voltage -

Brand: Corally

Part No: C-52000

£63.36 RRP £66.69

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

The Corally CS-5016 HV High Speed Servo delivers precise, race-focused control with a digital coreless motor, titanium gearing and a robust CNC-machined alloy case. Operating across a high-voltage range of 6.0–8.4V, it combines ultra-fast response with dependable torque in a standard-size footprint, ideal for performance-focused RC applications.

Engineered for durability and smooth operation, the CS-5016 features ball-raced support, a 25T spline and JR connector for straightforward installation. Part number C-52000.

Features

  • Full CNC machined alloy case
  • High Voltage operation (6.0–8.4V)
  • Titanium gears
  • Ball raced
  • Coreless motor
  • Ultra high speed and torque
  • Water resistant

Specifications

  • Servo technology: Digital Ultra High Voltage
  • Input voltage: 6.0–8.4V
  • Motor type: Coreless
  • Type/size: Standard
  • Case: CNC alloy
  • Gear material: Titanium
  • Bearings: Ball raced
  • Dimensions (L x W x H): 40.5 x 20.5 x 36.0 mm
  • Weight: 72 g
  • Spline size: 25T
  • Connector type: JR
  • Speed (60°): 0.07s @ 6.0V, 0.06s @ 7.4V, 0.05s @ 8.4V
  • Torque: 11.8 kg-cm @ 6.0V, 14.4 kg-cm @ 7.4V, 16.5 kg-cm @ 8.4V
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Are looking for some powerful control?

We have developed these servos with the racer in mind, ultimate digital power, precision and reliablity.

Features
  • Full CNC machined alloy case
  • High Voltage 6.0 - 8.4V
  • Titanium gears
  • Ball Raced
  • Coreless motor
  • Ultra high speed and torque
  • Water resistant
Specifications

Motor Type: Coreless Motor
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V - 8.4V
Weight (g): 72 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Titanium Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Height (mm): 36.0 mm
Servo Case: CNC Alloy
Servo Power - Torque Kg/cm: 16 - 25 Kg/cm
Servo Speed 60°/sec: 0.05 - 0.10 Sec/60°
Protection: Waterproof
Speed 60°/Sec @ 6.0V: 0.07 Sec/60°
Speed 60°/Sec @ 7.4V: 0.06 Sec/60°
Speed 60°/Sec @ 8.4V: 0.05 Sec/60°
Torque kg/cm @ 6.0V: 11.8 Kg/cm
Torque kg/cm @ 7.4V: 14.4 Kg/cm
Torque kg/cm @ 8.4V: 16.5 Kg/cm
Connector type: JR
Spline size: 25T Spline
Thermal Protection Temperature: Waterproof
Water Protection: Waterproof




Key Info:
  • Brand: Corally
  • Part No: C-52000
  • Barcode: 8718057120757
  • Fitment: Standard Part
