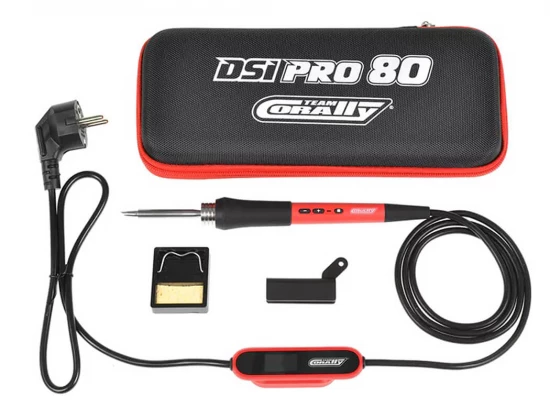

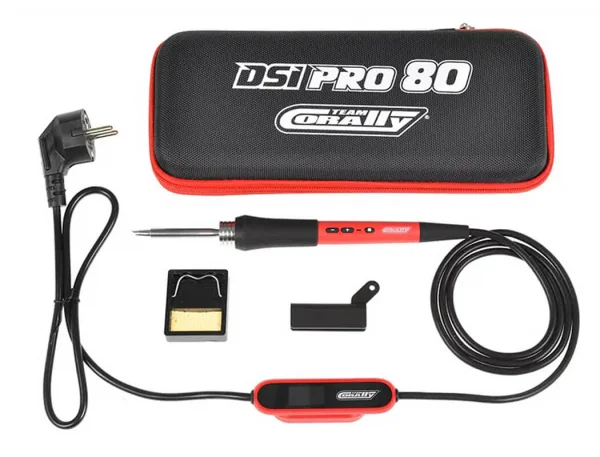

Corally Dsi Pro 80W Digital Soldering Iron EU Plug

The Corally DSI Pro 80W Digital Soldering Iron with EU plug delivers precise, stable heat in a compact, anti-static package. An integrated PTC active ceramic heater and digital PID control provide fast warm-up and consistent temperature across a wide 100–500°C range. The clear 0.96-inch OLED display, energy-saving functions and included accessories make it a practical choice for detailed soldering tasks. Part number: C-48530-EU.

Key Features

• 80 Watt output
• 0.96-inch OLED display
• Temperature range 100–500°C (212–932°F)
• Integrated PTC active ceramic heater
• 4.0 mm bevel / C-type soldering tip
• Anti-static design
• Auto-sleep function
• Auto-off safety function
• Energy saving function
• Temperature lock function
• Celsius / Fahrenheit temperature indication
• Soldering iron stand with cleaning foam
• Magnetic holder for display
• Handy carrying case

Specifications

• Display type: OLED
• Heating element: Integrated PTC active ceramic heater
• Input voltage: AC 230 V
• Output power: 80 W
• Included tip: 4.0 mm bevel / C-type
• Temperature compensation: ±100°C (±180°F)
• Temperature control: Digital PID
• Temperature indication: Celsius
• Temperature range: 100–500°C (212–932°F)
• Temperature stability: ±2°C > 200°C
• Tip ground impedance: <0.1 Ohm
• Tip ground voltage: <2 mV
• Power cable length: 1900 mm
• Soldering handle length: 1466 mm
• Soldering tip length: 59 mm
• Weight: 160 g
• Soldering tool type: Soldering iron
• Anti-static design: Yes
• Auto-off safety function: Yes
• Auto-sleep function: Yes
• Energy saving function: Yes
• Temperature calibration function: Yes
• Temperature locking function: Yes
