Corally Pista 805 Sens. 4-Pole Pan Car Special Motor 2150Kv

The Corally Pista 805 Sensored 4-Pole Pan Car Special Motor (C-61315) is engineered for 1/8 on-road competition, delivering a 2150Kv output in a robust 4268 form factor. Built for pan car specialists, this sensored brushless unit balances speed and control, providing precise setup options through adjustable timing and a high-efficiency 12-slot stator with 0.2 steel laminations.

With a 4-pole rotor and a wide 2S–4S Li-Po input range, the Pista 805 is tuned for consistent performance on high-grip circuits. Its 5.0 mm shaft and standardised 25.4 mm mounting pattern with M3/M4 options make installation straightforward on suitable 1/8 on-road platforms.

Key Specifications

• Application: 1/8 On-Road (Pan Car)
• Class: Modified
• Type: Brushless, Sensored
• KV (RPM/V): 2150
• Poles: 4-pole rotor
• Input Voltage Range: 2S–4S Li-Po
• Max Current: 130 A
• Watts: 2370 W
• No-Load Current (IO): 3.2 A
• Resistance: 0.01 Ω
• Stator: 12-slot with 0.2 steel laminations
• Timing: Adjustable
• Size ID: 4268
• Diameter: 42 mm
• Length: 68 mm
• Shaft Diameter: 5.0 mm
• Shaft Length: 19 mm

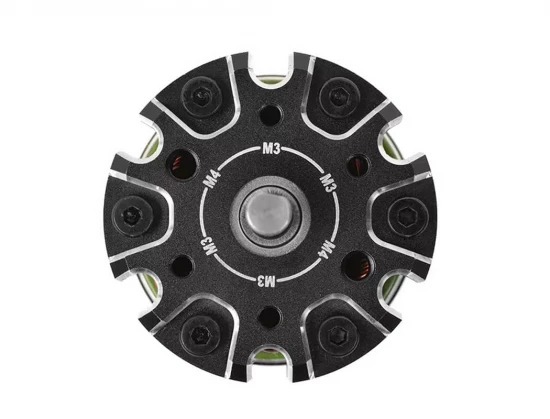

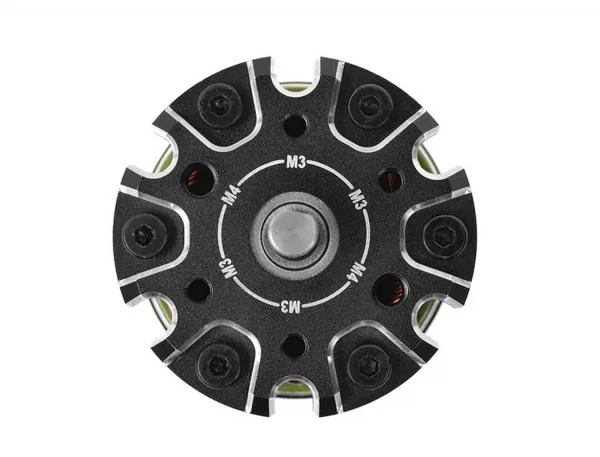

• Mounting: M3 / M4 @ 25.4 mm

Compliance

• IFMAR compliant
• BRCA compliant
• EFRA compliant
• ROAR compliant

Optimised for pan car racing, the Pista 805 pairs sensored control with adjustable timing to help dial in delivery to track conditions. Its construction supports efficient operation, while the 4268 dimensions and 5 mm output shaft align with typical 1/8 on-road hardware. For racers seeking a capable 2150Kv motor with competition-ready credentials, the Corally Pista 805 provides a focused specification for serious track use.
