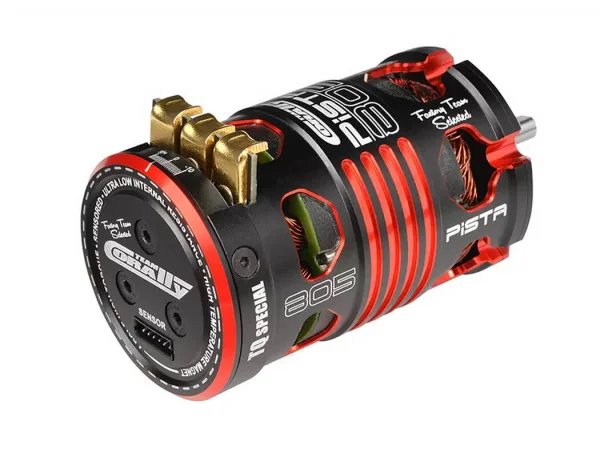

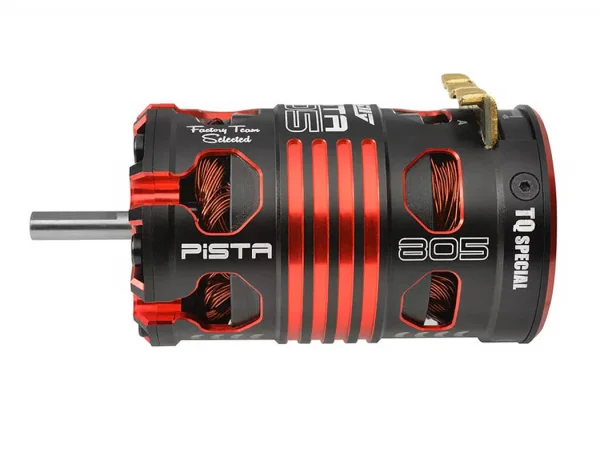

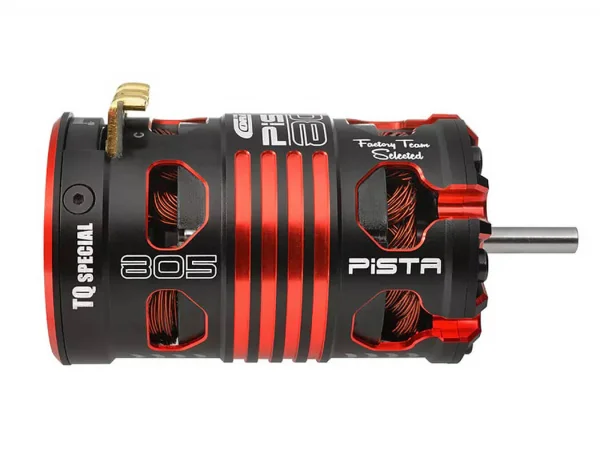

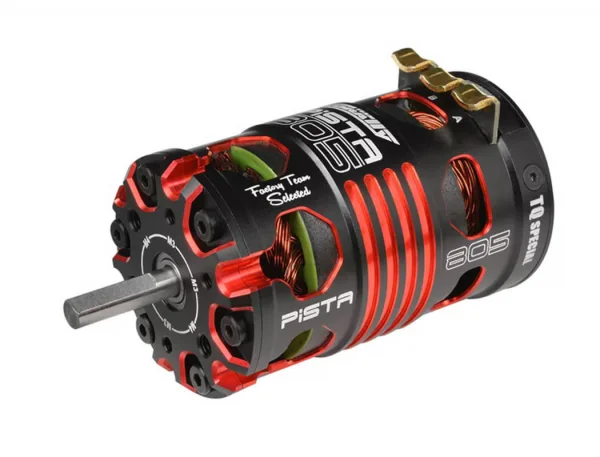

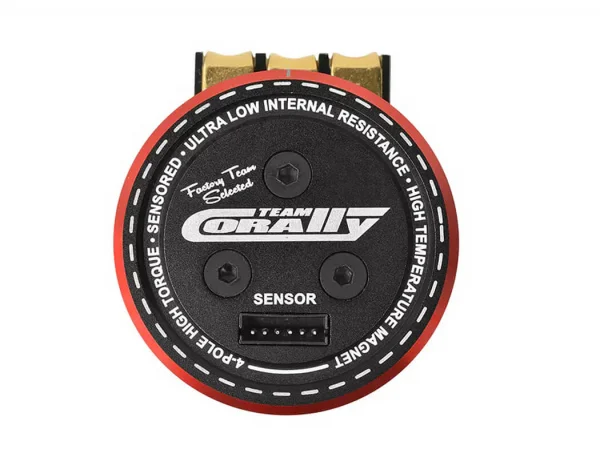

Corally Pista 805 Sensored 4- Pole Comp Brushless Motor 2700Kv

The Corally Pista 805 Sensored 4‑Pole Competition Brushless Motor (2700KV) delivers a focused blend of power and precision for serious 1/8 on‑road racing. Built around a 4268 can with sensored control and adjustable timing, it offers the tuning scope and consistency demanded by competitive drivers. As part of Team Corally’s racing line-up, this unit is compliant with IFMAR, BRCA, EFRA and ROAR regulations.

With a 2S–4S Li‑Po input range, a rated output of 2400W and a maximum current of 133A, the Pista 805 is engineered for high performance within strict class rules. The 12‑slot stator with 0.2 steel laminations, coupled with a 4‑pole rotor, provides a capable foundation for refined throttle response and strong track pace. Practical hardware details include a 5.0 mm shaft, M3/M4 mounting options at 25.4 mm spacing, and a compact 42 mm diameter by 68 mm length to suit typical 1/8 on‑road chassis layouts.

Whether you are optimising gearing or fine‑tuning timing for different circuits, the Pista 805’s sensored architecture and timing adjustability help you tailor performance to conditions. Part number C-61310 ensures you are selecting the correct Corally Pista 805 2700KV specification.

Key Specifications

• Application: 1/8 On‑Road
• Class: Modified
• Compliance: IFMAR, BRCA, EFRA, ROAR
• Type: Brushless, sensored
• Poles: 4‑pole rotor
• KV (RPM/V): 2700
• Input voltage: 2S–4S Li‑Po
• Max power: 2400 W
• Max current: 133 A
• No‑load current (Io): 3.8 A
• Resistance: 0.01 ohm
• Size ID: 4268
• Diameter: 42 mm
• Length: 68 mm
• Stator: 12‑slot, 0.2 steel laminations

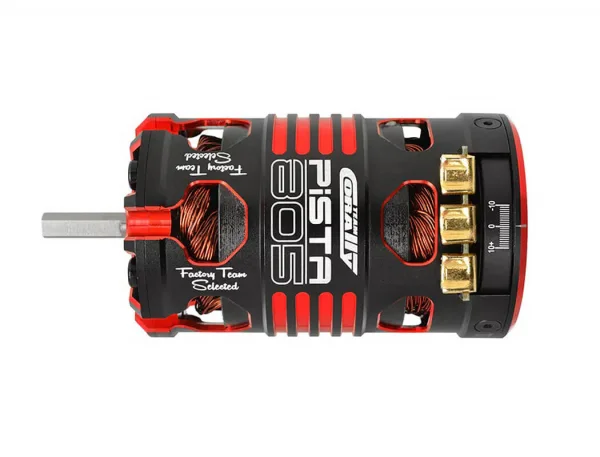

• Timing: Adjustable

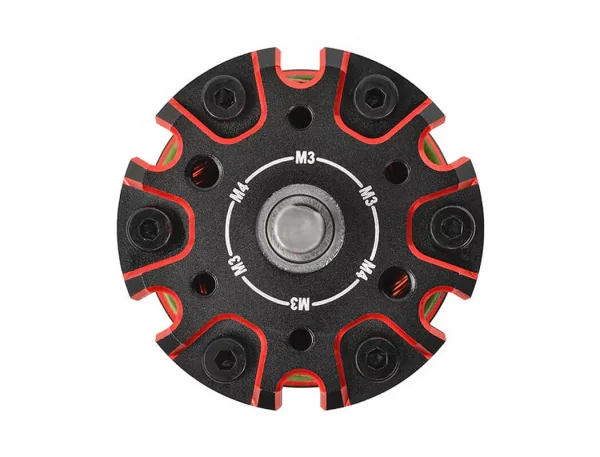

• Mounting holes: M3 / M4 @ 25.4 mm
• Shaft diameter: 5.0 mm
• Shaft length: 19 mm
• Part number: C-61310
