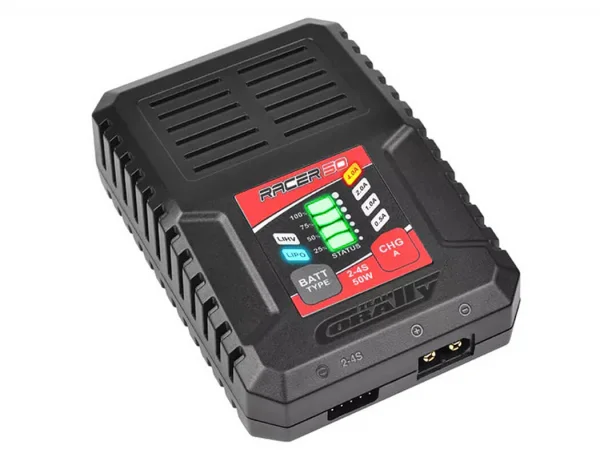

Corally Racer 50 AC 50W 2-4S Balance Charger (C-51020-UK)
Brand: Corally
Part No: C-51020-UK
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description

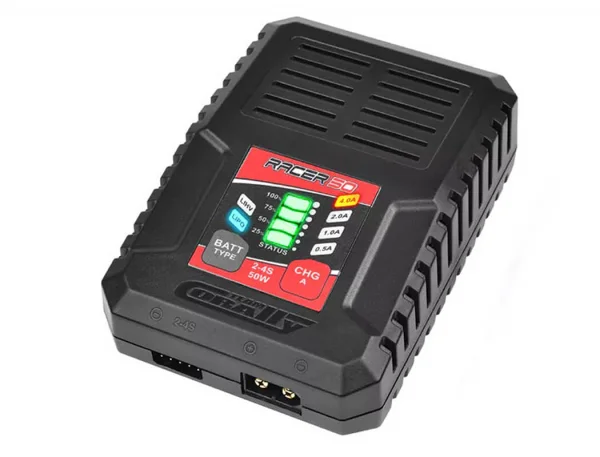

The Corally Racer 50 AC 50W 2–4S Balance Charger is a compact AC fast charger designed for LiPo and LiHV packs. Delivering up to 50W with selectable charge currents from 0.5A to 4A, it features automatic cell detection, an auto-start function and LED indicators for clear, real-time charge status. Corally part number C-51020-UK.
Key Features

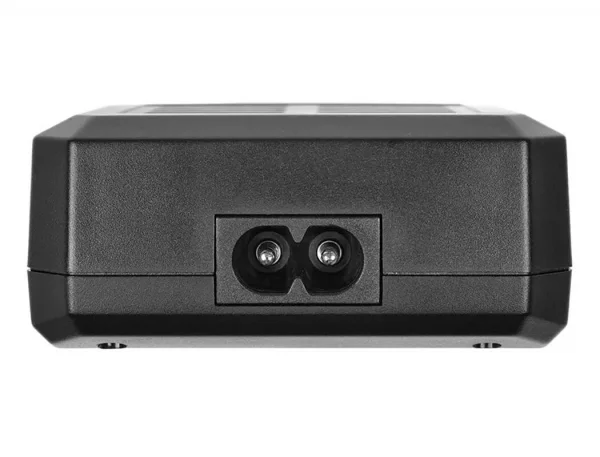

- AC input: 100–240V
- Charge power: up to 50W
- Supports 2–4S LiPo and LiHV batteries
- Automatic number of cells detection and auto-start
- Selectable charge current: 0.5 / 1 / 2 / 4A
- Balance current: 500mA

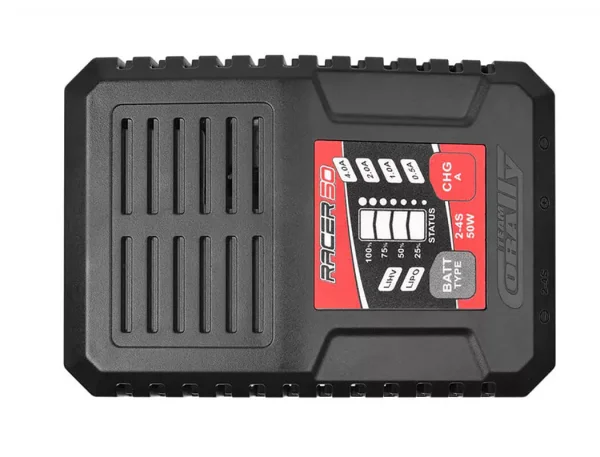

- LED real-time charge status indicator
- Multiple safety protections: over-current, over-voltage, short-circuit and reverse polarity
Specifications
- Type: AC Fast Charger
- Battery cell types: LiPo, LiHV
- Cells: 2–4S
- Input voltage: AC 100–240V, 50Hz
- Charge outputs: 1
- Output power: 50W (max)
- Charge current options: 0.5A / 1A / 2A / 4A
- Balance current: 0.5A
- Display: LED indicators
- Audible alarms: No
Dimensions & Weight
- Length: 107 mm
- Width: 75 mm
- Height: 35 mm
- Weight: 169 g

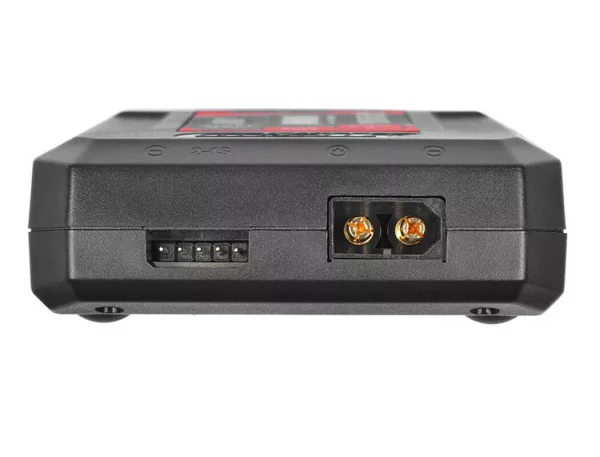

Note: 2–4S batteries with an XT60 connector can be connected directly. An adapter is required for batteries using other connector types.
Secured by Stripe
Corally Racer 50 Ac 50W 2-4S Balance Charger Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
- AC Input (V) 100-240V AC
- Charge power 50W
- For 2-4S LiPo-LiHV batteries
- Automatic nr of cells detection
- Auto-start function
- Balance current 500mA
- Selectable charge current up to 4.0A
- Real time charge status indicator
- Multiple safety protections
- Over-Current protection
- Over-Voltage protection
- Short-Circuit protection
This product is specially designed to support our customers' needs, with features that guarantee top quality and reliability.
Important Note: 2-4S batteries with XT60 connector can be connected directly. An adapter is required for batteries with other connectors.
SpecificationsCharger - Type
Type: AC Fast Charger
Suited for Battery - Cell Type: LiPo and LiHV
Nr of Cells: Li-xx 2 - 4 Cells
Display: LED Indicators
Charger - Specifications
Input Voltage (V): AC 100-240V - 50Hz
Charge Outputs: 1 x Charge Output
Output Power AC Total (Watt) Charge Power DC (Max. Watt): 50W
Charge Current (A): Selectable 0.5 - 1 - 2 - 4A
Balance Current (A): 0.5A
Charger - Safety
Audible Alarms: No
Over Current Protection: Yes
Reverse Polarity Protection: Yes
Charger - Dimensions
Length (mm): 107,00
Width (mm): 75,00
Height (mm): 35,00
Weight (g): 169,00
Key Info:
- Brand: Corally
- Part No: C-51020-UK
- Barcode: 8718057251680
