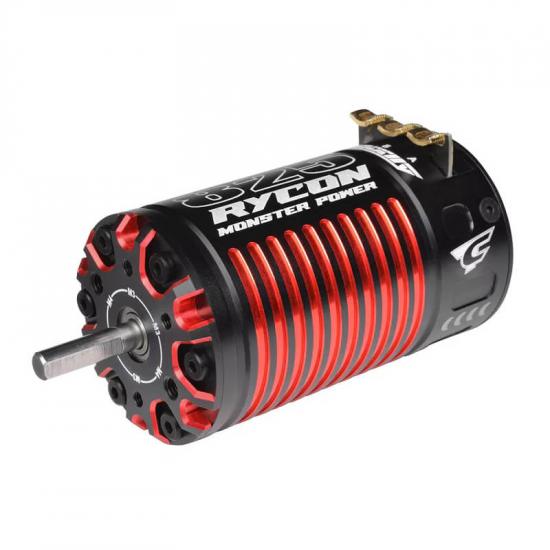

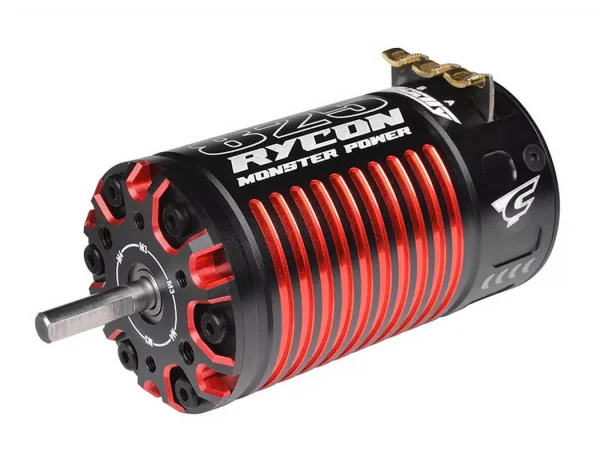

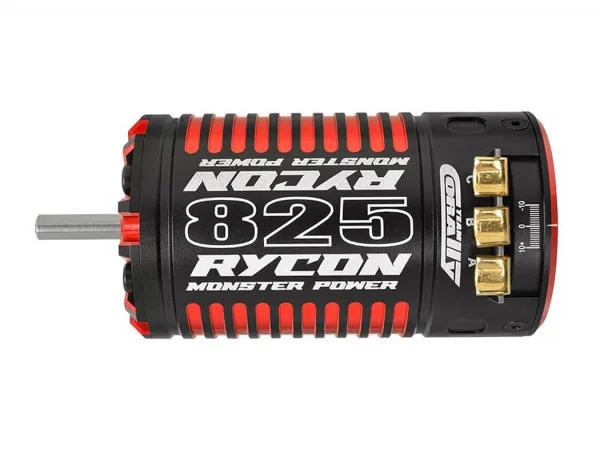

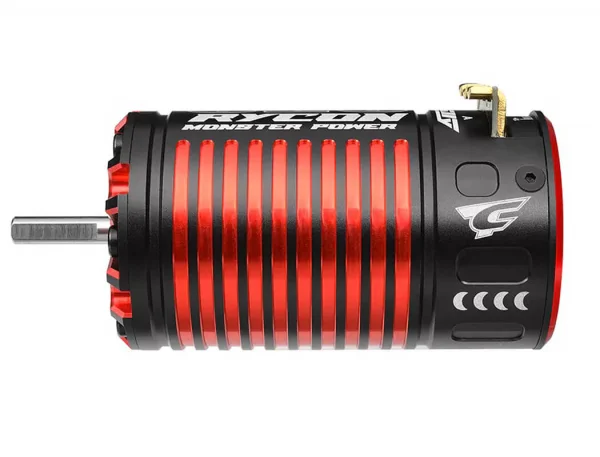

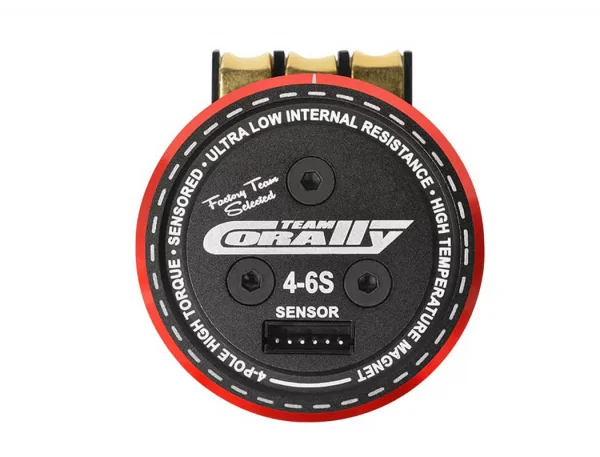

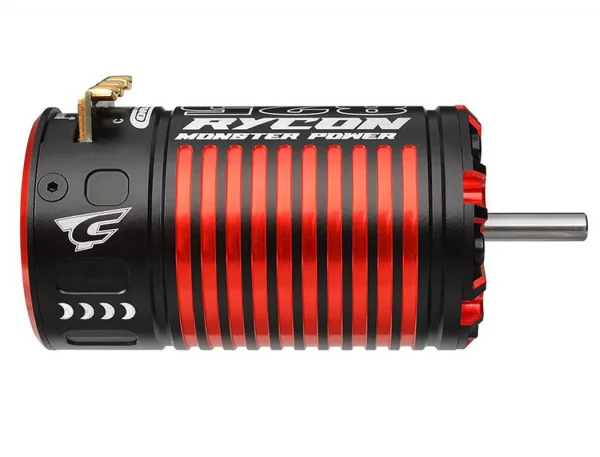

Corally Rycon 825 Sensored 4- Pole Comp Brushless Motor 1950Kv ** CLEARANCE **

The Team Corally Rycon 825 Sensored 4-Pole Brushless Motor (1950Kv), part number C-61321, delivers precise throttle control with strong torque and high efficiency. Its sensored design offers smooth power delivery for racing or off-road use, while the robust 4-pole rotor balances punch and top speed for dependable performance.

Built in the 4272 size with a 42mm diameter and 72mm can length, the Rycon 825 features a 12-slot stator with 0.2 steel laminations for low losses, plus adjustable timing to fine-tune power characteristics. Rated up to 2860W with a 114A max current and designed for 2S–6S Li-Po systems, it suits a wide range of high-performance 1/8 and 1/7 applications. Compliance with IFMAR, BRCA, EFRA and ROAR underscores its competition-ready credentials.

Practical hardware details include M3/M4 mounting holes on a 25.4mm pattern and a 5.0mm shaft (19mm length), making installation straightforward in many performance chassis. The 1950Kv wind provides a versatile balance for tracks, bashing spots and mixed-terrain running.

Key Specifications

• Kv: 1950Kv
• Motor type: Brushless, sensored
• Rotor: 4-pole
• Input voltage range: 2S–6S Li-Po
• Power: 2860W
• Max current: 114A
• No-load current (IO): 3.3A
• Resistance: 0.01 Ohm
• Size ID: 4272 (42mm diameter x 72mm length)
• Stator: 12-slot, 0.2 steel laminations
• Timing: Adjustable

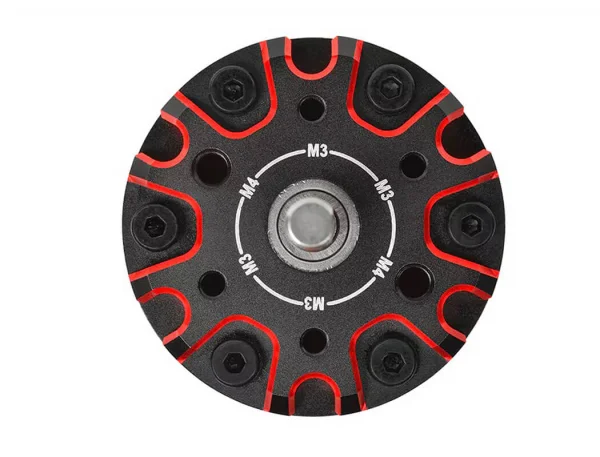

• Mounting holes: M3 / M4 @ 25.4mm
• Shaft: 5.0mm diameter, 19mm length
• Compliance: IFMAR, BRCA, EFRA, ROAR

Suggested Compatibility

• 1/8 Buggy
• 1/8 Truggy
• 1/8 Short Course Truck (SCT)
• 1/8 Monster Truck
• 1/7 GT car
• 1/8 GT / Rally Game
