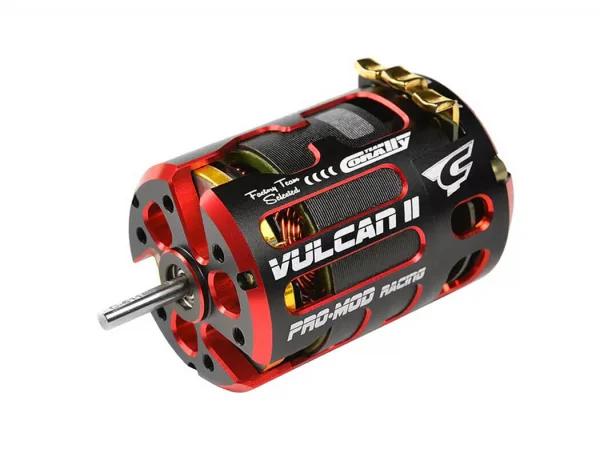

Corally Vulcan II Pro Modified Sens Comp Brushless Motor 3.5T

The Corally Vulcan II Pro Modified Sens Comp Brushless Motor 3.5T (C-61150) is a competition-focused, sensored 540-size motor engineered for 1S Li‑Po racing. Built to meet ROAR, BRCA, EFRA and IFMAR regulations, this 3.5-turn modified unit delivers a high 9350KV rating and up to 610W, with adjustable mechanical timing to fine-tune power delivery for different tracks and grip levels.

Key Specifications

• Type: Brushless, sensored; Modified class; 540 size
• KV: 9350 rpm/V; Turns: 3.5T
• Input voltage: 1S Li‑Po
• Compliance: ROAR / BRCA / EFRA / IFMAR
• Electrical: Max current 133 A; No‑load current (IO) 7.9 A; Resistance 0 Ω
• Power: 610 W
• Stator: 3‑slot with 0.2 mm steel laminations
• Rotor: 2‑pole; OD 12.3 mm x ID 5.0 mm x L 24.5 mm (ref C-16180)
• Size: Diameter 35.8 mm; Length 52 mm
• Shaft: 3.17 mm diameter x 13 mm length
• Mounting: M3 holes @ 25.4 mm spacing
• Tuning: Adjustable mechanical timing

Suggested Compatibility

• 1/12 pan car platforms using 540‑size motors
• Chassis with M3 mounting at 25.4 mm and 3.17 mm pinion bores
• Competition ESCs suitable for 1S Li‑Po and high‑KV modified motors (accounting for up to 133 A)

The Vulcan II Pro 3.5T combines a 2‑pole rotor with a 3‑slot, 0.2 mm lamination stator to support efficient, responsive performance in modified classes. Its sensored design ensures precise throttle control and repeatable timing settings, while the adjustable endbell lets you tailor balance and efficiency to track demands. If you are targeting top-tier 1/12 pan car racing on 1S Li‑Po, the C-61150 specification provides a focused blend of high KV, compact 540 dimensions, and sanctioned‑body compliance.
